£88.86
excl. VAT
£106.63 incl. VAT
£106.63
incl. VAT
£88.86 excl. VAT
In stock
Expected to ship on Monday 21 September
Product details
| Connection 1, type | Hose end |
|---|---|
| Connection 1, type code | SFS |
| Connection 2, diameter | 1-1/2 Inch |
| Connection 2, type | Flange |
| Connection no 1 diameter | 1-1/2 Inch |

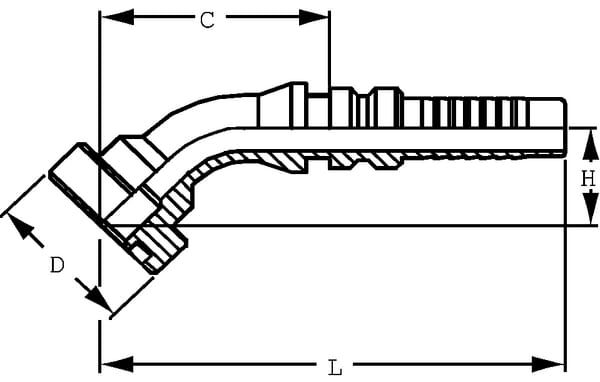

| DConnection no 1 diameter | 40 mm |
| DFlange outside diameter | 63.5 mm |
| Flange standard pressure series | 6000 |
| Flange thickness | 12.57 mm |
| Includes | Insert, Without OVP-ring or O-ring |
| ISO standard | 6162 |
| LConnection no 1 center to end distance | 136.3 mm |
| Material | Steel |

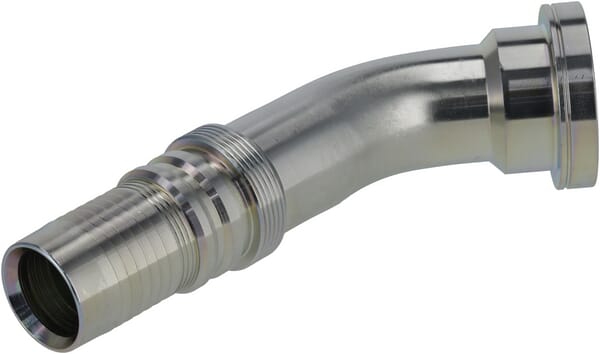

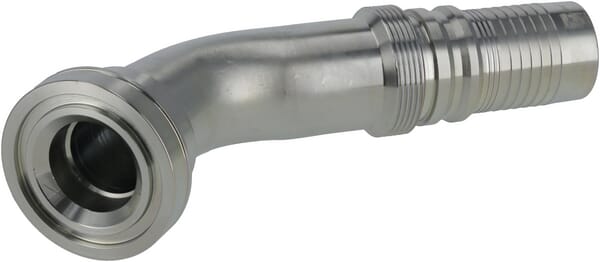

| Product details | Alfagomma Evolution G2, Anchoring by means of interlock system, OVP-ring or O-ring seal, Heavy duty machines with high operating and peak pressures, Hydrostatic drives, Series H17, Always consult the most up to date press tables, see downloads at the bottom of each web page |
| Pros | Press-fitting with heavy-duty anti-slip protection |
| Series | SFSH |
| Shape | Elbow 45° |
| Surface treatment | White passivated, Zinc-plated |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1284 g |
| Dimensions | 225 × 65 × 65 mm |
| Dangerous goods | No |
You might also like
BPA000336362
Alfagomma Insert DN20-1 5/16-UNF-45° PA202145
£17.08 excl.
£20.50 incl.
In stock
Expected to ship on Monday 21 September
BPA000338124
Alfagomma Insert DN06-11/16 ORFS PCV611
£5.29 excl.
£6.35 incl.
In stock
Expected to ship on Monday 21 September
BPA000358444
Alfagomma Ferrule diameter 22x24.7mm DN6 Steel / zinc-plated SFAD106
£1.09 excl.
£1.31 incl.
In stock
Expected to ship on Monday 21 September

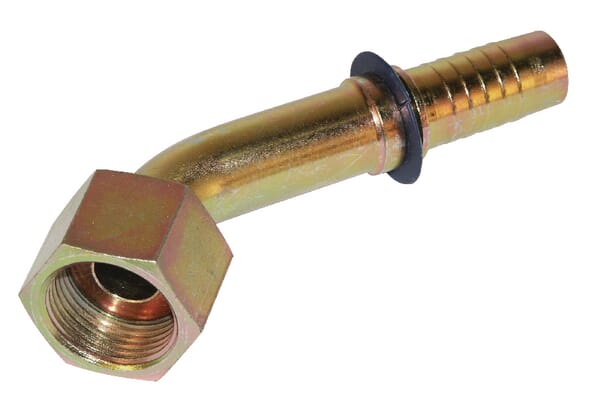

BPA000337601
Alfagomma Insert DN32-1"11/16 ORFS-45° PAV322745
£50.20 excl.
£60.24 incl.
In stock
Expected to ship on Monday 21 September
BPA000350150

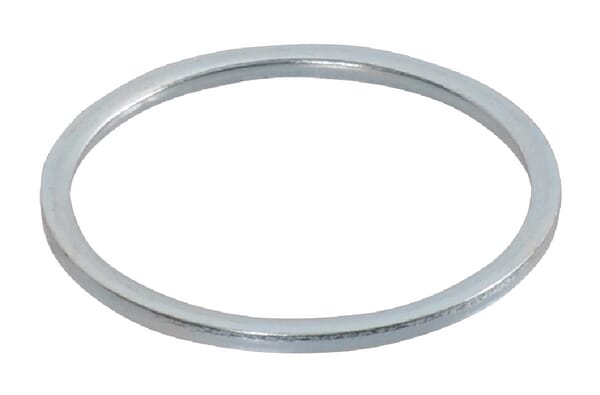

Alfagomma Lock washer diameter 6.35 diameter 1/4" DIN 988 RRB04
