£13.13
excl. VAT
£15.76 incl. VAT
£15.76
incl. VAT
£13.13 excl. VAT
In stock
Expected to ship on Friday 18 September

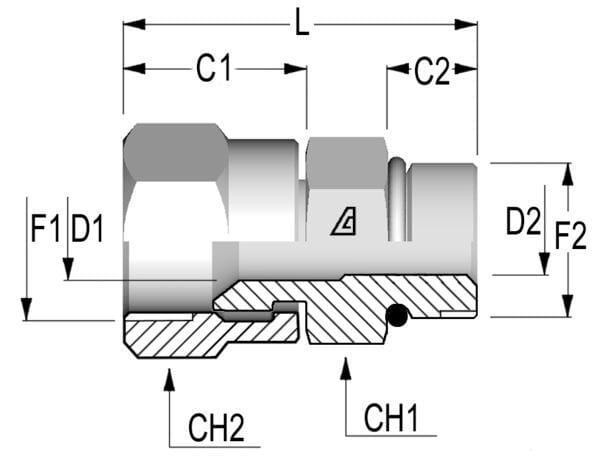

Product details
| Body height | 52.5 mm |
|---|---|
| Cone angle | 74 ° |
| Connection 1, thread diameter | 1-1/16 Inch |
| Connection 1, thread type | JIC |
| Connection 1, type | Swivel nut |
| Connection 1, type - male/female | Female |
| Connection 2, thread diameter | 1/2 Inch |
| Connection 2, thread length | 12 mm |
| Connection 2, threads per inch | 14 |
| Connection 2, thread type | BSP |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection no 1 threads per inch | 12 |
| Material | Steel |
| Max working pressure | 190 BAR |
| Product details | For pipe with 37º (74º) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514. Connection thread on the 37º cone side is UNF in accordance with ANSI |
| Series connection 1 | n/a |
| Shape | Straight |
| Surface treatment | Galvanised |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 150 g |
| Dimensions | 60 × 35 × 37 mm |
| Dangerous goods | No |
You might also like
BPA000336524
Alfagomma Insert DN13-13/16 ORFS PAV1313
£3.28 excl.
£3.94 incl.
In stock
Expected to ship on Friday 18 September

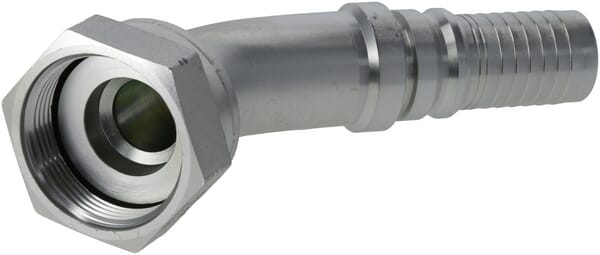

BPA000251385
