£15.04
excl. VAT
£18.05 incl. VAT
£18.05
incl. VAT
£15.04 excl. VAT
In stock
Expected to ship on Friday 18 September

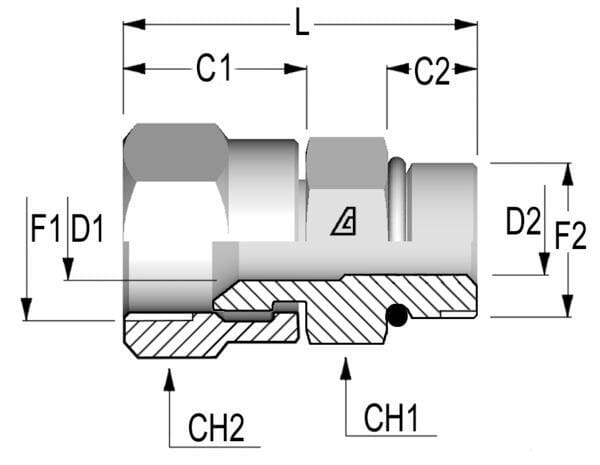

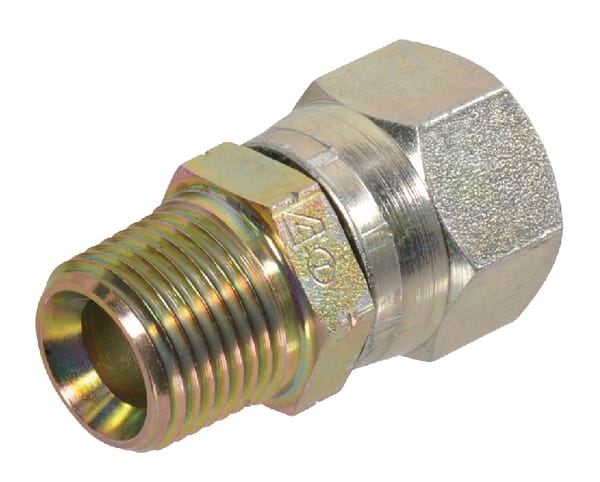

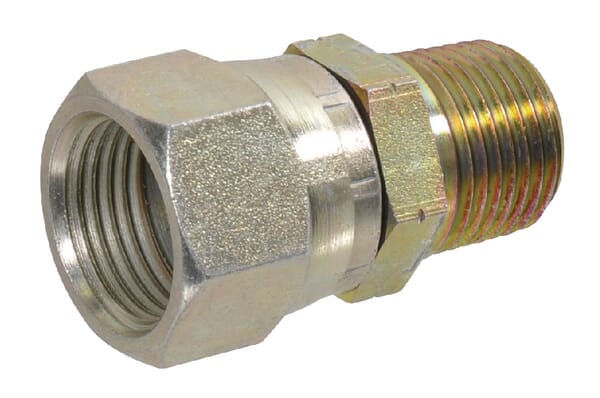

Product details
| C2Connection no 1 thread length | 26 mm |
|---|---|
| Cone angle | 74 ° |
| Connection 1, thread diameter | 7/8 Inch |
| Connection 1, thread type | JIC |
| Connection 1, type | Swivel nut |
| Connection 1, type - male/female | Female |
| Connection 2, thread diameter | 1/2 Inch |
| Connection 2, thread length | 18.5 mm |
| Connection 2, threads per inch | 14 |
| Connection 2, thread type | NPT |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection no 1 threads per inch | 14 |
| Material | Steel |
| Max working pressure | 280 BAR |
| Product details | For standpipes 37º (74º) against cone and inserts with UNF/JIC fittings acc. SAE I 514, Cone according to UNF ANSI |
| Series connection 1 | n/a |
| Shape | Straight |
| Surface treatment | Galvanised |
| Total length | 49.5 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 142 g |
| Dimensions | 57 × 26 × 26 mm |
| Dangerous goods | No |
You might also like
BPA000310721
Alfagomma Air hose 25mm 20bar yellow LS185AK25
£7.97 excl.
£9.56 incl.
In stock
Expected to ship on Friday 18 September
BPA000337890
Alfagomma Insert DN13-7/8 UNF PC1314
£2.82 excl.
£3.38 incl.
In stock
Expected to ship on Friday 18 September
BPA000252947

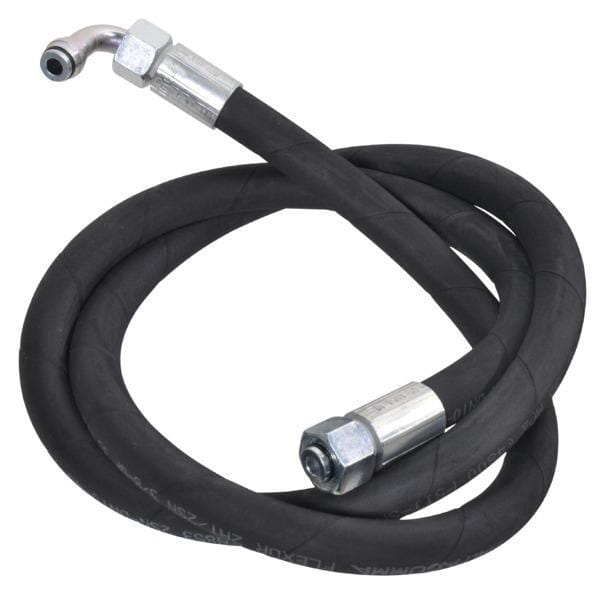

Alfagomma Hydraulic Hose complete DN13.2700-90° DKLO13270090
£46.48 excl.
£55.78 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000326171

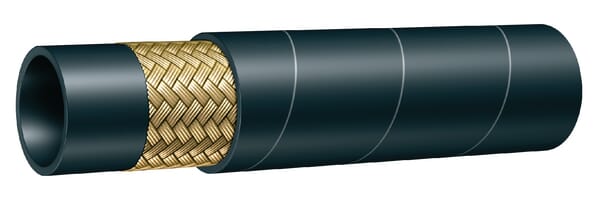

Alfagomma Hydraulic hose EN853-1SN-DN06 NSTHF6
£4.73 excl.
£5.68 incl.
In stock
Expected to ship on Friday 18 September
BPA000253003

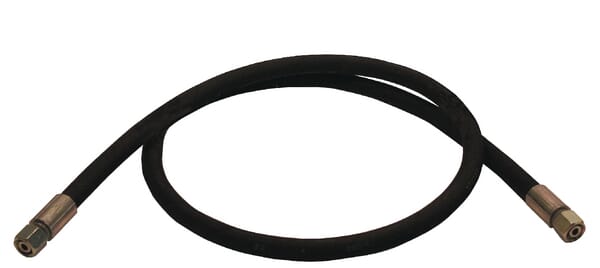

Alfagomma Hydraulic hose DN06 4000mm DKLO64000
£39.50 excl.
£47.40 incl.
In stock
Expected to ship on Friday 18 September
BPA000342834
Alfagomma Insert DN08-DN08 PSVB88
£3.80 excl.
£4.56 incl.
In stock
Expected to ship on Friday 18 September
Recently viewed
Free shipping
BPA000143341

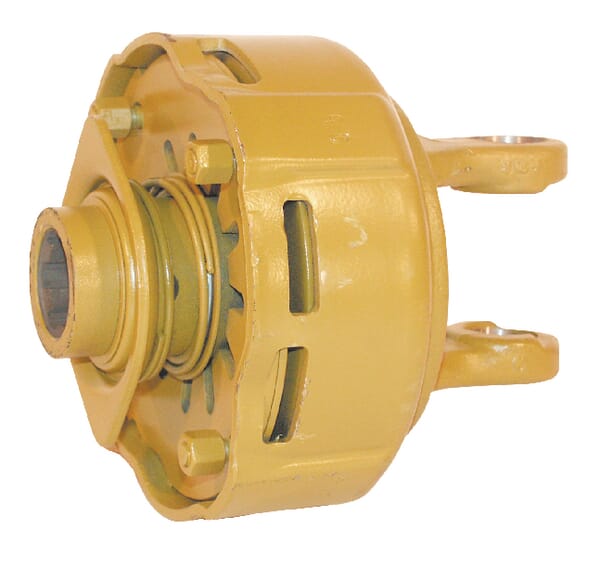

Walterscheid Friction clutch W2300 K92/4 105daNm 5621816105
£595.80 excl.
£714.96 incl.
In stock
Expected to ship on Friday 18 September
BPA000292673
Kverneland Radial Shaft Seal KG00022200
£6.63 excl.
£7.95 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000282928
Unbranded Radio mounting, 1x DIN housing GX356001
£25.23 excl.
£30.28 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000376025

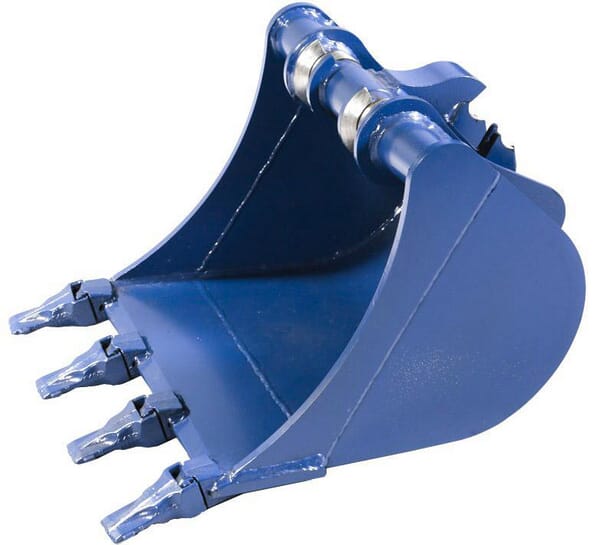

Klac Backhoe bucket M0/02 450mm Morin type with Esco teeth v13 TS02045AD6B
£834.00 excl.
£1,000.80 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000216125
Kverneland Special screw d25mm M16x1,5 r A139421700
£21.43 excl.
£25.72 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000187296
Kramp Joint of lower lever right diameter 37.5 C-385 87450080N
£17.21 excl.
£20.65 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000341136
Amphenol Potentiometer 10K 0.25W 1-Turn POTM10K025W1T
£25.32 excl.
£30.39 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000169533
SKF Deep groove ball bearing 15x24x5mm 750061802
£20.39 excl.
£24.47 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000367065

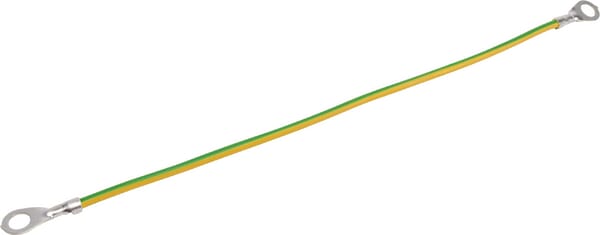

Rittal SZ Earth straps 4mm² M8-M8-300 P005 SZ2567000
