£38.15
excl. VAT
£45.78 incl. VAT
£45.78
incl. VAT
£38.15 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

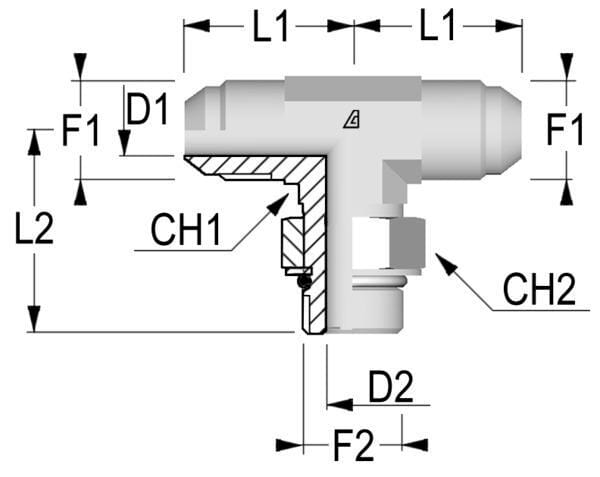

| CH1Connection no 1 wrench size | 33.0 mm |
|---|---|
| CH2Connection 3, wrench size | 41.0 mm |
| Connection 1, thread diameter | 1-5/16 Inch |
| Connection 1, thread type | UNF |
| Connection 1, type | Thread |
| Connection 2, thread diameter | 1-5/16 Inch |
| Connection 2, thread type | UNF |
| Connection 2, type | Thread |
| Connection 3, thread diameter | 1-5/16 Inch |
| Connection 3, thread type | UNF |
| Connection 3, type | Thread |
| L1Connection centre to insert distance | 46.1 mm |
| L2Connection no 1 center to end distance | 50.4 mm |
| Material | Steel |
| Pipe diameter | 1 Inch |
| Product details | For pipe with 37° (74°) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514, Connection thread on the 37º cone side is UNF in accordance with ANSI |

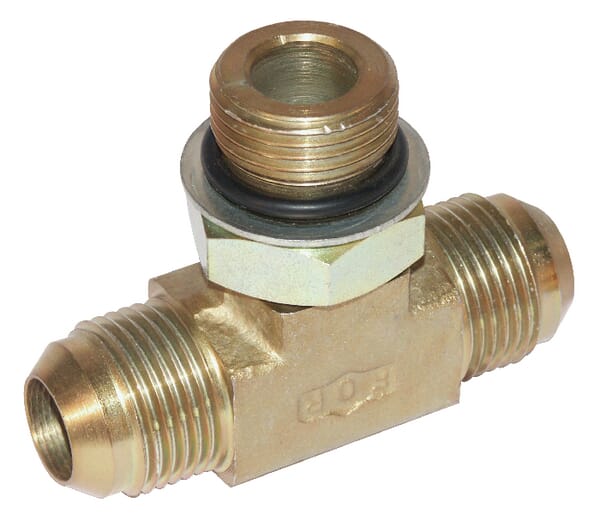

| Shape | Tee (T) |
| Surface treatment | Galvanised |
| Unit | Each |
| Working pressure | 190 BAR |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 525 g |
| Dimensions | 98 × 80 × 45 mm |
| Dangerous goods | No |
You might also like
BPA000252897

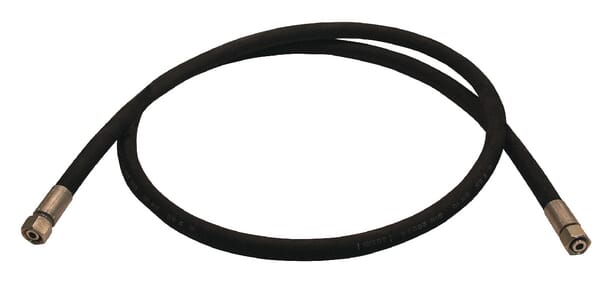

Alfagomma Hydraulic hose DN10 3000mm DKLO103000
£45.29 excl.
£54.35 incl.
In stock
Expected to ship on Monday 21 September
BPA000358411

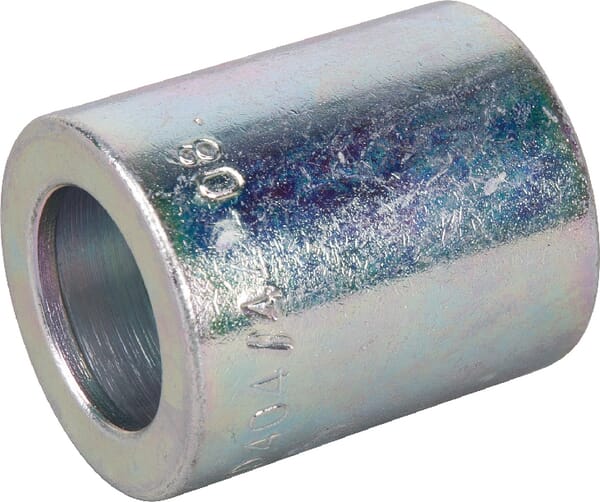

Alfagomma Ferrule diameter 29x37.7mm DN13 Steel / zinc-plated / white passivated SFA4S13
£2.15 excl.
£2.58 incl.
In stock
Expected to ship on Monday 21 September
BPA000253133

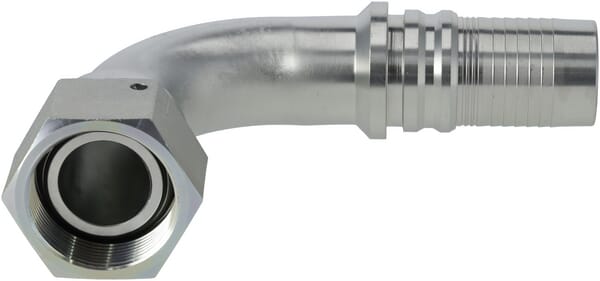

Alfagomma Swage coupling 4SH-DN40-1.1/2" BSP-90° DKRH402490G2
£77.68 excl.
£93.22 incl.
In stock
Expected to ship on Monday 21 September
BPA000358767
Alfagomma Swage coupling 4SH-DN25 with flange diameter 54,0mm 90° H130 SFSH252090H130G2
£82.32 excl.
£98.78 incl.
In stock
Expected to ship on Monday 21 September
BPA000358731
Alfagomma Insert NS-DN40-flange diameter 63,5 45 SUPERCAT SFSCNS402445G2
£58.67 excl.
£70.40 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000393499

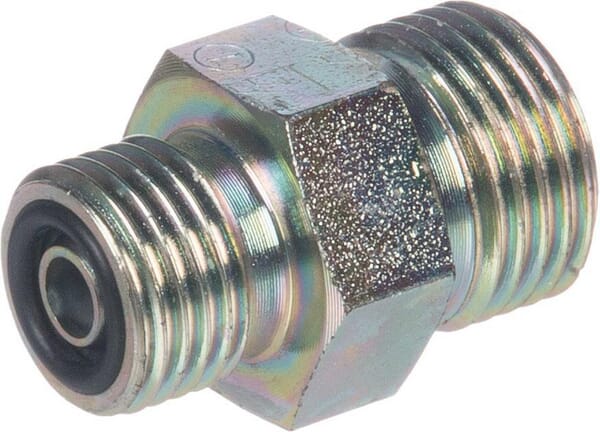

Alfagomma Adaptor 11/16x9/16ORFS VNO1109
