£17.93
excl. VAT
£21.52 incl. VAT
£21.52
incl. VAT
£17.93 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details

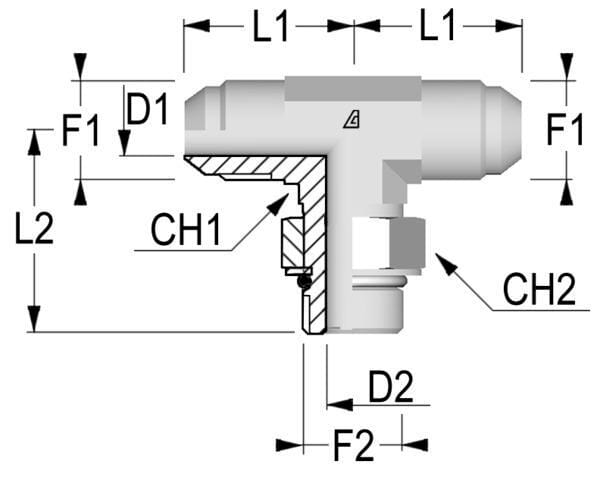

| CH1Connection no 1 wrench size | 14.0 mm |
|---|---|
| CH2Connection 3, wrench size | 19.0 mm |
| Connection 1, thread diameter | 9/16 Inch |
| Connection 1, thread type | UNF |
| Connection 1, type | Thread |
| Connection 2, thread diameter | 9/16 Inch |
| Connection 2, thread type | UNF |
| Connection 2, type | Thread |
| Connection 3, thread diameter | 9/16 Inch |
| Connection 3, thread type | UNF |
| Connection 3, type | Thread |
| L1Connection centre to insert distance | 27.5 mm |
| L2Connection no 1 center to end distance | 30.2 mm |
| Material | Steel |
| Pipe diameter | 3/8 Inch |
| Product details | For pipe with 37° (74°) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514, Connection thread on the 37º cone side is UNF in accordance with ANSI |
| Shape | Tee (T) |
| Surface treatment | Galvanised |
| Unit | Each |
| Working pressure | 380 BAR |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 76 g |
| Dimensions | 60 × 45 × 20 mm |
| Dangerous goods | No |
You might also like

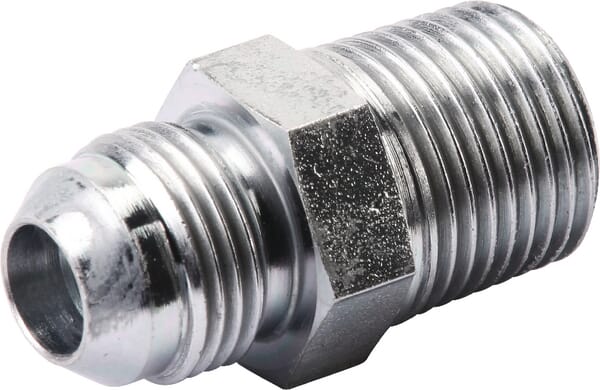

BPA000278986
Alfagomma Adaptor FJ3/4-MBSPT1/2 FMBUT1208
£2.96 excl.
£3.55 incl.
In stock
Expected to ship on Tuesday 22 September

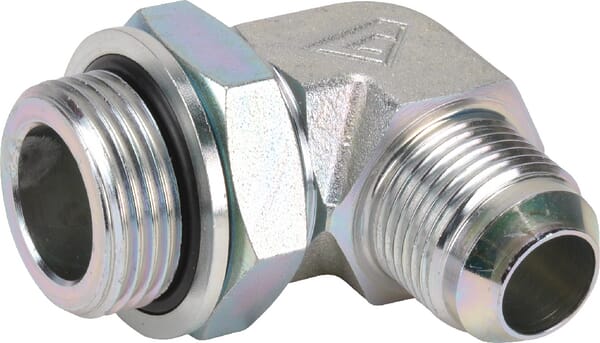

BPA000298810
Alfagomma Elbow coupling 7/8 JIC x 1/2 BSP KIB1408
£11.46 excl.
£13.75 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping

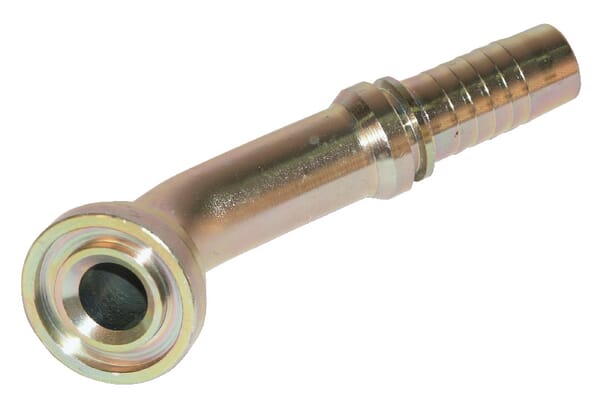

BPA000343772
Alfagomma Insert with flange DN50-diameter 71.3mm-45° PFL503245
£113.59 excl.
£136.31 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000343727
Alfagomma Insert with flange DN20-diameter 38.1mm-30° PFL201230
£26.33 excl.
£31.60 incl.
In stock
Expected to ship on Tuesday 22 September

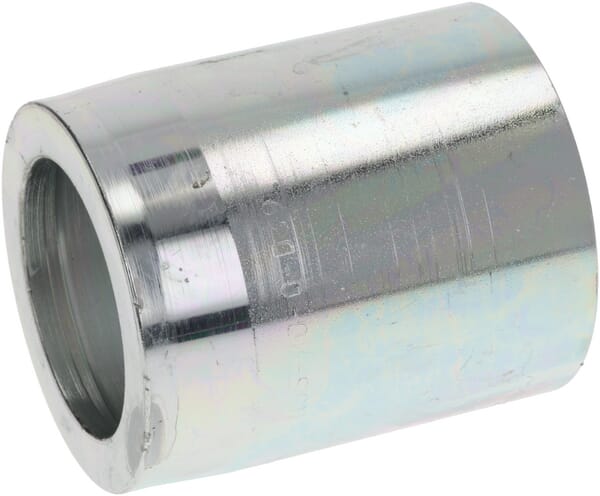

BPA000358495
Alfagomma Ferrule NS DN32 SFANSS32G2
£13.83 excl.
£16.60 incl.
In stock
Expected to ship on Tuesday 22 September

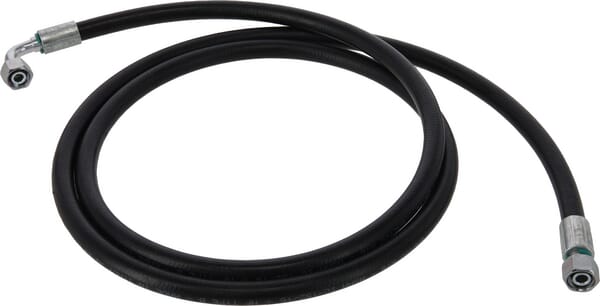

BPA000252890
