£21.76
excl. VAT
£26.11 incl. VAT
£26.11
incl. VAT
£21.76 excl. VAT
In stock
Expected to ship on Friday 18 September

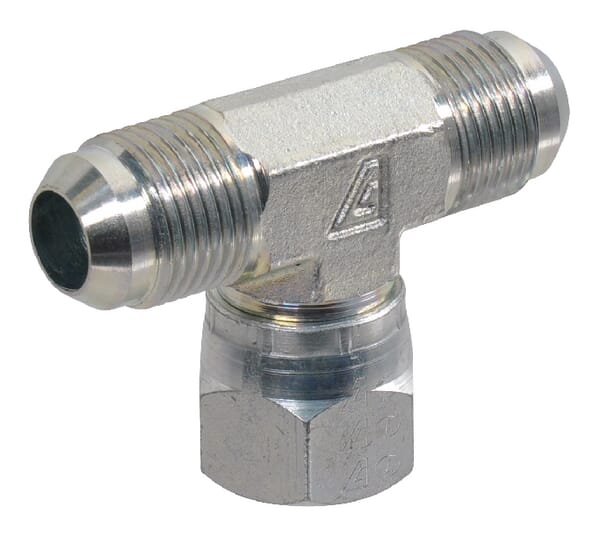

Product details

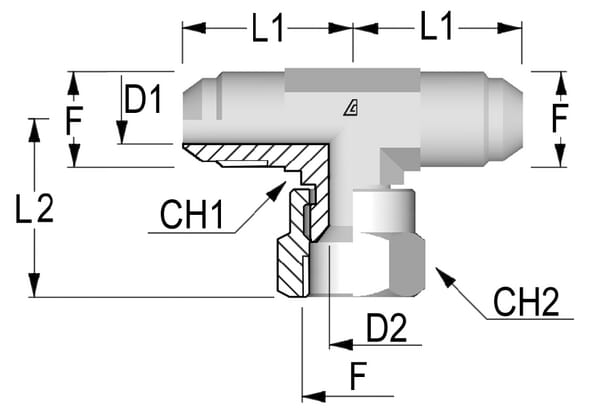

| CH1Connection no 1 wrench size | 22.0 mm |
|---|---|
| CH2Connection 3, wrench size | 27.0 mm |
| Connection 1, thread diameter | 7/8 Inch |
| Connection 1, thread type | UNF |
| Connection 1, type | Thread |
| Connection 2, thread diameter | 7/8 Inch |
| Connection 2, thread type | UNF |
| Connection 2, type | Thread |
| Connection 3, thread diameter | 7/8 Inch |
| Connection 3, thread type | UNF |
| Connection 3, type | Thread |
| D1Pipe diameter | 5/8 Inch |
| L1Connection centre to insert distance | 37 mm |
| L2Connection no 1 center to end distance | 41.5 mm |
| Long description | Technical information:, For standpipes 37º (74º) against cone and inserts with UNF/JIC fittings acc. SAE I 514. Cone acc. To UNF ANSI. |
| Material | Steel |
| Pipe diameter range | 14-16 mm |
| Shape | Tee (T) |
| Surface treatment | Galvanised |
| Unit | Each |
| Working pressure | 280 BAR |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 224 g |
| Dimensions | 80 × 55 × 30 mm |
| Dangerous goods | No |
You might also like
BPA000336324

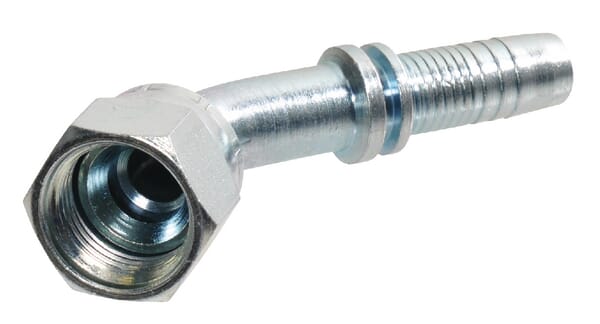

Alfagomma Insert DN13-1 1/16-UNF-45° PA131745
£11.97 excl.
£14.36 incl.
In stock
Expected to ship on Friday 18 September
BPA000336302
Alfagomma Insert DN13-3/4-UNF-90° PA131290
£5.09 excl.
£6.11 incl.
In stock
Expected to ship on Friday 18 September
BPA000252994

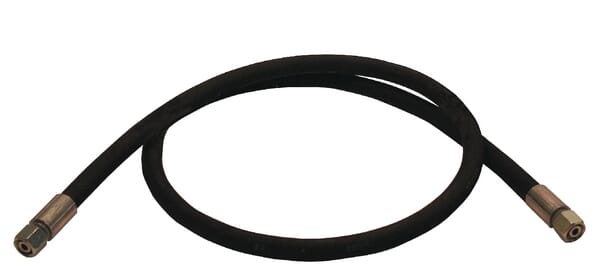

Alfagomma Hydraulic hose DN06 2800mm DKLO62800
£27.48 excl.
£32.98 incl.
In stock
Expected to ship on Friday 18 September
BPA000343996

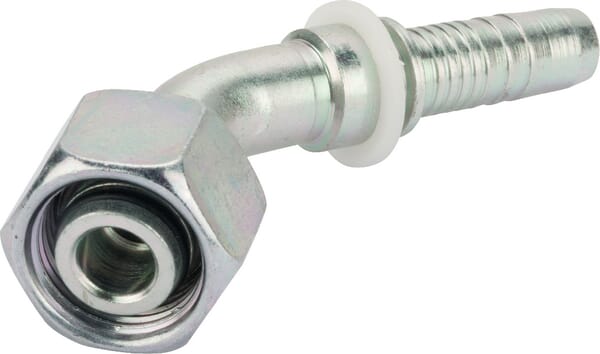

Alfagomma Insert DN10-M18x1.5-12L-45° PGLO101845
£3.26 excl.
£3.91 incl.
In stock
Expected to ship on Friday 18 September
BPA000252833

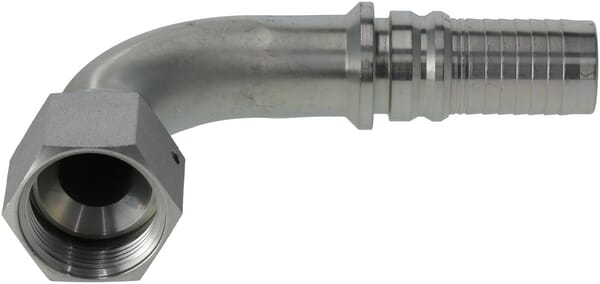

Alfagomma Swage coupling 4SH-DN25-1.5/16" UNF-90° DKJH252190G2
£37.42 excl.
£44.90 incl.
In stock
Expected to ship on Friday 18 September
BPA000241598

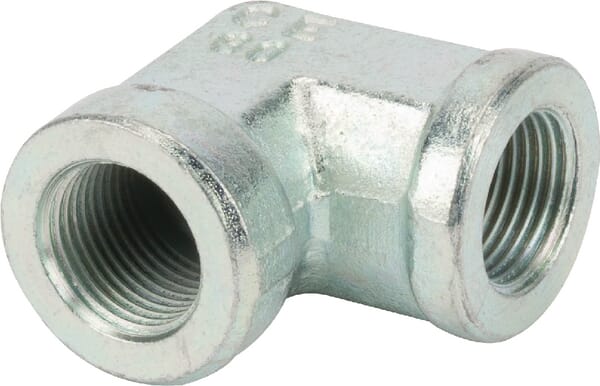

Alfagomma Bend, female thread, BSPT 3/8" CGM38GF38
£12.76 excl.
£15.31 incl.
In stock
Expected to ship on Friday 18 September
Recently viewed
BPA000085505
Glaser Dana Rocker cover gasket Case - IH 3138688R2N
£6.26 excl.
£7.51 incl.
In stock
Expected to ship on Friday 18 September
BPA000348910

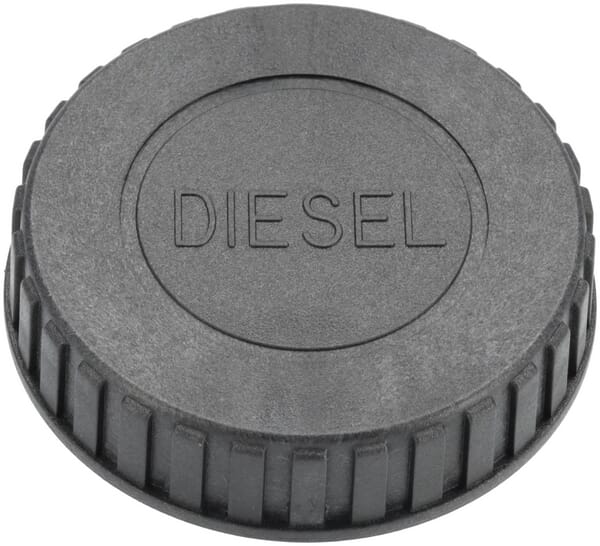

Kubota Fuel Filler Cap RG24851120
£81.03 excl.
£97.24 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000231946

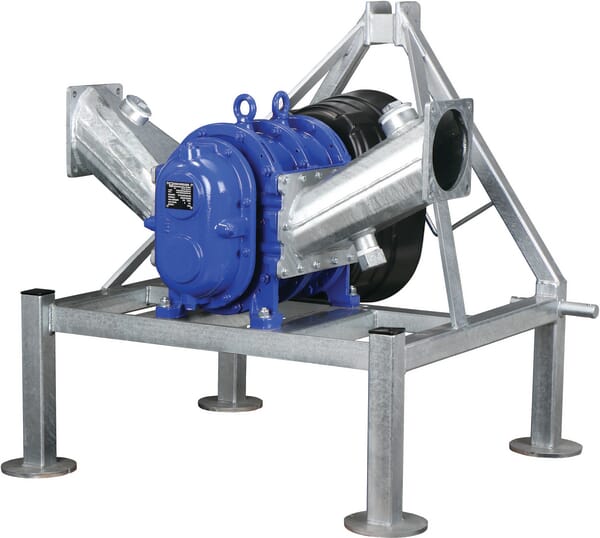

Vogelsang Rotary lobe pump R116-240S+frame APK0000187
