£2,698.23
excl. VAT
£3,237.88 incl. VAT
£3,237.88
incl. VAT
£2,698.23 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September

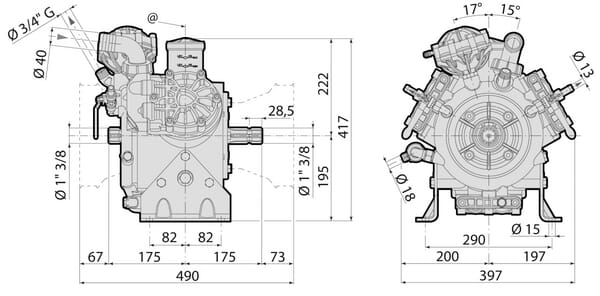

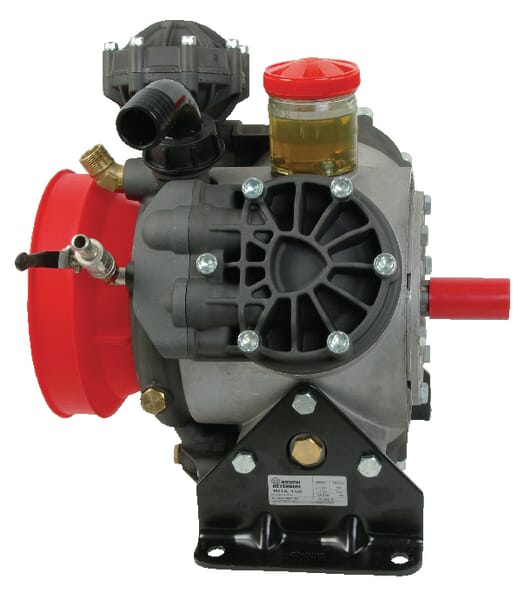

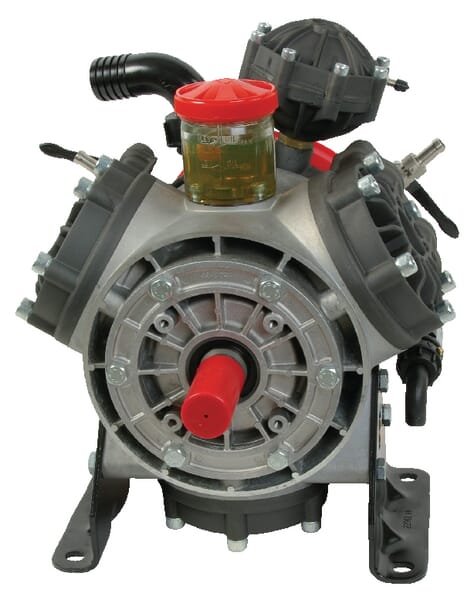

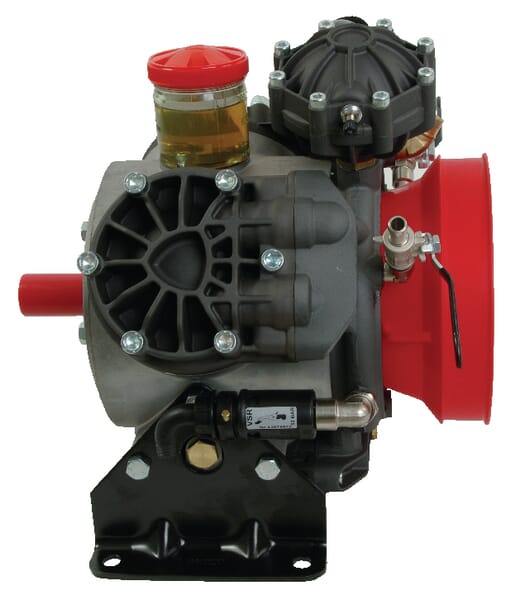

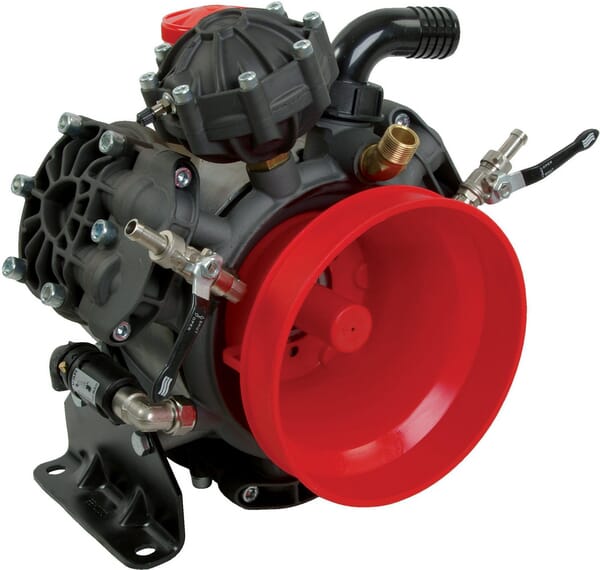

Product details

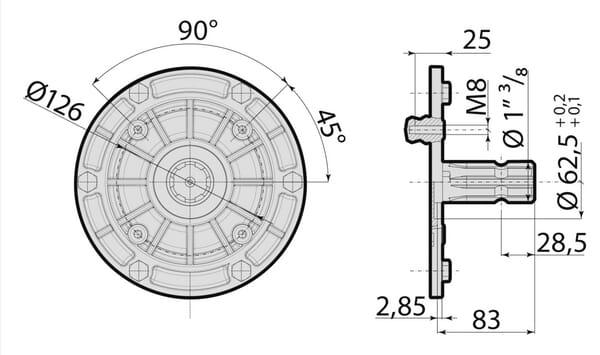

| Drive shaft | 2x 1 3/8 Inch |
|---|---|
| Flow max. | 142.3 l/min |
| Height | 417 mm |
| Length | 350 mm |
| Material piston diaphragms | BlueFlex |
| Ø Intake | 40 mm |
| Ø Outlet | G 3/4 Inch |
| Power | 17.4 HP |
| Pressure max. | 50 BAR |
| Product details | Anodised medium- and high-pressure pumps, All parts coming into contact with liquid are anodised (the AR30 and AR50 versions are plastic-coated), Long service life, For sprayers in fruit and wine growing (tall-growing crops), The crank drive case runs in an oil bath, with a control tank, All screws are zinc-plated, The pumps are equipped with rubber membranes as standard, A safety valve is fitted as standard (except the AR303, AR403 and AR503), The protective cap is supplied with C/SP pumps as standard, SP: pump with universal shaft as driving shaft, C: pump with a cardan shaft 1 3/8" 6 pieces, C/C: pump with through shaft: double-sided cardan shaft 1 3/8" 6 spline - 1 3/8" 6 spline, C/SP: pump with through shaft: 1 3/8" - 6 pieces, universal shaft |
| Rotation max. | 550 r/min |
| Shaft type | 1 3/8" (6) + 1 3/8" (6) |
| Temperature max. | 60 °C |
| Unit | Each |
| Weight | 40 kg |
| Width | 397 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 44420 g |
| Dimensions | 525 × 475 × 470 mm |
| Dangerous goods | No |
You might also like
BPA000178245
Annovi Reverberi Ring for membrane 800350
£7.59 excl.
£9.11 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000169555
Annovi Reverberi Bolt 750061AKI
£6.89 excl.
£8.27 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000102266

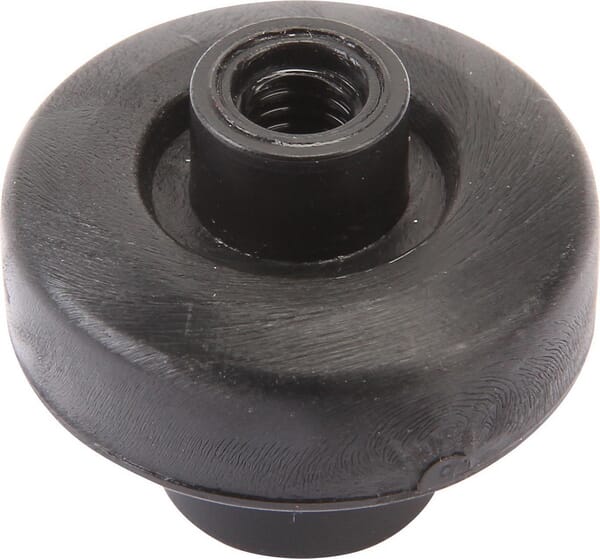

Annovi Reverberi Piston for ECM/UCM 394751
£8.29 excl.
£9.95 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000024789
Annovi Reverberi Cylinder Head SX 1040552
£79.31 excl.
£95.17 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000024756
Annovi Reverberi Cap oil reservoir black AR115 1040322
£20.82 excl.
£24.98 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000232000
Annovi Reverberi Idrominus 2 Way valve AR1452
£215.01 excl.
£258.01 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
Free shipping
BPA000015444

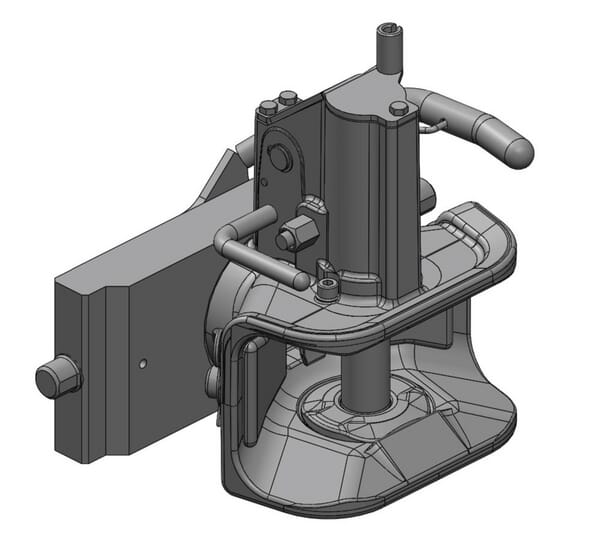

Scharmüller Clevis Types W293 S30 Cramer CH-I (diameter 31,5mm) F2 032931221A02
