£620.11
excl. VAT
£744.13 incl. VAT
£744.13
incl. VAT
£620.11 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details

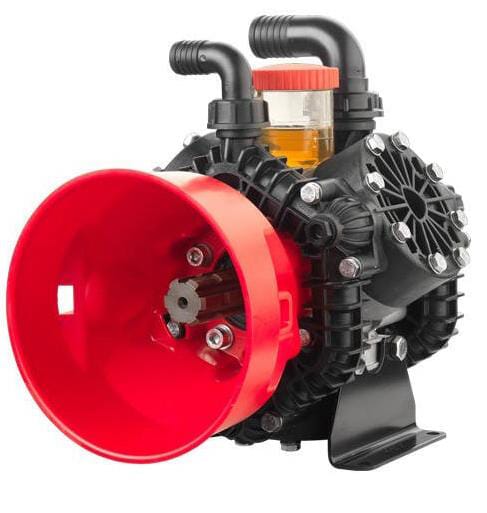

| Application range | Semi-hydraulic low-pressure diaphragm pumps for weed control and liquid fertilisation, The pumps AR DUE, AR202 and AR252 are diaphragm pumps for horticulture |
|---|---|
| Consists of | Piston diaphragm pump with safety valve and air chamber (except for AR DUE, AR202 and AR252), The pumps are supplied with rubber membranes as standard |

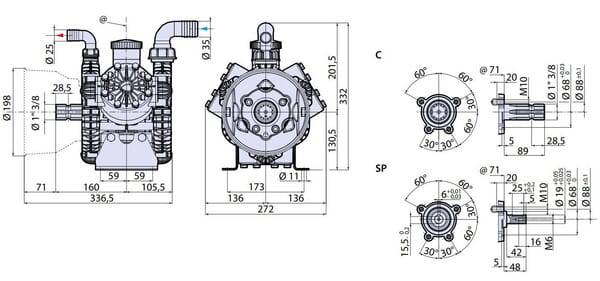

| Height | 332 mm |
| Material piston diaphragms | BlueFlex |
| Max. medium temperature (continuous) | 60 °C |
| Max. volume flow rate | 43.3 l/min |
| Motor output power | 1.5 kW |
| Motor power output | 2.1 HP |
| Ø Intake | 35 mm |
| Ø Outlet | 25 mm |
| Outlet connection return | 25 mm |
| Pressure max. | 20 BAR |
| Properties | All parts that come in contact with liquid are plastic-coated. The AR DUE, AR202 and AR252 pumps are made from anodised aluminium, The oil bath crank drive has a control tank (except the AR DUE), Screws with galvanised protection treatment made from Dacromet |
| Rotational speed | 550 r/min |
| Shaft type | 1 3/8" (6) |
| Technical info | SP: pump with universal shaft as driving shaft, Bp C: pump with a cardan shaft 1 3/8" 6 pieces, Bp C/C: pump with through shaft: two-sided cardan shaft 1 3/8" – 6 piece – 1 3/8" – 6 piece, BpTwin: pump with through shaft: two-sided cardan shaft 1 3/8" – 6 piece – 1 3/8" – 6 piece |
| Total length | 272 mm |
| Unit | Each |
| Weight | 11 kg |
| Width | 336.5 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 13767 g |
| Dimensions | 400 × 390 × 300 mm |
| Dangerous goods | No |
You might also like
BPA000232154
Annovi Reverberi Connection Set GR 30 AR891
£15.56 excl.
£18.67 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000125272

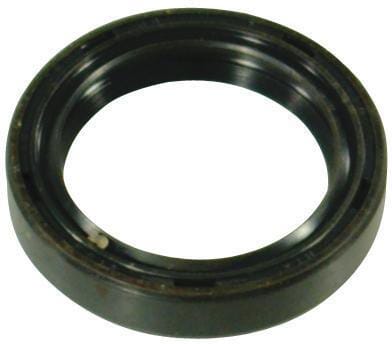

Annovi Reverberi Seal ring 480820
£11.49 excl.
£13.79 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000154782

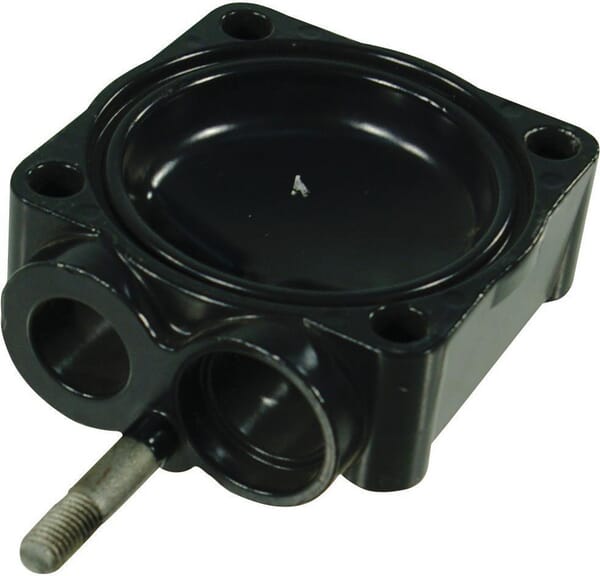

Annovi Reverberi Cylinder Head LH 650102AV
£87.22 excl.
£104.66 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000102315
Annovi Reverberi Idrominus 2 Way Housing 395400
£34.16 excl.
£40.99 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000232150
Annovi Reverberi Operation Kitt AR303/403 Cpl. AR886
£135.90 excl.
£163.08 incl.
In stock
Expected to ship on Monday 21 September
BPA000024746

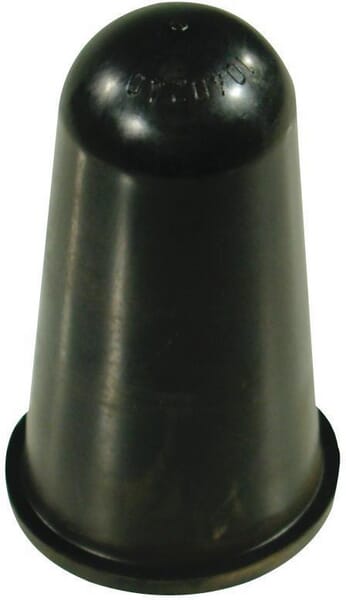

Annovi Reverberi Air Room 1040240
