£1,555.66
excl. VAT
£1,866.79 incl. VAT
£1,866.79
incl. VAT
£1,555.66 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Drive shaft | 2x 1 3/8 Inch |
|---|---|
| Flow max. | 105 l/min |
| Height | 381 mm |
| Length | 337 mm |
| Material piston diaphragms | BlueFlex |
| Ø Intake | 40 mm |
| Ø Outlet | G 3/4 Inch |
| Power | 13.32 HP |
| Pressure max. | 50 BAR |
| Product details | Anodised medium- and high-pressure pumps, All parts coming into contact with liquid are anodised (the AR30 and AR50 versions are plastic-coated), Long service life, For sprayers in fruit and wine growing (tall-growing crops), The crank drive case runs in an oil bath, with a control tank, All screws are zinc-plated, The pumps are equipped with rubber membranes as standard, A safety valve is fitted as standard (except the AR303, AR403 and AR503), The protective cap is supplied with C/SP pumps as standard, SP: pump with universal shaft as driving shaft, C: pump with a cardan shaft 1 3/8" 6 pieces, C/C: pump with through shaft: double-sided cardan shaft 1 3/8" 6 spline - 1 3/8" 6 spline, C/SP: pump with through shaft: 1 3/8" - 6 pieces, universal shaft |
| Rotation max. | 550 r/min |
| Shaft type | 1 3/8" (6) + 1 3/8" (6) |
| Temperature max. | 60 °C |
| Unit | Each |
| Weight | 22 kg |
| Width | 421 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 40000 g |
| Dimensions | 460 × 400 × 430 mm |
| Dangerous goods | No |
You might also like
BPA000121600

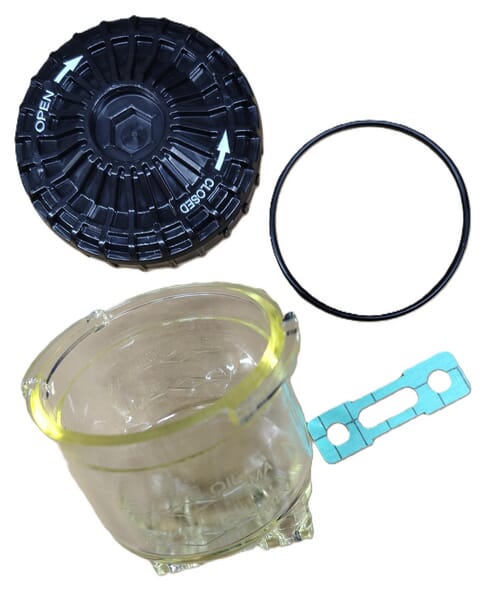

Annovi Reverberi Oil reservoir with cup and gasket 47754
£26.88 excl.
£32.26 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000139981
Annovi Reverberi O-ring 26.65x2.62 550040
£1.35 excl.
£1.62 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000099094

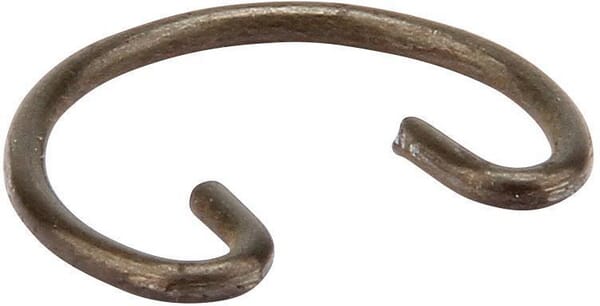

Annovi Reverberi Piston pin ring 380080AV
£1.92 excl.
£2.30 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000102288

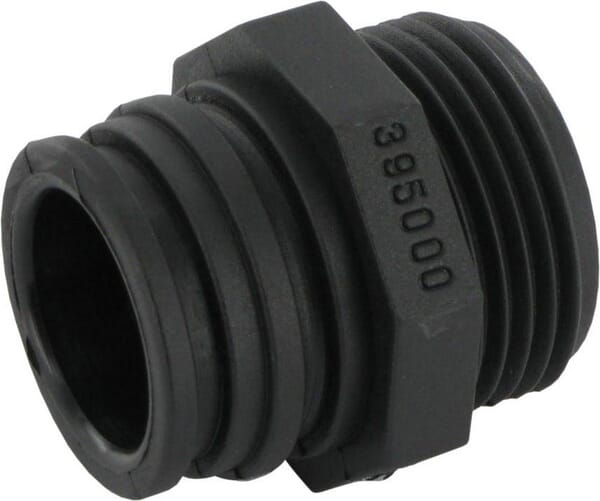

Annovi Reverberi Nipple 395000
£15.84 excl.
£19.01 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000232016

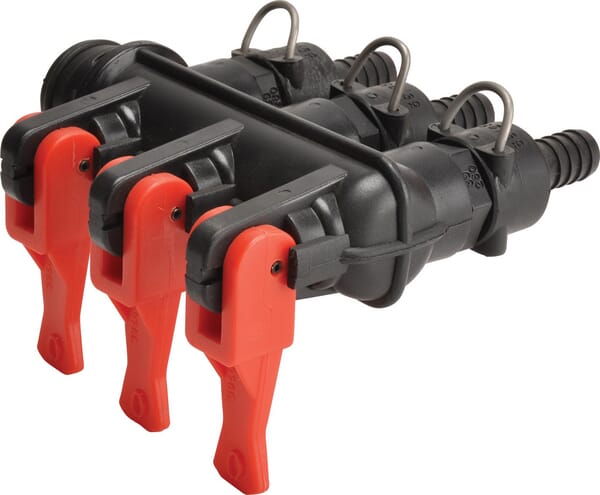

Annovi Reverberi Complete RH-hand 3 Way valve AR1572
