£1,803.76
excl. VAT
£2,164.51 incl. VAT
£2,164.51
incl. VAT
£1,803.76 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details

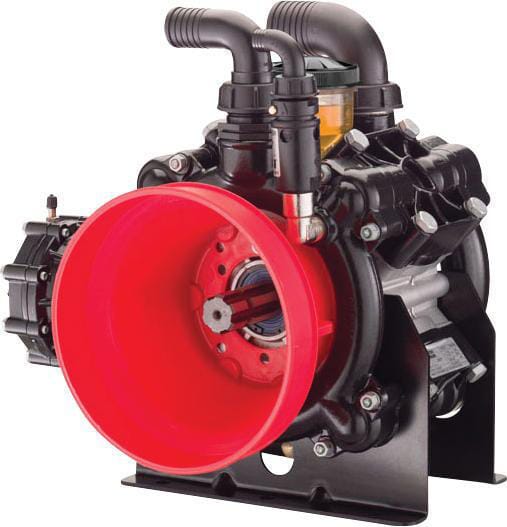

| Application range | Semi-hydraulic low-pressure diaphragm pumps for weed control and liquid fertilisation, The pumps AR DUE, AR202 and AR252 are diaphragm pumps for horticulture |
|---|---|
| Consists of | Piston diaphragm pump with safety valve and air chamber (except for AR DUE, AR202 and AR252), The pumps are supplied with rubber membranes as standard |

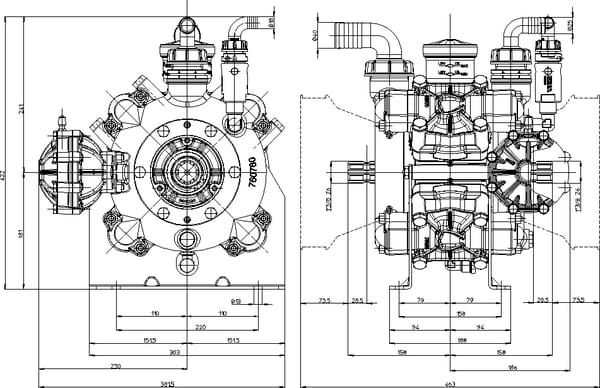

| Height | 422 mm |
| Material piston diaphragms | BlueFlex |
| Max. medium temperature (continuous) | 60 °C |
| Max. volume flow rate | 166 l/min |
| Motor output power | 5.5 kW |
| Motor power output | 7.5 HP |
| Ø Intake | 40 mm |
| Ø Outlet | 25 mm |
| Pressure max. | 20 BAR |
| Properties | All parts that come in contact with liquid are plastic-coated. The AR DUE, AR202 and AR252 pumps are made from anodised aluminium, The oil bath crank drive has a control tank (except the AR DUE), Screws with galvanised protection treatment made from Dacromet |
| Rotational speed | 550 r/min |

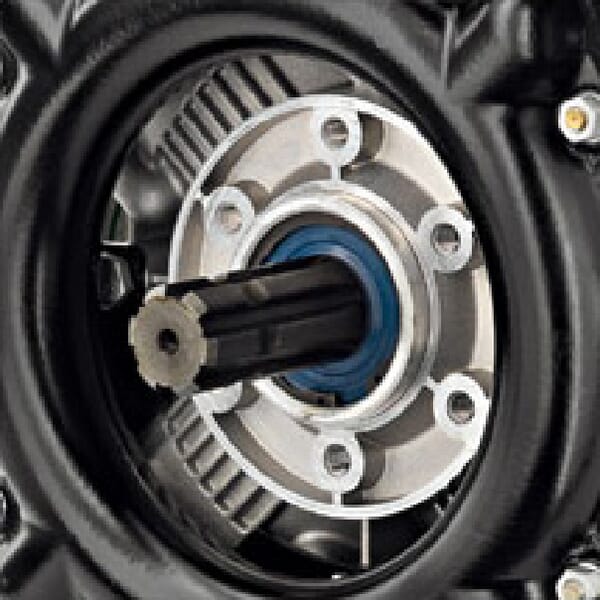

| Shaft type | 1 3/8" (6) + 1 3/8" (6) |
| Technical info | SP: pump with universal shaft as driving shaft, Bp C: pump with a cardan shaft 1 3/8" 6 pieces, Bp C/C: pump with through shaft: two-sided cardan shaft 1 3/8" – 6 piece – 1 3/8" – 6 piece, BpTwin: pump with through shaft: two-sided cardan shaft 1 3/8" – 6 piece – 1 3/8" – 6 piece |
| Total length | 344 mm |
| Unit | Each |
| Weight | 28 kg |
| Width | 382 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 40000 g |
| Dimensions | 460 × 460 × 460 mm |
| Dangerous goods | No |
You might also like
BPA000057819

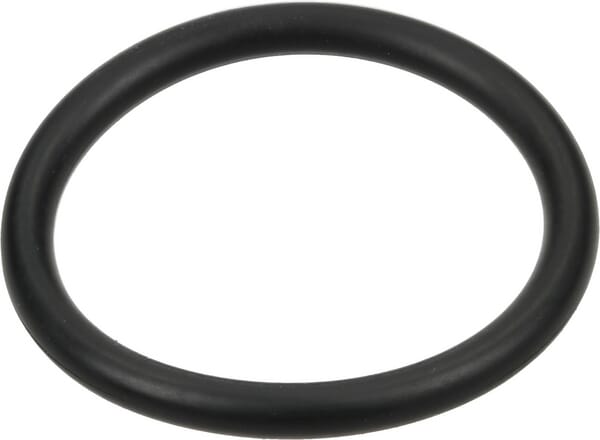

Annovi Reverberi O-ring 17.5x2mm 70 shore Viton black 180101AV
£0.75 excl.
£0.90 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000140007
Annovi Reverberi Cylinder Head left 550102
£81.15 excl.
£97.38 incl.
In stock
Expected to ship on Friday 18 September
BPA000178528

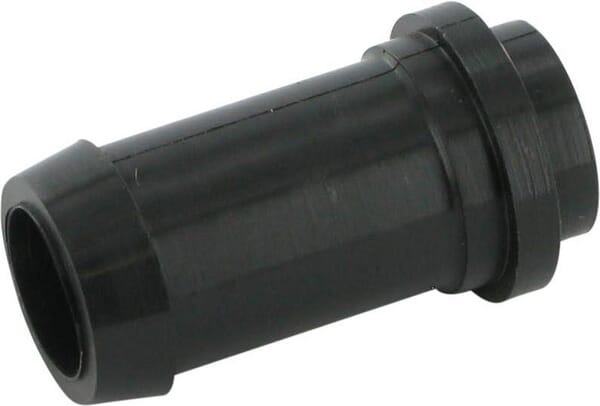

Annovi Reverberi Hose tail 45 degree 15mm 800670
£4.53 excl.
£5.44 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000140062

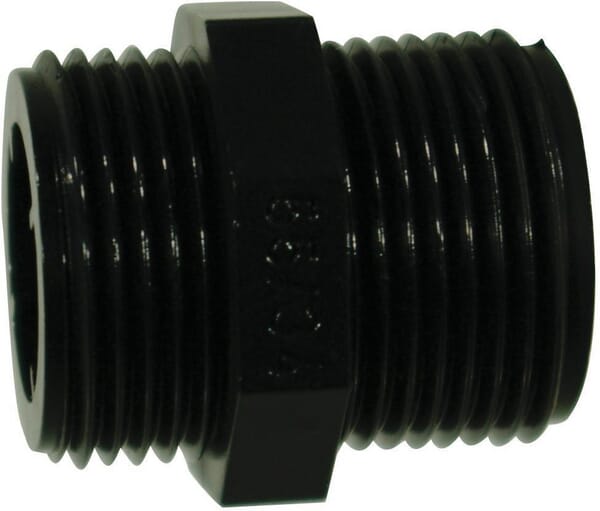

Annovi Reverberi Nipple 1" x 1" 550340
£7.81 excl.
£9.37 incl.
In stock
Expected to ship on Friday 18 September
BPA000076563

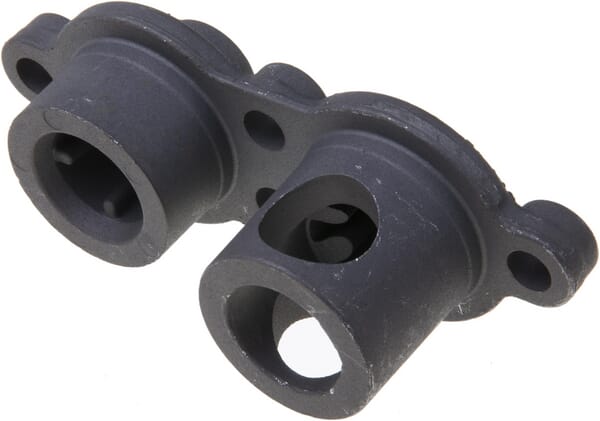

Annovi Reverberi Pump cap 2680040
£25.71 excl.
£30.85 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000232009

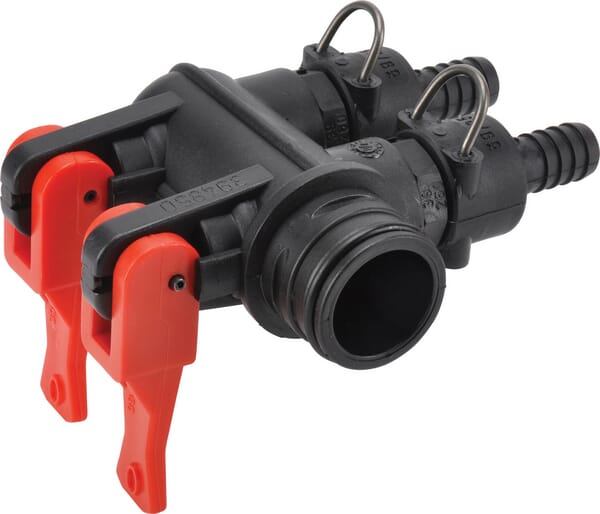

Annovi Reverberi Valve 2 Way LH complete AR1547
£88.27 excl.
£105.92 incl.
In stock
Expected to ship on Friday 18 September
Recently viewed
BPA000353715
Hallite Rod seal 53x45x11.8mm SA4553118UN
£4.54 excl.
£5.45 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000308852

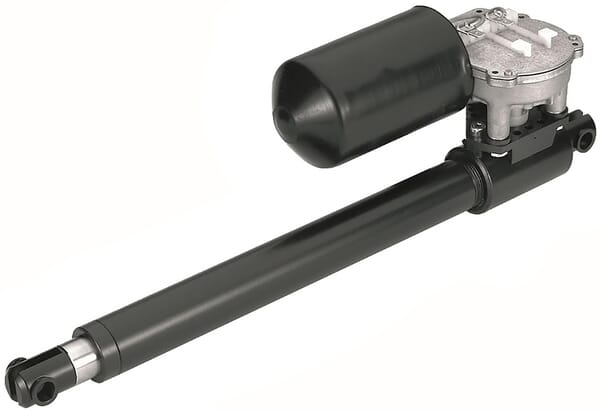

LINAK Actuator 12V-S S=150 IP51 LA3011000015020N
