£1,904.66
excl. VAT
£2,285.59 incl. VAT
£2,285.59
incl. VAT
£1,904.66 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details

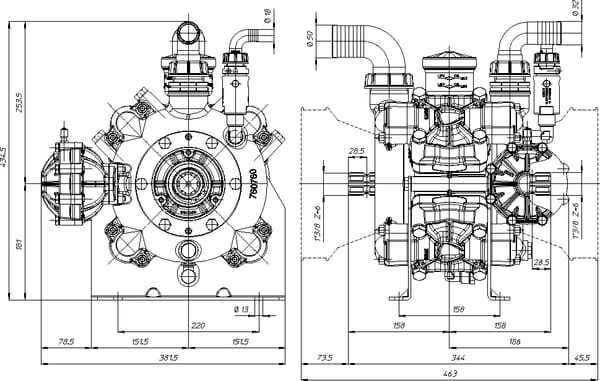

| Application range | Semi-hydraulic low-pressure diaphragm pumps for weed control and liquid fertilisation, The pumps AR DUE, AR202 and AR252 are diaphragm pumps for horticulture |
|---|---|
| Consists of | Piston diaphragm pump with safety valve and air chamber (except for AR DUE, AR202 and AR252), The pumps are supplied with rubber membranes as standard |
| Height | 435 mm |
| Material piston diaphragms | BlueFlex |
| Max. medium temperature (continuous) | 60 °C |
| Max. volume flow rate | 180 l/min |
| Motor output power | 6.1 kW |
| Motor power output | 8.3 HP |
| Ø Intake | 50 mm |
| Ø Outlet | 35 mm |
| Pressure max. | 20 BAR |
| Properties | All parts that come in contact with liquid are plastic-coated. The AR DUE, AR202 and AR252 pumps are made from anodised aluminium, The oil bath crank drive has a control tank (except the AR DUE), Screws with galvanised protection treatment made from Dacromet |
| Rotational speed | 550 r/min |

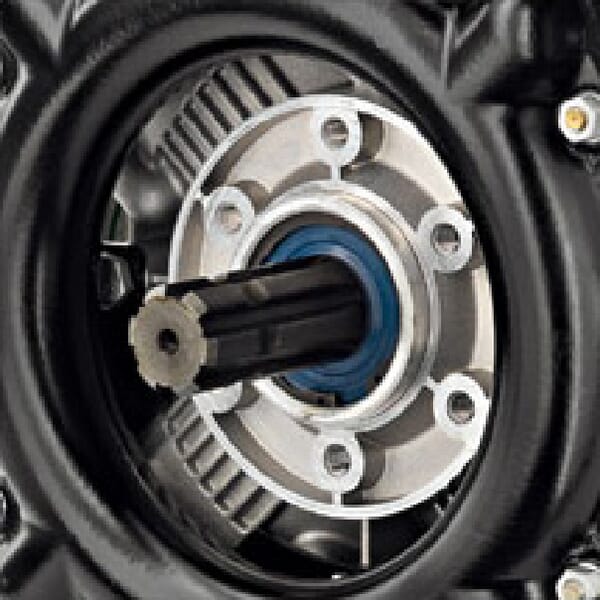

| Shaft type | 1 3/8" (6) + 1 3/8" (6) |
| Technical info | SP: pump with universal shaft as driving shaft, Bp C: pump with a cardan shaft 1 3/8" 6 pieces, Bp C/C: pump with through shaft: two-sided cardan shaft 1 3/8" – 6 piece – 1 3/8" – 6 piece, BpTwin: pump with through shaft: two-sided cardan shaft 1 3/8" – 6 piece – 1 3/8" – 6 piece |
| Total length | 316 mm |
| Unit | Each |
| Weight | 28 kg |
| Width | 382 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 45000 g |
| Dimensions | 520 × 460 × 460 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000140057

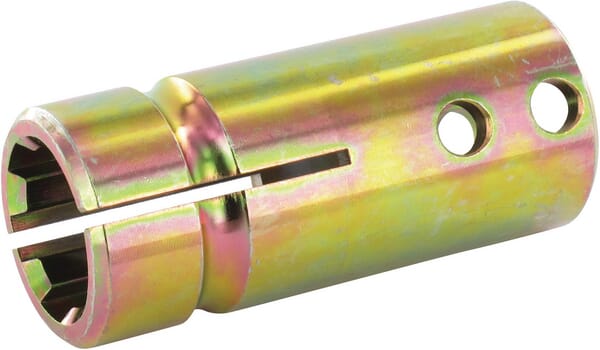

Annovi Reverberi Bush 1 3/8" 550250
£107.36 excl.
£128.83 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000035222

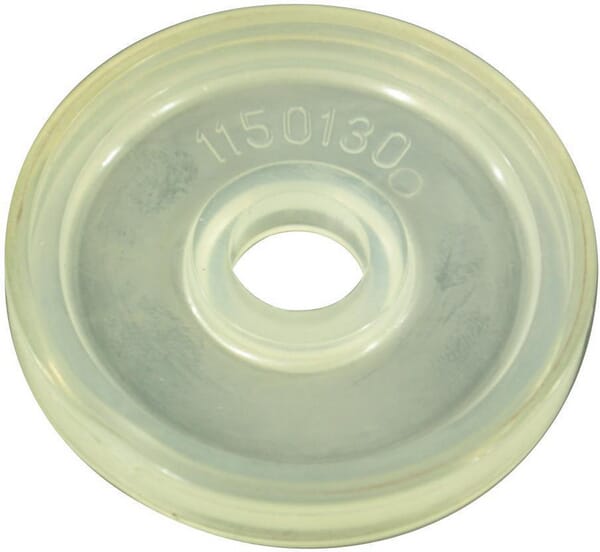

Annovi Reverberi Membrane NBR 1150131
£19.85 excl.
£23.82 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000044433
Annovi Reverberi Connecting-rod 1300140
£29.84 excl.
£35.81 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000284118

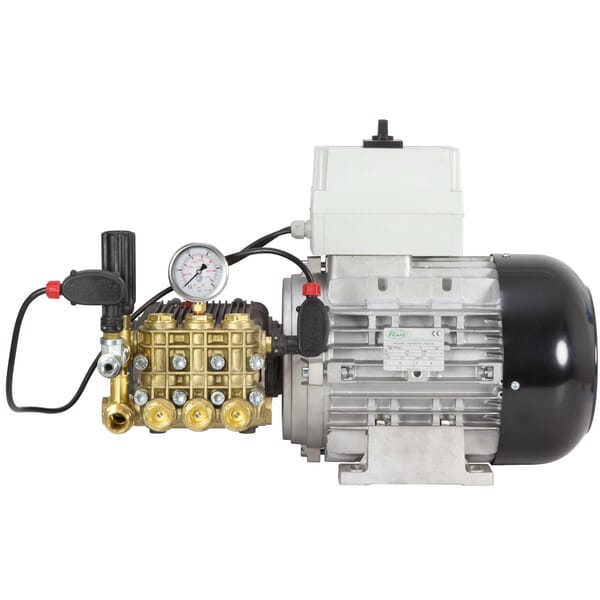

Annovi Reverberi High pressure washer XW30.15N HD15030CW
£2,182.07 excl.
£2,618.49 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000232018
Annovi Reverberi Kit to mount onto engine reduction ratio 1:4.3 AR1613
£265.89 excl.
£319.07 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000141006
Annovi Reverberi Cylinder sleve 580110
£48.22 excl.
£57.86 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000026615

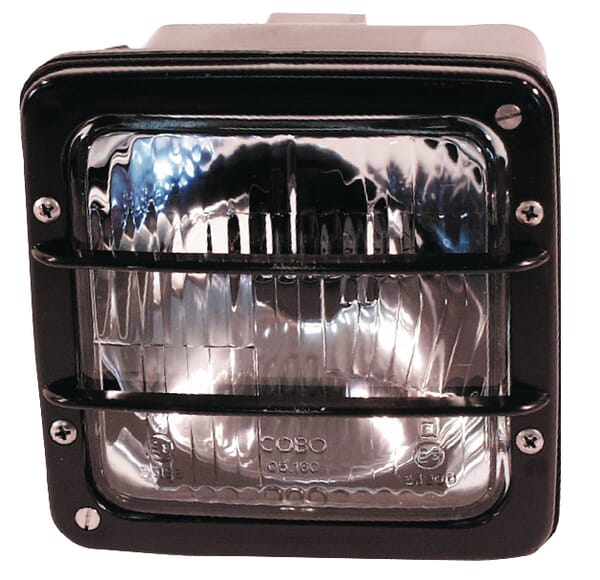

Cobo Headlight Halogen, square, 12/24V, transparent, bolt on, 140x112x112mm, 05161000
£41.56 excl.
£49.87 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000084275

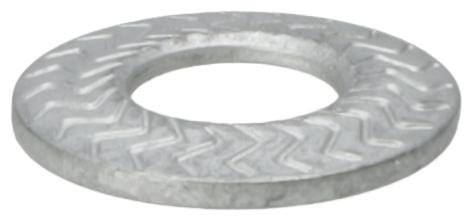

Lemken Washer 10,2/22,25x1,6 Z BK45 3059835
