£788.17
excl. VAT
£945.80 incl. VAT
£945.80
incl. VAT
£788.17 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Drive shaft | universal Inch |
|---|---|
| Flow max. | 34 l/min |
| Height | 268 mm |
| Length | 179 mm |
| Material piston diaphragms | BlueFlex |
| Ø Intake | 25 mm |
| Ø Outlet | 13 mm |
| Power | 2.45 HP |
| Pressure max. | 40 BAR |
| Product details | Anodised medium- and high-pressure pumps, All parts coming into contact with liquid are anodised (the AR30 and AR50 versions are plastic-coated), Long service life, For sprayers in fruit and wine growing (tall-growing crops), The crank drive case runs in an oil bath, with a control tank, All screws are zinc-plated, The pumps are equipped with rubber membranes as standard, A safety valve is fitted as standard (except the AR303, AR403 and AR503), The protective cap is supplied with C/SP pumps as standard, SP: pump with universal shaft as driving shaft, C: pump with a cardan shaft 1 3/8" 6 pieces, C/C: pump with through shaft: double-sided cardan shaft 1 3/8" 6 spline - 1 3/8" 6 spline, C/SP: pump with through shaft: 1 3/8" - 6 pieces, universal shaft |
| Rotation max. | 550 r/min |
| Shaft type | Universal |
| Temperature max. | 60 °C |
| Unit | Each |
| Weight | 9.5 kg |
| Width | 271 mm |
Compatible accessories
Parts and components that work with this product.
1500350

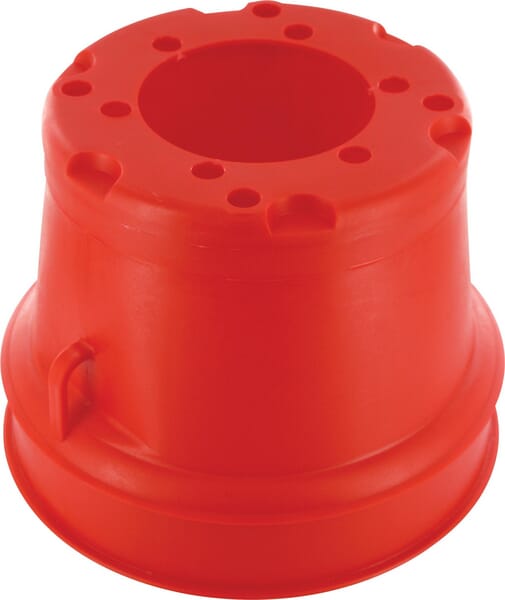

Annovi Reverberi PTO guard 1500350
£21.89 excl.
£26.27 incl.
1509AR

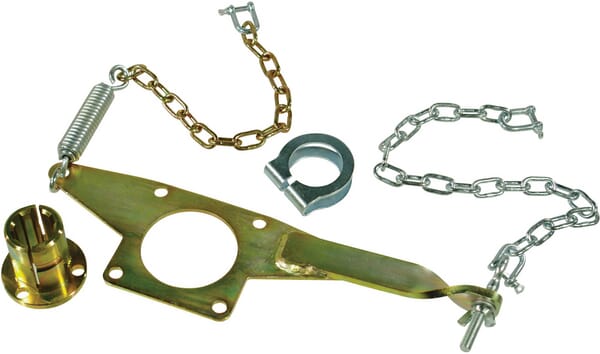

Annovi Reverberi Adaptor for PTO Shaft 1509AR
£260.45 excl.
£312.54 incl.
AR1495
Annovi Reverberi Pulley 310A2 AR1495
£123.99 excl.
£148.79 incl.
AR1504

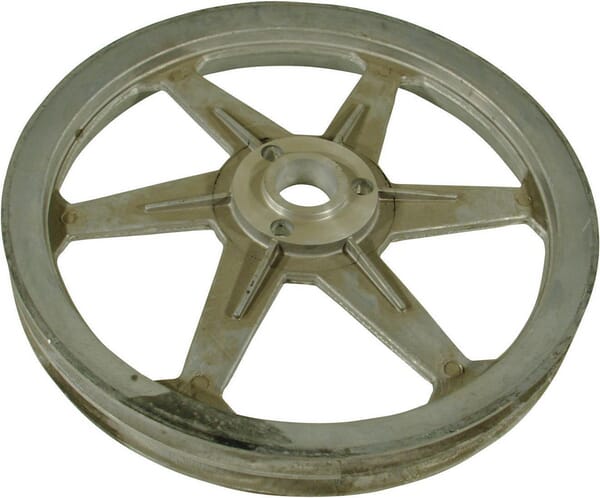

Annovi Reverberi Pulley 280A2 AR1504
£129.91 excl.
£155.89 incl.
AR1519
Annovi Reverberi P.T.O. Shaft 1 3/8" AR1519
£88.61 excl.
£106.33 incl.
AR1636
Annovi Reverberi Connection 1:5,9 - 3/4" AR1636
£485.00 excl.
£582.00 incl.
AR880
Annovi Reverberi Valve GR40 AR880
£170.26 excl.
£204.31 incl.
AR886
Annovi Reverberi Operation Kitt AR303/403 Cpl. AR886
£135.90 excl.
£163.08 incl.
AR900

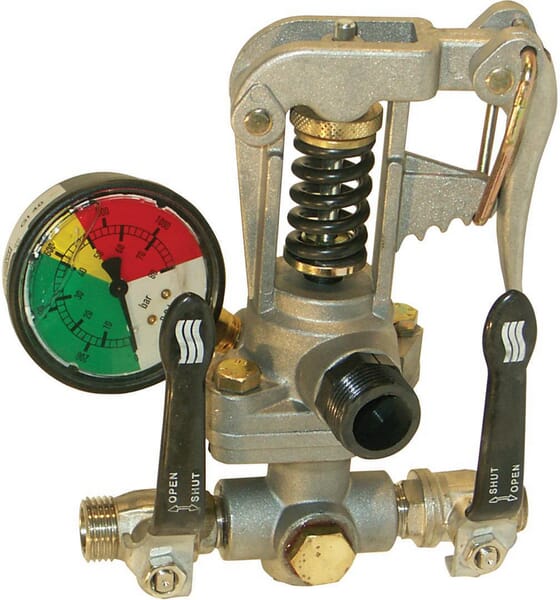

Annovi Reverberi Tap GI 40 AR900
£156.30 excl.
£187.56 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 11893 g |
| Dimensions | 401 × 390 × 300 mm |
| Dangerous goods | No |
You might also like
BPA000232038
Annovi Reverberi Flap set AR 703 / 813 AR1963
£87.54 excl.
£105.05 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000231994

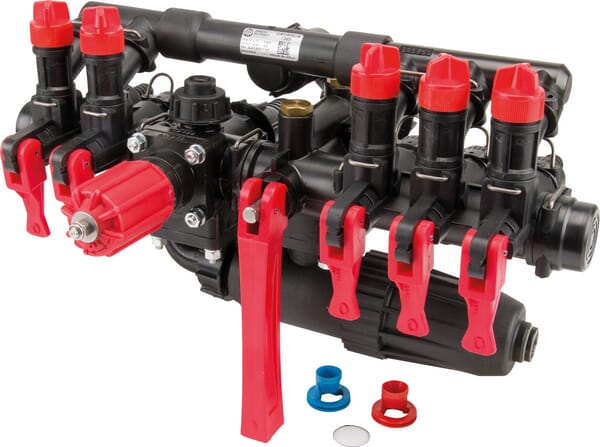

Annovi Reverberi Tap Idrominus 5 AR1358
£826.65 excl.
£991.98 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000232151
Annovi Reverberi Motor building 1:5,9 - 3/4" AR887
£262.42 excl.
£314.90 incl.
In stock
Expected to ship on Friday 18 September
BPA000082579

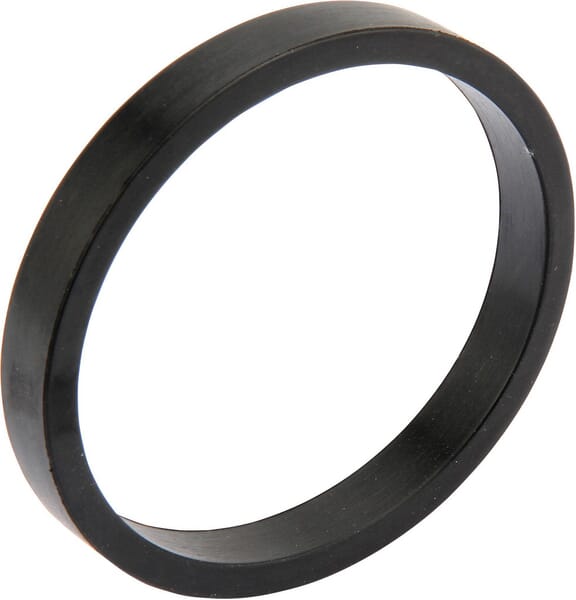

Annovi Reverberi Valve seal ring AR 410/460 3040200
£9.89 excl.
£11.87 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000024788

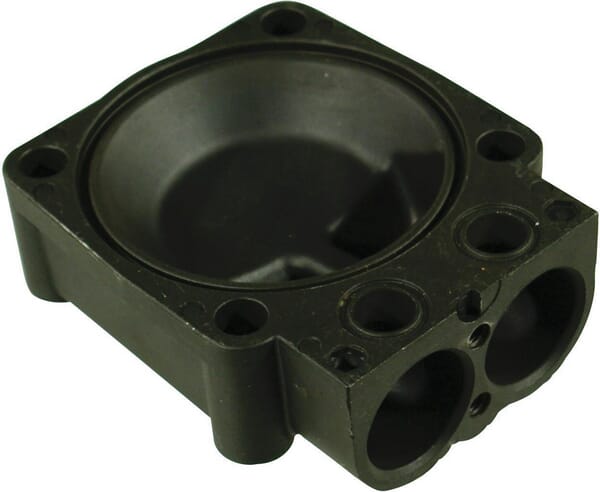

Annovi Reverberi Cylinder Head DX 1040551
