£4,659.80
excl. VAT
£5,591.76 incl. VAT
£5,591.76
incl. VAT
£4,659.80 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Semi-hydraulic low-pressure diaphragm pumps for weed control and liquid fertilisation, The pumps AR DUE, AR202 and AR252 are diaphragm pumps for horticulture |
|---|---|
| Consists of | Piston diaphragm pump with safety valve and air chamber (except for AR DUE, AR202 and AR252), The pumps are supplied with rubber membranes as standard |
| Height | 430 mm |
| Material piston diaphragms | BlueFlex |
| Max. medium temperature (continuous) | 60 °C |
| Max. volume flow rate | 321 l/min |
| Motor output power | 12.3 kW |
| Motor power output | 16.8 HP |
| Ø Intake | 60 mm |
| Ø Outlet | 35 mm |
| Pressure max. | 20 BAR |
| Properties | All parts that come in contact with liquid are plastic-coated. The AR DUE, AR202 and AR252 pumps are made from anodised aluminium, The oil bath crank drive has a control tank (except the AR DUE), Screws with galvanised protection treatment made from Dacromet |
| Rotational speed | 550 r/min |
| Shaft type | 1 3/8" (6) + 1 3/8" (6) |
| Technical info | SP: pump with universal shaft as driving shaft, Bp C: pump with a cardan shaft 1 3/8" 6 pieces, Bp C/C: pump with through shaft: two-sided cardan shaft 1 3/8" – 6 piece – 1 3/8" – 6 piece, BpTwin: pump with through shaft: two-sided cardan shaft 1 3/8" – 6 piece – 1 3/8" – 6 piece |
| Total length | 632 mm |
| Unit | Each |
| Weight | 58 kg |
| Width | 461 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 60000 g |
| Dimensions | 780 × 610 × 430 mm |
| Dangerous goods | No |
You might also like
BPA000139998
Annovi Reverberi Diaphragm desmopan 550085
£25.84 excl.
£31.01 incl.
In stock
Expected to ship on Monday 21 September
BPA000157779

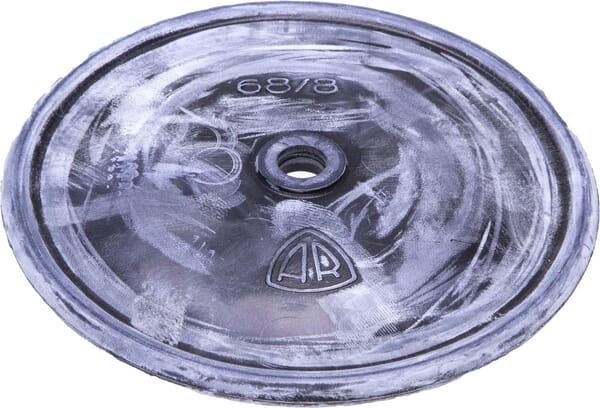

Annovi Reverberi Diaphragm rubber 680080
£24.93 excl.
£29.92 incl.
In stock
Expected to ship on Monday 21 September
BPA000169360

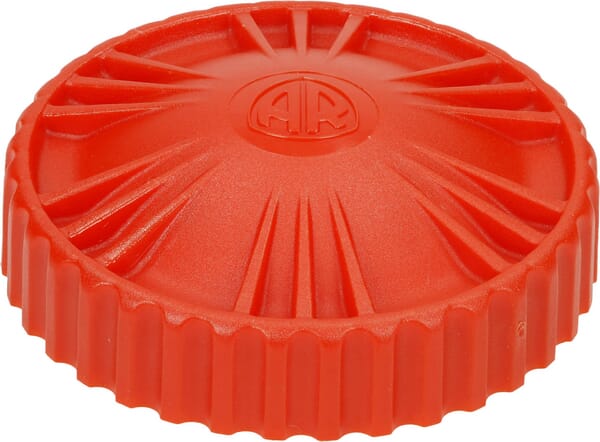

Annovi Reverberi Oil cap Red 750050AV
£15.08 excl.
£18.10 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000153279

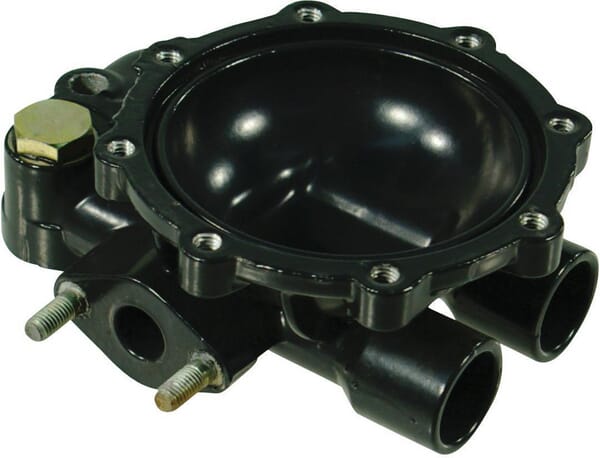

Annovi Reverberi Air Room AR 30 629209
£137.63 excl.
£165.16 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000047895
Annovi Reverberi Adaptor for PTO Shaft 1509AR
£260.45 excl.
£312.54 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000138072

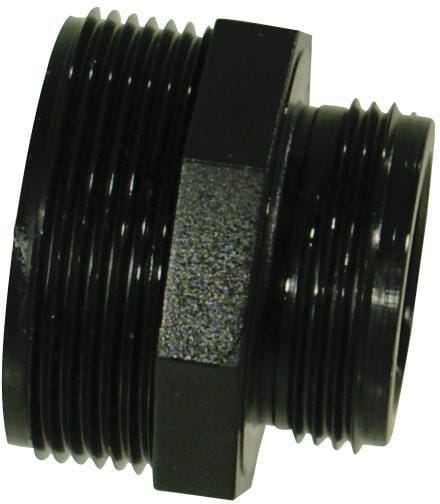

Annovi Reverberi Nipple 1 1/4" x 1 3/4 540530
