£1,298.45
excl. VAT
£1,558.14 incl. VAT
£1,558.14
incl. VAT
£1,298.45 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Drive shaft | 1 3/8 Inch |
|---|---|
| Flow max. | 52 l/min |
| Height | 342 mm |
| Length | 288 mm |
| Material piston diaphragms | BlueFlex |
| Ø Intake | 30 mm |
| Ø Outlet | 18 mm |
| Power | 4.96 HP |
| Pressure max. | 40 BAR |
| Product details | Anodised medium- and high-pressure pumps, All parts coming into contact with liquid are anodised (the AR30 and AR50 versions are plastic-coated), Long service life, For sprayers in fruit and wine growing (tall-growing crops), The crank drive case runs in an oil bath, with a control tank, All screws are zinc-plated, The pumps are equipped with rubber membranes as standard, A safety valve is fitted as standard (except the AR303, AR403 and AR503), The protective cap is supplied with C/SP pumps as standard, SP: pump with universal shaft as driving shaft, C: pump with a cardan shaft 1 3/8" 6 pieces, C/C: pump with through shaft: double-sided cardan shaft 1 3/8" 6 spline - 1 3/8" 6 spline, C/SP: pump with through shaft: 1 3/8" - 6 pieces, universal shaft |
| Rotation max. | 550 r/min |
| Shaft type | 1 3/8" (6) |
| Temperature max. | 60 °C |
| Type | 2 membranes |
| Unit | Each |
| Weight | 17.5 kg |
| Width | 302 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 40000 g |
| Dimensions | 460 × 440 × 400 mm |
| Dangerous goods | No |
You might also like
BPA000232047

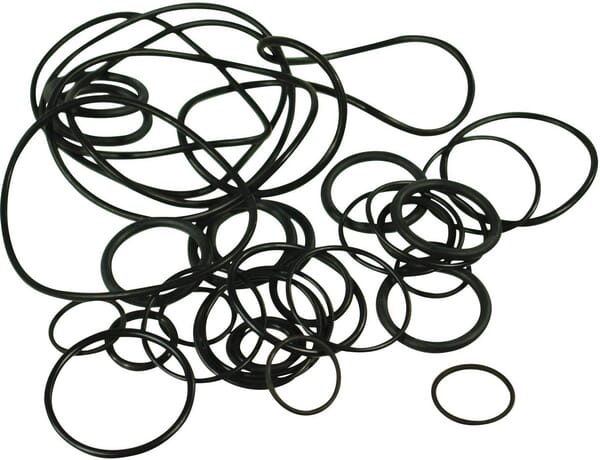

Annovi Reverberi O-ring set AR 703 AR2063
£26.62 excl.
£31.94 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000102068
Annovi Reverberi Valve plate 391670
£1.40 excl.
£1.68 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000053017
Annovi Reverberi Pump AR DUE VRI DC 24 V BlueFlex 16310AR
£1,260.09 excl.
£1,512.11 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000102262
Annovi Reverberi Valve ECM/UCM 394720
£16.69 excl.
£20.03 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000178244

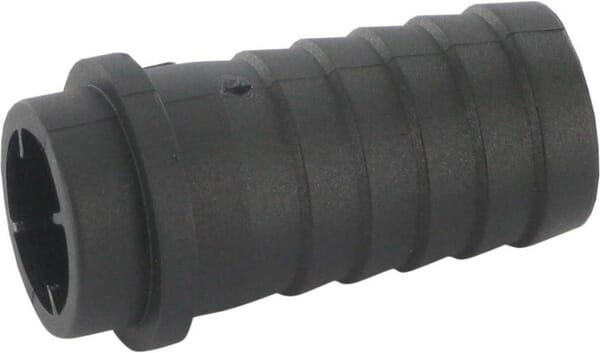

Annovi Reverberi Hose tail 20mm 800340
