Product details
| Drive shaft | 1 3/8 Inch |
|---|---|
| Flow max. | 55 l/min |

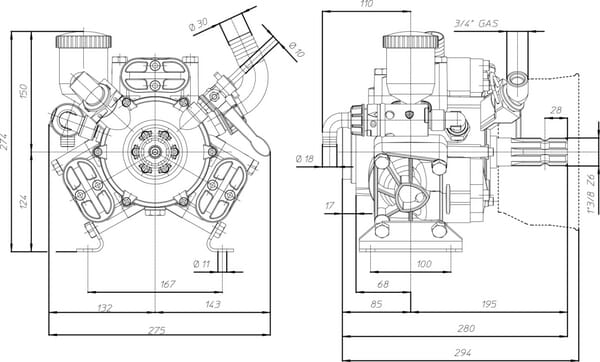

| Height | 313 mm |
| Length | 305 mm |
| Material piston diaphragms | BlueFlex |
| Ø Intake | 30 mm |
| Ø Outlet | G 3/4 Inch |
| Power | 5.3 HP |
| Pressure max. | 40 BAR |
| Product details | Anodised medium- and high-pressure pumps, All parts coming into contact with liquid are anodised (the AR30 and AR50 versions are plastic-coated), Long service life, For sprayers in fruit and wine growing (tall-growing crops), The crank drive case runs in an oil bath, with a control tank, All screws are zinc-plated, The pumps are equipped with rubber membranes as standard, A safety valve is fitted as standard (except the AR303, AR403 and AR503), The protective cap is supplied with C/SP pumps as standard, SP: pump with universal shaft as driving shaft, C: pump with a cardan shaft 1 3/8" 6 pieces, C/C: pump with through shaft: double-sided cardan shaft 1 3/8" 6 spline - 1 3/8" 6 spline, C/SP: pump with through shaft: 1 3/8" - 6 pieces, universal shaft |
| Rotation max. | 550 r/min |

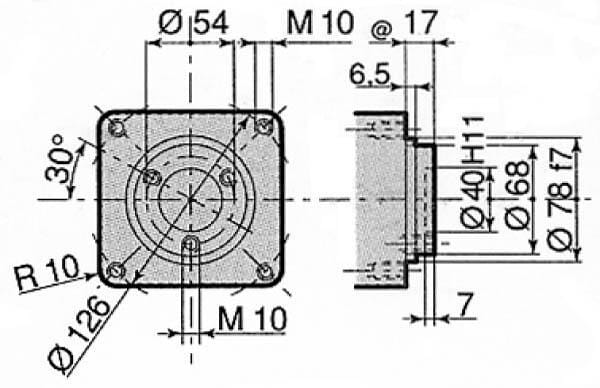

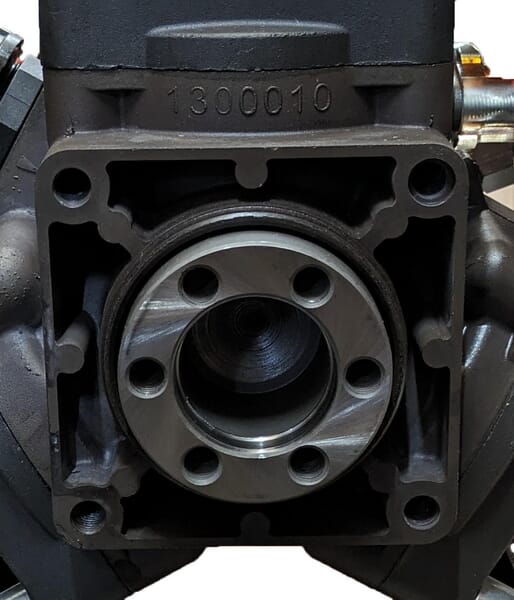

| Shaft type | 1 3/8" (6) + universal |
| Temperature max. | 60 °C |
| Unit | Each |
| Weight | 13 kg |
| Width | 275 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 20000 g |
| Dimensions | 400 × 390 × 300 mm |
| Dangerous goods | No |
