£833.62
excl. VAT
£1,000.34 incl. VAT
£1,000.34
incl. VAT
£833.62 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Ampere | 3 A |
|---|---|
| Ball material | Stainless steel 316 |
| Ball valve type | 3-way |
| DN | 65 mm |
| Electrical connection (Cable / Plug) | SAE J1939 |
| F (BSP) | T9 Inch |
| max. Flow l/min | 1242.3 |
| Max. working pressure | 6.2 BAR |
| Model | 853 |
| Power consumption | 3 A |
| Pressure max. | 6.2 BAR |
| Product details | 3-Way Electric Bolted Ball Valves with Bottom Inlet and Fork Couplings - CAN-Bus Control, The 853 series electric ball valves are designed for optimal functionality and reliability, serving both agricultural and industrial needs. Each valve offers unique technical features, making them secure and dependable for any system., This comprehensive range includes 2-way and 3-way valves with both side and bottom 4/5-way couplings. The 853 series introduces a newly redesigned gear motor for longer lifespan, enhanced reliability, and flexibility. A key feature is the CAN-Bus version with SAE J1939 protocol, enabling easy control of complex hydraulic circuits, such as auxiliary sprayer services., The A-net connected ball valves feature a 4-pole Tyco Superseal® connector with pressure coupling, ensuring secure integration with SYNCRO computer cables. Internal electronics manage ball rotation in 1° steps, sending precise movement data to SYNCRO in real time., SAE J1939 Integration, The CAN-Bus gear motors come with the A-Net proprietary protocol for seamless communication with Arag devices, offering full valve functionality and simple system configuration. An SAE J1939 protocol version is also available for integration with third-party CAN-Bus systems. For protocol details, contact technical support. |
| Response time | 2300 ms |
| Unit | Each |
| Voltage | 12 V |
| Working pressure max. | 6.2 BAR |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | — |
| Dimensions | — |
| Dangerous goods | No |
You might also like
BPA000042744
Arag T piece male/female/male 3" 1322090
£13.75 excl.
£16.50 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000109758
Arag Nozzle holder 5-way 3/4" Seletron 4064T950
£142.08 excl.
£170.50 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000094421
Arag Lid 6" C/W Spring Breather 3542010
£8.23 excl.
£9.88 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000118864

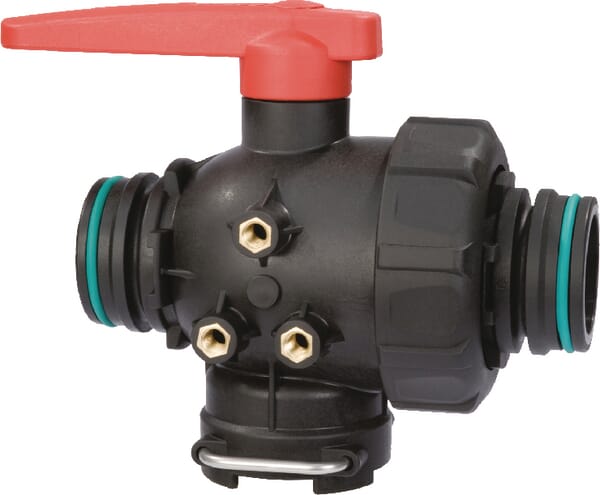

Arag T6 3 Way ball valve 45534436
£42.74 excl.
£51.29 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000191760

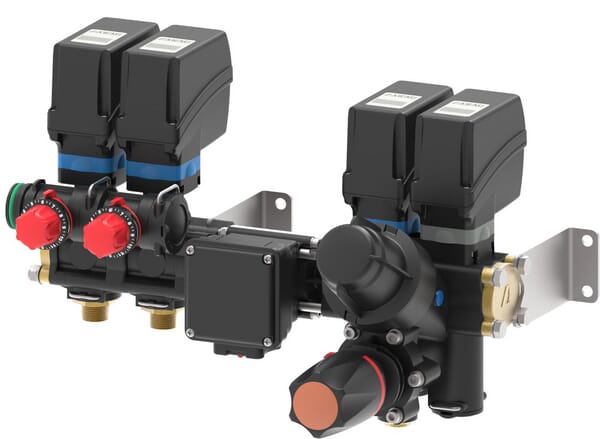

Arag Valveunit 2Way 40B Orion 881B14252B
£1,994.57 excl.
£2,393.48 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000122444

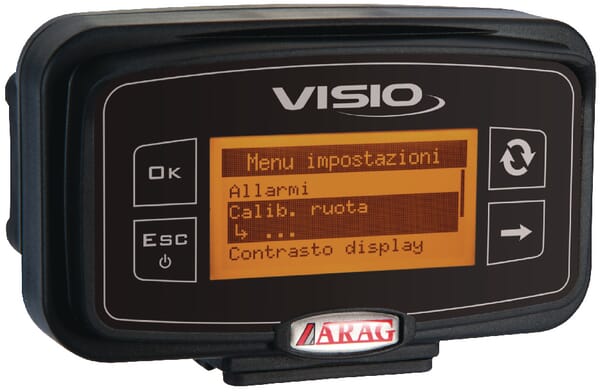

Arag Visio multifunction display 4670610
