£372.86
excl. VAT
£447.43 incl. VAT
£447.43
incl. VAT
£372.86 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

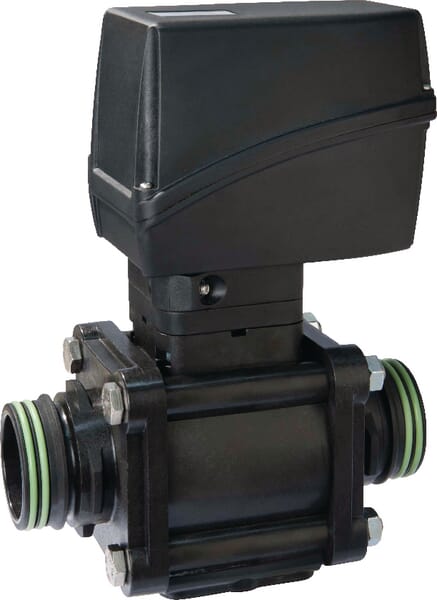

Product details
| Ball material | AISI 316 |
|---|---|

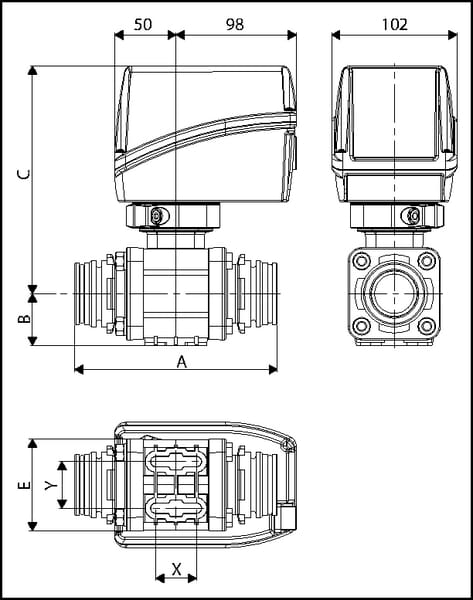

| BHeight from bottom to center | 42 mm |
| CHeight from top to center | 171 mm |
| Max. working pressure | 12 BAR |
| Nominal diameter | 32 mm |
| Properties | Ball positioning seats made from Teflon, Internal O-rings made from viton, Clamping devices for flange mounting made from stainless steel, protected by the valve housing |
| Response time | 1.4 s |

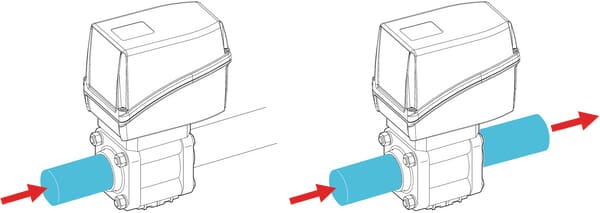

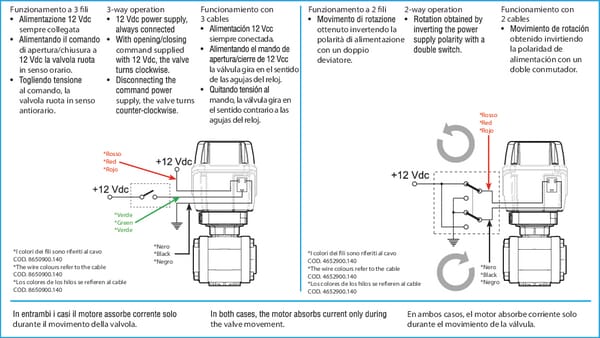

| Technical info | NO: normally open, The valves are designed for the 3-wire function (++-), a supply with 12Vdc:, As long as the controller is fed, the valve rotates and moves into position, in which it interrupts the power consumption independently., If the power supply is interrupted, the gear motor brings the ball back to its original position, The valves are also compatible with the 2-wire controllers:, where the opening/closing movement by reversing the supply polarity is achieved with a double diverter |
| Unit | Each |
| Voltage | 12V/ 3 A V |
| XLength between fixing holes | 33 mm |
| YWidth between fixing holes | 38 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | — |
| Dimensions | — |
| Dangerous goods | No |
You might also like
BPA000109424

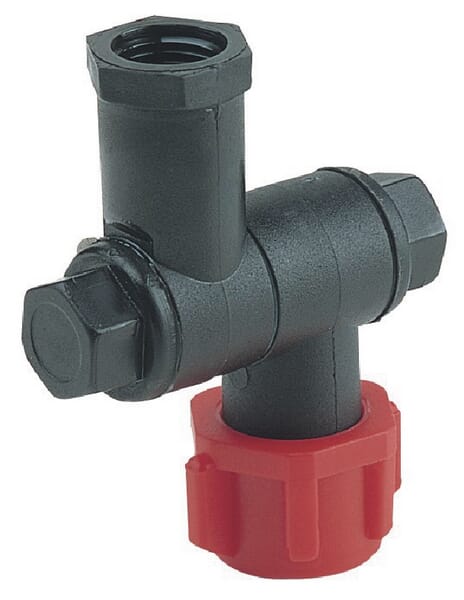

Arag Nozzle Holder 3/8" 404080
£9.06 excl.
£10.87 incl.
In stock
Expected to ship on Monday 21 September
BPA000085598

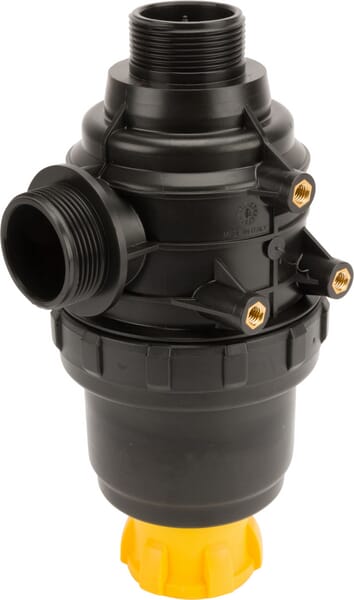

Arag Suctionfilter 1 1/2" 3142462
£41.54 excl.
£49.85 incl.
In stock
Expected to ship on Monday 21 September
BPA000011330

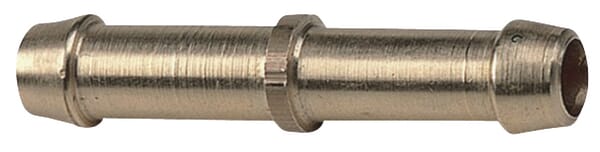

Arag Pipe 10 mm 006420
£2.18 excl.
£2.62 incl.
In stock
Expected to ship on Monday 21 September
BPA000058034

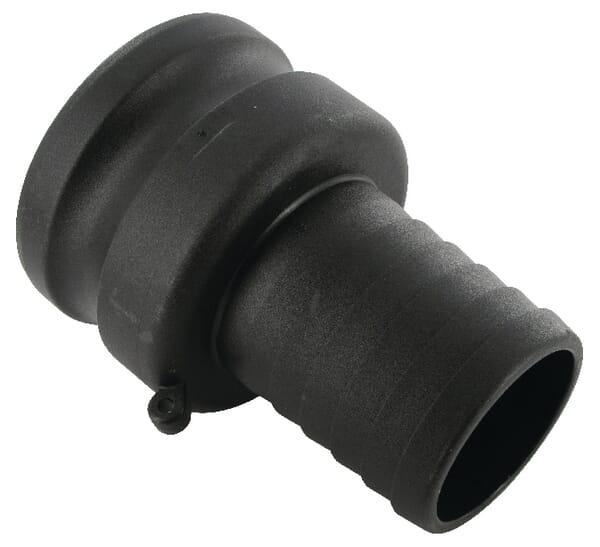

Arag Camlock Type E 3" hose end 60 mm polypropylene 18109E60
£11.50 excl.
£13.80 incl.
In stock
Expected to ship on Monday 21 September
BPA000057991

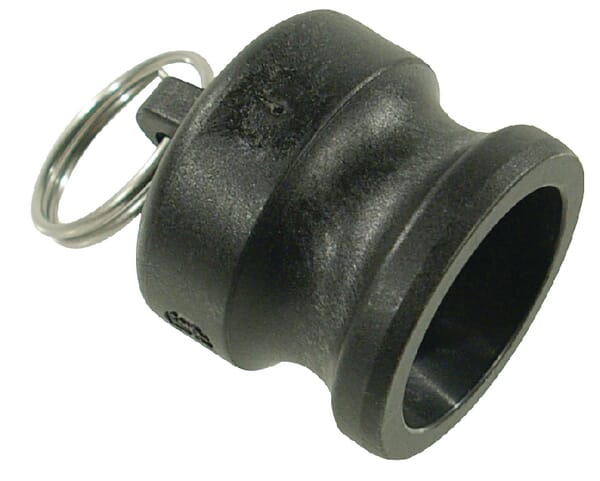

Arag Camlock Type DP 1 1/2" plug polypropylene 18106G
£5.52 excl.
£6.62 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000125385

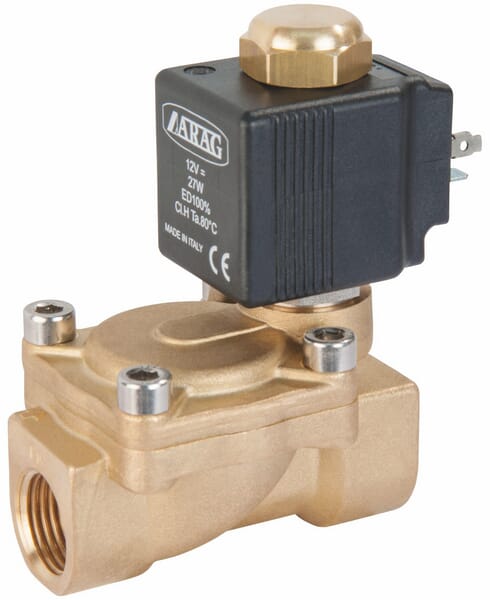

Arag Solenoid valve 40 bar 481611
