£2.89
excl. VAT
£3.47 incl. VAT
£3.47
incl. VAT
£2.89 excl. VAT
In stock
Expected to ship on Friday 18 September
About this product

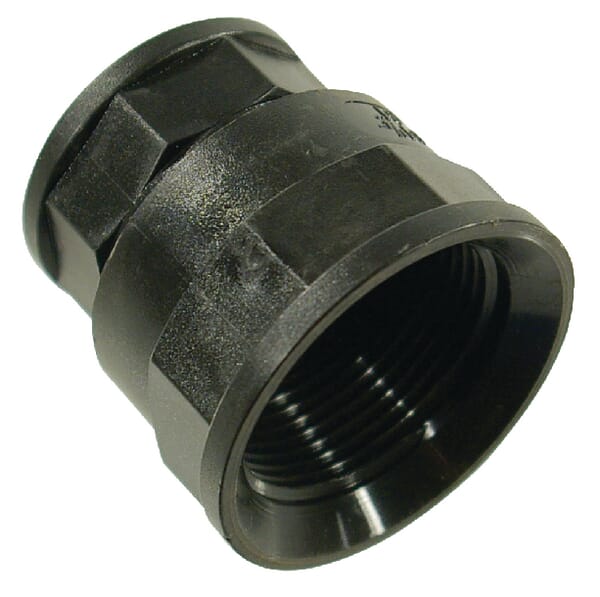

A straight reducing nipple connector with female BSP threads on both ends, connecting 1 1/4 inch diameter (Connection 1) to 1 inch diameter (Connection 2), supplied as a single piece. The connector features a 1 1/4 inch BSP female thread with a 25 mm thread length and 56 mm body diameter on the larger end, and a 1 inch BSP female thread with a 23 mm thread length and 45 mm body diameter on the smaller end. Overall length is 53 mm. The nipple weighs approximately 35 g and carries EAN 8026834045934 for identification and reordering.
Product details

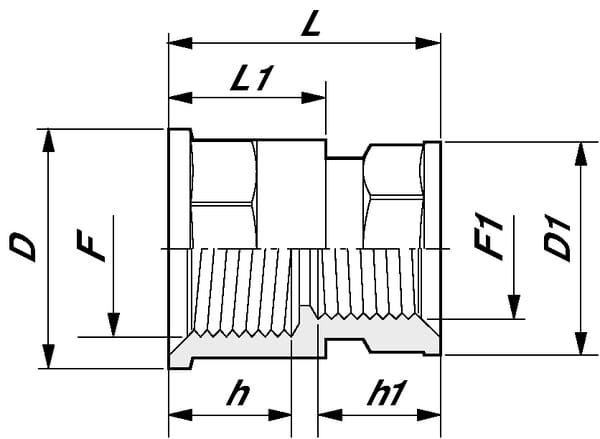

| Connection 1, thread diameter | 1-1/4 Inch |
|---|---|
| Connection 1, thread type | BSP |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Female |
| Connection 2, thread diameter | 1 Inch |
| Connection 2, thread type | BSP |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Female |
| D1Connection 2, diameter | 45 mm |
| DConnection no 1 diameter | 56 mm |
| h1Connection 2, thread length | 23 mm |
| hConnection no 1 thread length | 25 mm |
| L1Connection no 1 length | 32 mm |
| LTotal length | 53 mm |
| Shape | Straight |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | 8026834045934 |
|---|---|
| Unit of measure | EA |
| Weight | 35 g |
| Dimensions | 56 × 56 × 51 mm |
| Dangerous goods | No |
