£1,922.00
excl. VAT
£2,306.40 incl. VAT
£2,306.40
incl. VAT
£1,922.00 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Multiple row garden sprinkler with 4, 5 or 7 part width sections# |
|---|---|
| Benefits | Has a test menu for all connected sensors, operating buttons and valves, Manual or automatic dosing control, Automatic detection of worn nozzles |
| Cable length valves | 4 m |
| Consists of | Sprinkler control computer, With sensor for vehicle speed, Assembly set, Connecting cable for sensors and diverter valves (4 diverters), Power cable, SD card for data storage, Instructions |
| Details | Power supply max. 10A, Mounting in the cab, Any damage caused through the mounting of valves or sensors not sourced from Arag will not be covered by the warranty |
| Numbers of valves | 5 |
| Properties | This multiple row Arag Bravo 300S was specially designed for garden sprinklers. Automatic dosing for 2, 4, 5 or 7 part width sections. With the 300S, manual and automatic dosing is possible, Setting the number of rows per part width section as well as the valve type (2 or 3-way), 2 operating modes for the part width sections:, Mode P: Part width section switches have priority over the main switch, Mode M: The main switch has priority over the part width section switches (normal setting), Max. 19 sprinkler configurations stored, SD card slot for storing tasks, settings and software updates, Display of: current dosing, total dosing, vehicle speed, pressure, flow, liquid level in the container, speed of rotation, processed area, operating duration, productivity, date and time as well as distance covered, Automatic shut-down as soon as the operating pressure falls below the set value, Automatic shut-down as soon as the vehicle speed falls below the set value, Automatic switchover to the pressure sensor as soon as the flow meter registers a flow rate exceeding the parameter, Temporary increase or reduction in dosing at the push of a button, Automatic dosing via flow and pressure evaluation, Automatic checking of nozzle wear through simultaneous checking of flow and operating pressure, Alarm in the following cases: dosing too late, low fluid level in the container, maximum/minimum pressure, maximum/minimum speed of rotation, flow rate outside the parameters, worn nozzles |
| Technical info | Voltage: +11 to 14VDC, Current consumption: 450mA (without valves), Temperature range: 0°C to 60°C, Digital inputs: max. 2000Hz, Analogue inputs: 4 x 20mA, Weight: 1015 g, Dimensions LxWxH (mm): 207 x 222 x 86, Splash-proof, Quick-fit connectors enable quick connection, Integrated SD card holder for data storage, Internal clock with own power supply, Languages: Italian, English, Spanish, French, Portuguese, German, Polish, Russian and Czech, Illuminated, graphical LCD display with 240 x 73 pixels, Inputs for flow signal for filling and dosing, speed, pressure, speed of rotation, pump protection, Outputs for max. 7 part width sections, pressure regulator, main shut-off valve and foam marker, Display of European or US American units |
| Unit | Each |
Logistics
| EAN | 8026834317826 |
|---|---|
| Unit of measure | EA |
| Weight | 4580 g |
| Dimensions | 375 × 250 × 190 mm |
| Dangerous goods | No |
You might also like
BPA000010253
Arag Retaining fork T3 - 3/4" 010003
£1.61 excl.
£1.93 incl.
In stock
Expected to ship on Friday 18 September
BPA000129185
Arag Check valve T5 M 504201D
£17.99 excl.
£21.59 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000118612
Arag 3W Bolted ball valve 2" female 453426A77
£119.59 excl.
£143.51 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000135333

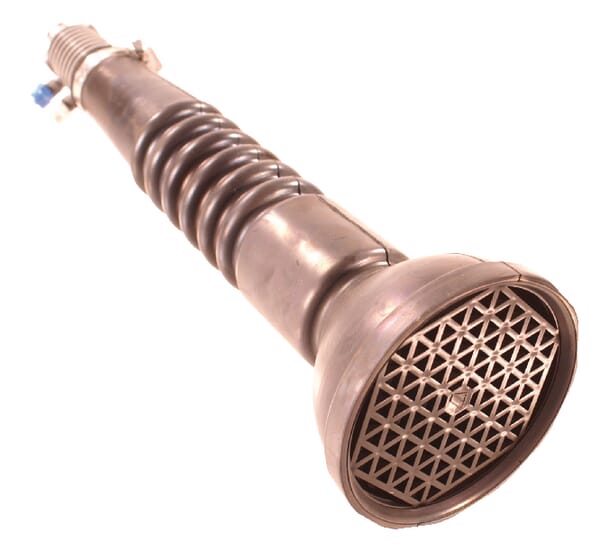

Arag Foam Tube Complete Long 520004262
£69.57 excl.
£83.48 incl.
In stock
Expected to ship on Friday 18 September
BPA000118512
Arag Ball - valve 2 ways 3" M 453007H99
£93.93 excl.
£112.72 incl.
In stock
Expected to ship on Friday 18 September
BPA000117848
Arag Thread Connection 1" BSP 463000142
£5.73 excl.
£6.88 incl.
In stock
Expected to ship on Friday 18 September
Recently viewed
Free shipping
BPA000355636
Cobo PVC seat, with suspension, presence sensor, 478mm, width PVC SC40 SC1078062
£395.48 excl.
£474.58 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000302524
Kramp Grease nipple M6 x 1.0, 180° (6) KRGN61180ZP06B
£1.72 excl.
£2.07 incl.
In stock
Expected to ship on Friday 18 September
BPA000405001
GLT/LHG Plain bearing bush 110x115x60mm ZB11011560BDA
£14.36 excl.
£17.23 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000288367
Kramp Male stud coupling 8L M14x1,5 - R3/8 WD GES8LR38WDKR
£0.75 excl.
£0.90 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000379227
Kverneland Protecting tube sch25 a2285 8 VF1664631997
£81.98 excl.
£98.38 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000236860
GLT/LHG Bearing bush 8x10x5.5mm BB081015055PTFEBR
£0.74 excl.
£0.89 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000188596
GEOline Nozzle cap, bayonet, SW11, black, with gasket, 8253071P025
£0.63 excl.
£0.76 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000347034
Champion Spark plug M14x1.25x9.50mm spanner 19mm 24x RCJ7YW24
£54.46 excl.
£65.35 incl.
In stock
Expected to ship on Friday 18 September
BPA000035502
Non Original Landside LH PO1712 ZX 1153520030N
£30.06 excl.
£36.07 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000213944
Kverneland Boom part 2nd. HC 27-30 R/H A138298794
£2,126.56 excl.
£2,551.88 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000169773

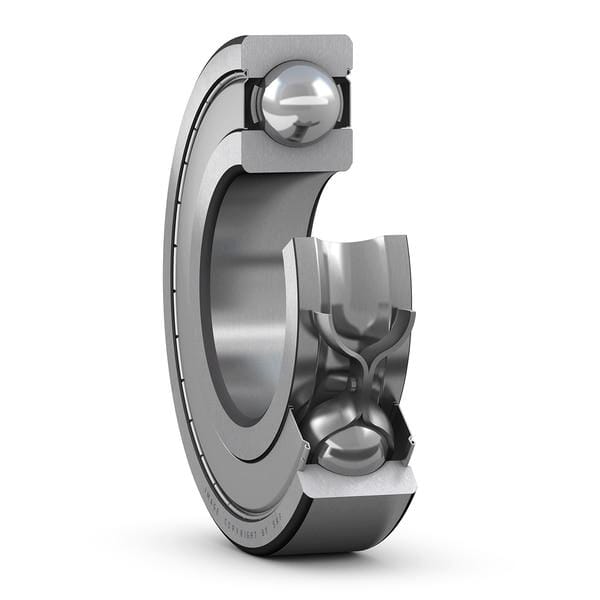

SKF Deep groove ball bearing 35x80x21mm 75006307ZZC3
