£120.96
excl. VAT
£145.15 incl. VAT
£145.15
incl. VAT
£120.96 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details

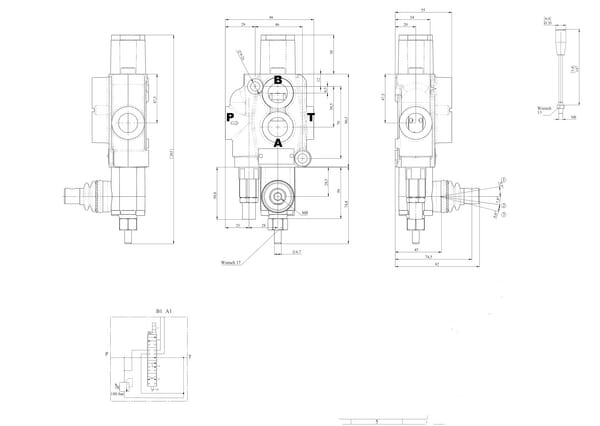

| Bore type code | n/a |
|---|---|
| Connection thread diameter | 3/8 Inch |
| Connection thread type | BSP |
| Connection type | Thread |
| Connection type - male/female | Female |
| Flow rate | 35 l/min |
| Handle length | 147 mm |
| Housing height | 86 mm |
| Housing length | 90.5 mm |
| Housing material | Cast iron |
| Housing width | 55 mm |

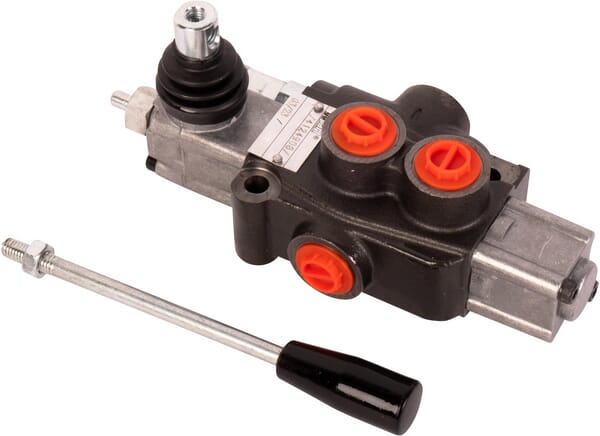

| Includes | Valve with push button, Control lever, The end stop/bracket on the cylinder is not a standard item, you will need to make this part yourself |
| Long description | These valves are specially designed for wood splitters and feature a mechanical end stop. The valve has four positions that allow the hydraulic cylinder to move in four different steps. |
| Max working pressure | 250 BAR |
| Max working temperature | 60 °C |
| Min working temperature | -40 °C |
| Number of ports | 4 |
| Number of positions | 3 |
| Product details | Operation of the four functions :, Position 1: The cylinder, which you have equipped with a mechanical stopper, automatically retracts until it taps the push button on the valve, causing it to switch to neutral position 0., Position 2: The cylinder goes out quickly (differential), the oil from the rod side is added to the bottom side., Position 3: The cylinder slides out with the pump flow and maximum power., Position 0: Neutral position (suitable for open centre system) |
| Sealing material | Nitrile rubber [NBR] |
| Switchable under pressure | Yes |
| Total height | 86 mm |
| Total length | 203.3 mm |
| Type | Self closing valve |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2007 g |
| Dimensions | 516 × 90 × 90 mm |
| Dangerous goods | No |
