£4,888.05
excl. VAT
£5,865.67 incl. VAT
£5,865.67
incl. VAT
£4,888.05 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

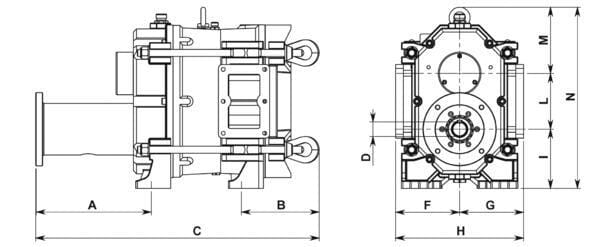

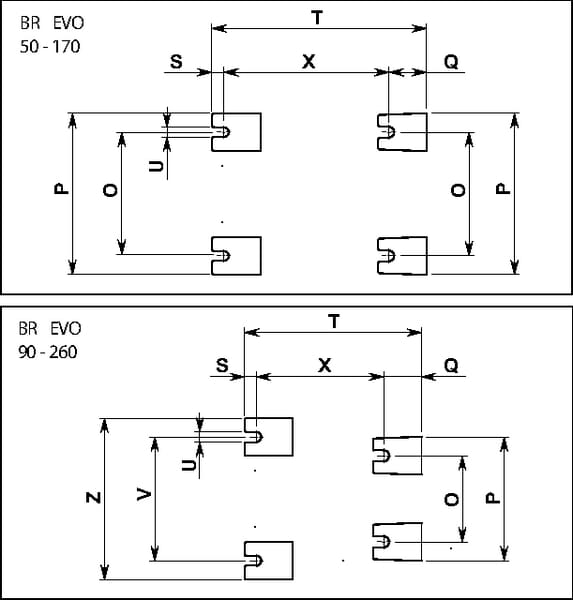

| ADistance end of shaft to mid first bore | 280 mm |
|---|---|

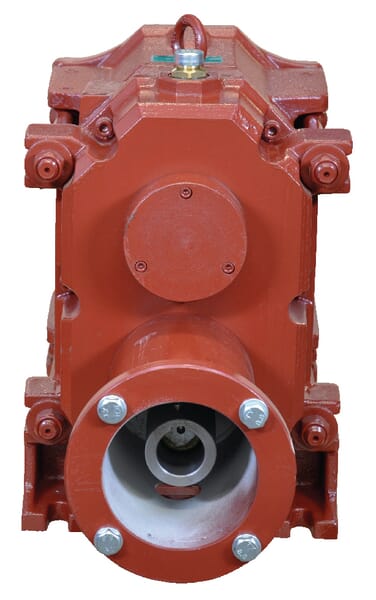

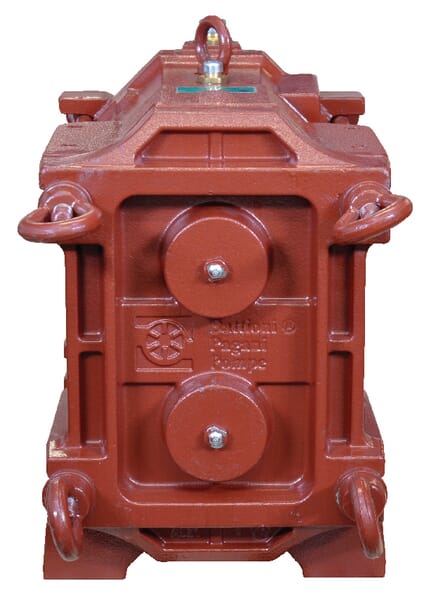

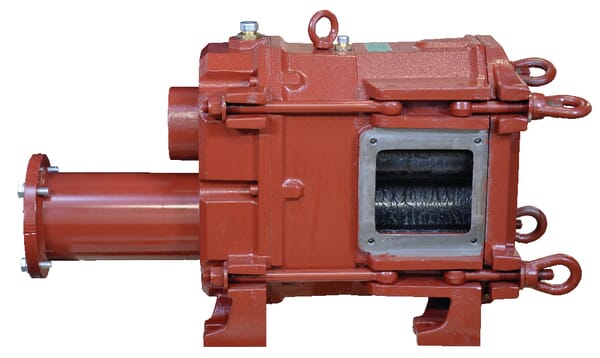

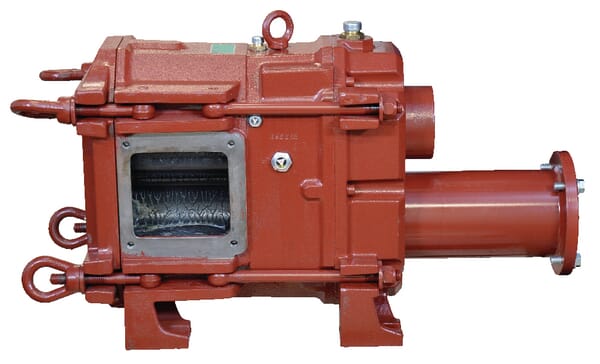

| Application range | The BR-EVO-series displacement pumps from Battioni Pagani have been designed to pump slurry according to the displacement principle, for example from the cellar to the silo |
| BDistance 2nd bore to end | 214 mm |
| Benefits | Lower maintenance costs by maintaining on site, The intermediate chamber filled with oil ensures protection of the drive components |
| CLength | 801 mm |

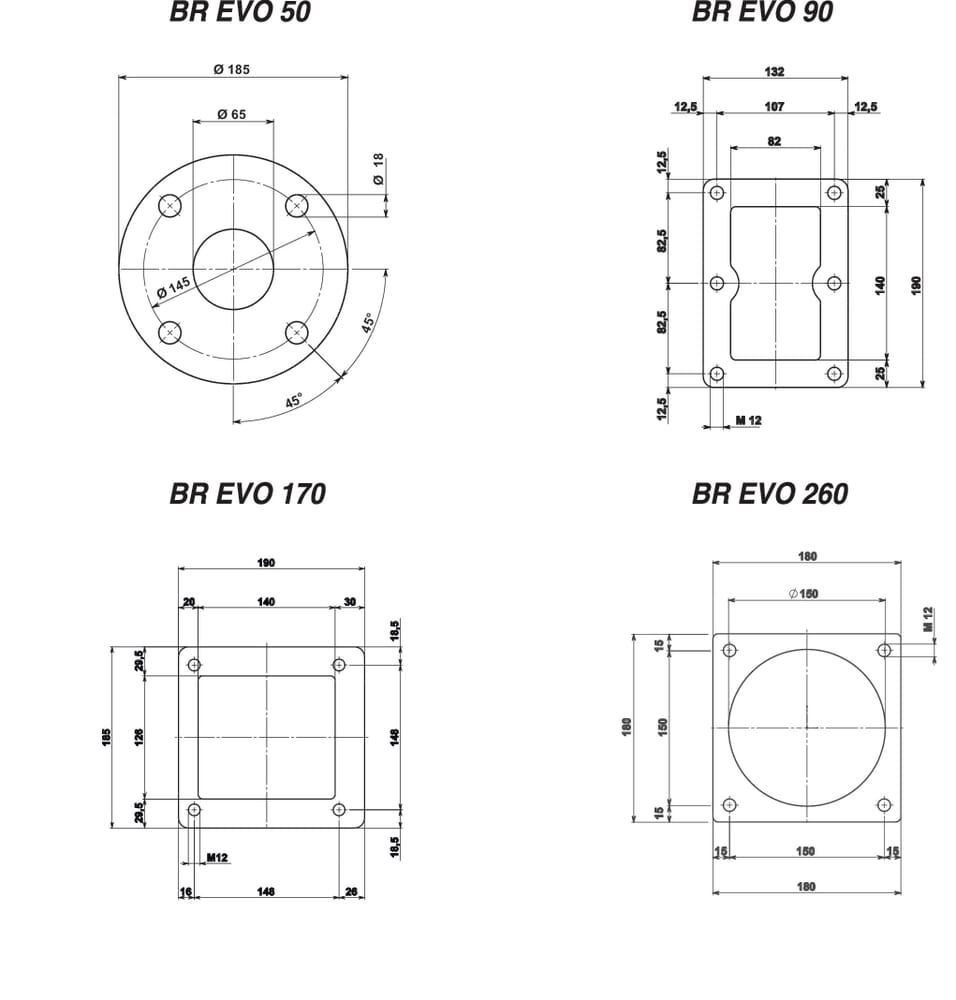

| Connection | 40 |
| Consists of | The BR-EVO-type pumps are supplied with a special tool for removing the rotors and for installing and removing the mechanical seals, Including CE-compliant PTO shaft guard, Without suction and pressure flange |
| Details | Maintenance on site, For convenient cleaning, simply loosen the four eye nuts on the rear cover and remove the cover plate, The rotors, mechanical seals and wear plates can also be replaced on site, The standard oil-filled intermediate chamber ensures lubrication and cooling of the seals |
| Diameter of mounting hole | 22 mm |
| Distance mounting holes center to center short side | 230 mm |
| Distance underside to center shaft | 153 mm |
| FDistance center shaft to left side | 150 mm |

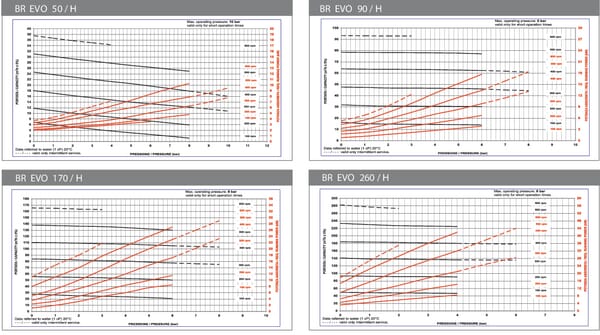

| Flow max. | 2767 l/min |
| GDistance center shaft to right side | 150 mm |
| HWidth | 300 mm |
| LDistance center shafts | 144 mm |
| MDistance center to top | 171 mm |
| NHeight with eye | 468 mm |
| P max. (bar) | 8 BAR |
| PMounting width | 300 mm |
| Power requirement (max. pressure) | 29 kW |

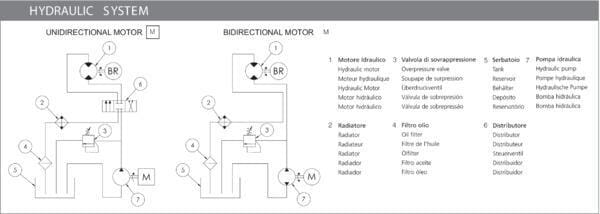

| Properties | The BR-EVO-series pumps can be supplied in three versions: direct drive (D), pulley drive (P) or hydraulic drive (H), Tungsten carbide seals between pump housing and intermediate chamber, Replaceable steel cover plates, The three-blade rotor is designed for suction heights of up to an 8-metre head of water, The BR-EVO-type displacement pumps can be operated both clockwise and anti-clockwise |
| QPlate length | 70 mm |
| Rotation max. | 600 r/min |
| TDistance T | 399 mm |
| UEye width | 19 mm |
| Unit | Each |
| Weight | 220 kg |
| XDistance bore width | 307 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 170000 g |
| Dimensions | 800 × 350 × 500 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000101392
Battioni Pagani Air pre-cleaner 40026AOO
£177.90 excl.
£213.48 incl.
In stock
Expected to ship on Monday 21 September
BPA000231457

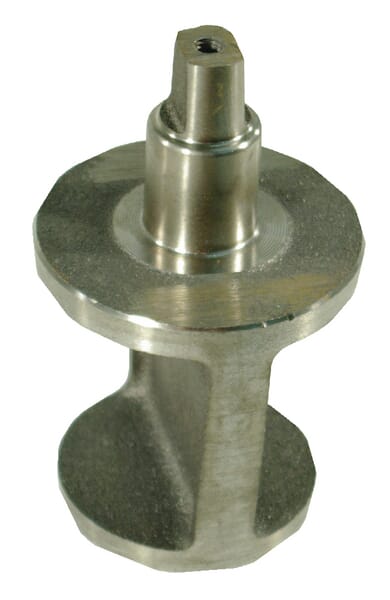

Battioni Pagani Stop Cone AM62
£27.60 excl.
£33.12 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000127890
Battioni Pagani Hydraulic motor 100cc D25 5020400033
£627.36 excl.
£752.83 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000363717

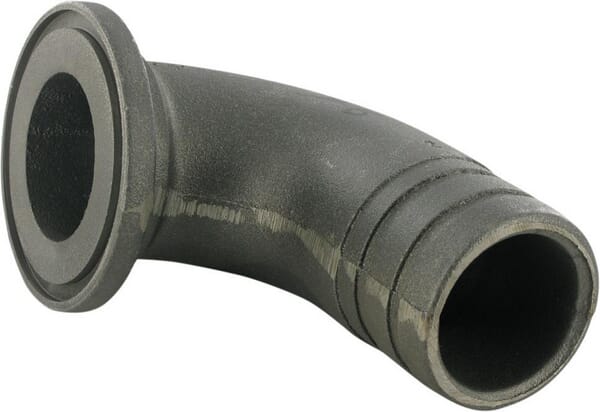

Battioni Pagani Pipe diameter 76mm ST145
£76.78 excl.
£92.14 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000236700

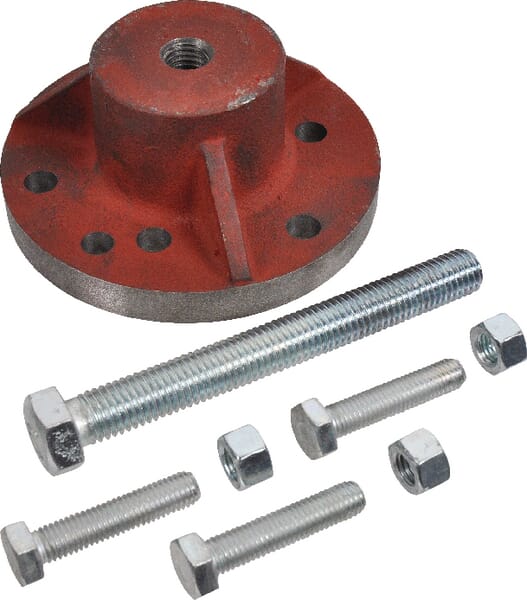

Battioni Pagani EVO 90-260 rotor disAssembly set BRE72
£340.55 excl.
£408.66 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000276987
Battioni Pagani Stop Dowel G56
£1.21 excl.
£1.45 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000102441

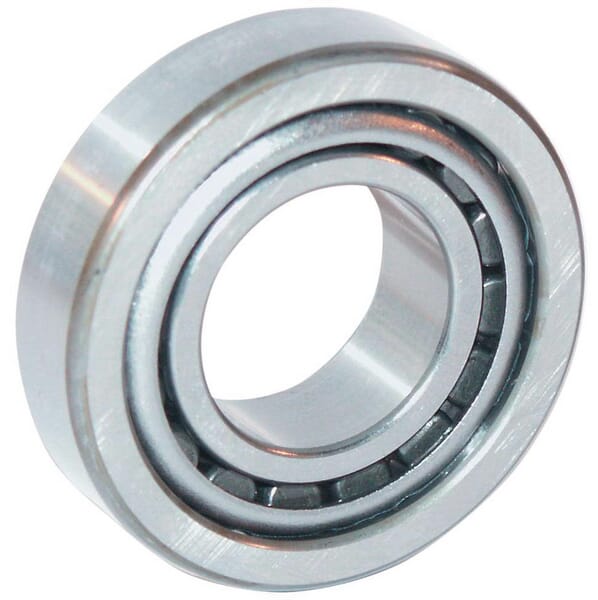

Timken Tapered roller bearing 66.68x112.72x30.17mm 39843920
