£5,950.74
excl. VAT
£7,140.88 incl. VAT
£7,140.88
incl. VAT
£5,950.74 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

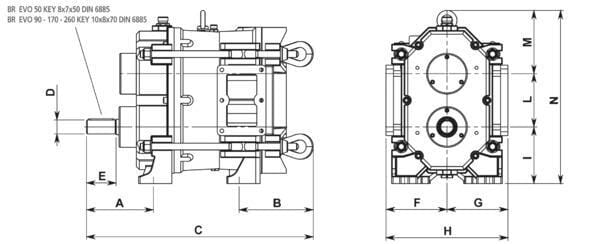

| ADistance end of shaft to mid first bore | 160 mm |
|---|---|
| Application range | The BR-EVO-series displacement pumps from Battioni Pagani have been designed to pump slurry according to the displacement principle, for example from the cellar to the silo |
| BDistance 2nd bore to end | 217 mm |
| Benefits | Lower maintenance costs by maintaining on site, The intermediate chamber filled with oil ensures protection of the drive components |
| CLength | 676 mm |

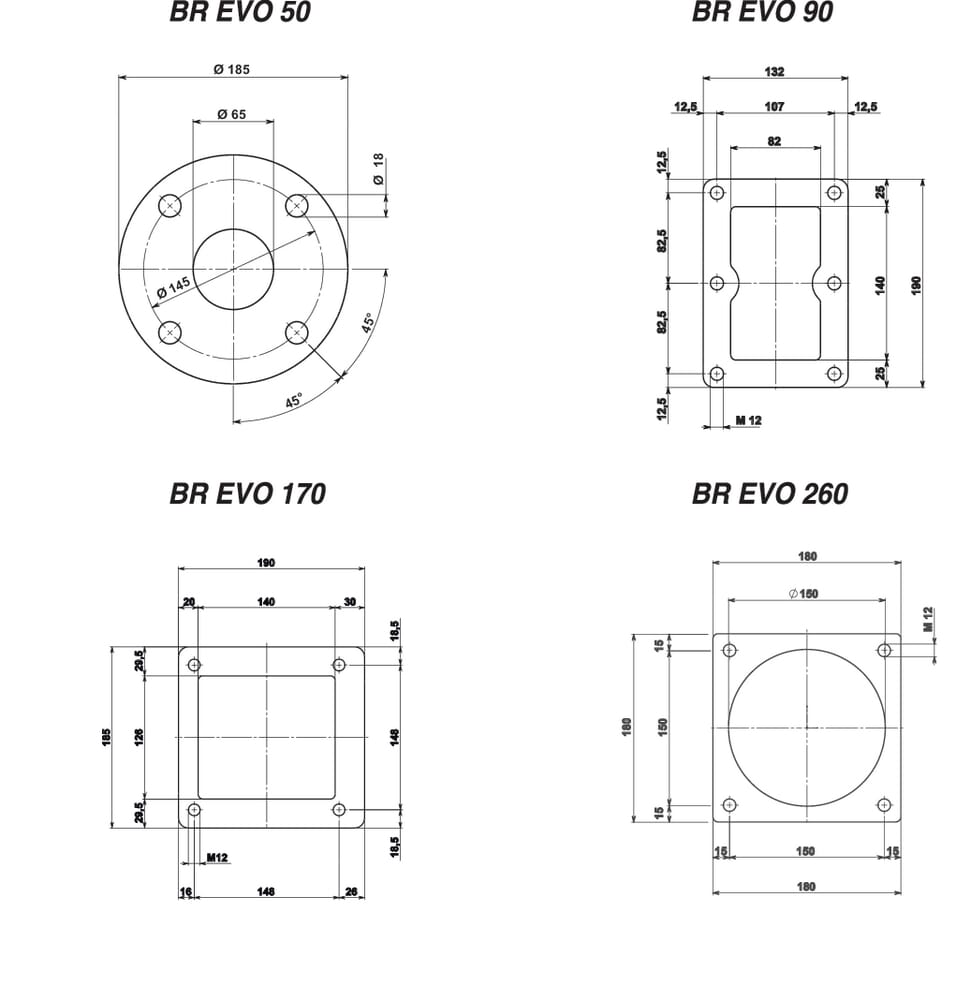

| Connection | 38 |
| Consists of | The BR-EVO-type pumps are supplied with a special tool for removing the rotors and for installing and removing the mechanical seals, Including CE-compliant PTO shaft guard, Without suction and pressure flange |
| Details | Maintenance on site, For convenient cleaning, simply loosen the four eye nuts on the rear cover and remove the cover plate, The rotors, mechanical seals and wear plates can also be replaced on site, The standard oil-filled intermediate chamber ensures lubrication and cooling of the seals |
| Diameter of mounting hole | 20 mm |
| Distance mounting holes center to center short side | 190 mm |
| Distance mounting holes short side center to center | 305 mm |
| Distance underside to center shaft | 174 mm |
| FDistance center shaft to left side | 189 mm |

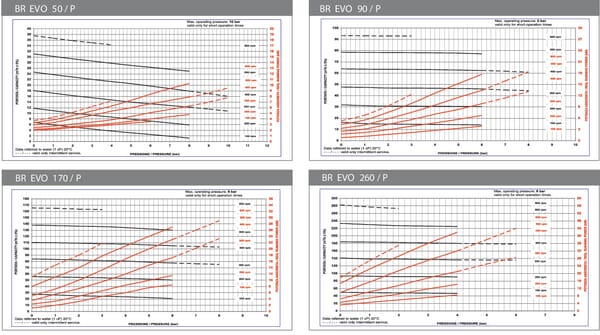

| Flow max. | 4718 l/min |
| GDistance center shaft to right side | 189 mm |
| HWidth | 378 mm |
| LDistance between shafts | 176 mm |
| MDistance center to top | 195 mm |
| NTotal height | 545 mm |
| P max. (bar) | 6 BAR |
| PMounting width | 260 mm |
| Power requirement (max. pressure) | 44 kW |
| Properties | The BR-EVO-series pumps can be supplied in three versions: direct drive (D), pulley drive (P) or hydraulic drive (H), Tungsten carbide seals between pump housing and intermediate chamber, Replaceable steel cover plates, The three-blade rotor is designed for suction heights of up to an 8-metre head of water, The BR-EVO-type displacement pumps can be operated both clockwise and anti-clockwise |
| QPlate length | 61 mm |
| Rotation max. | 600 r/min |

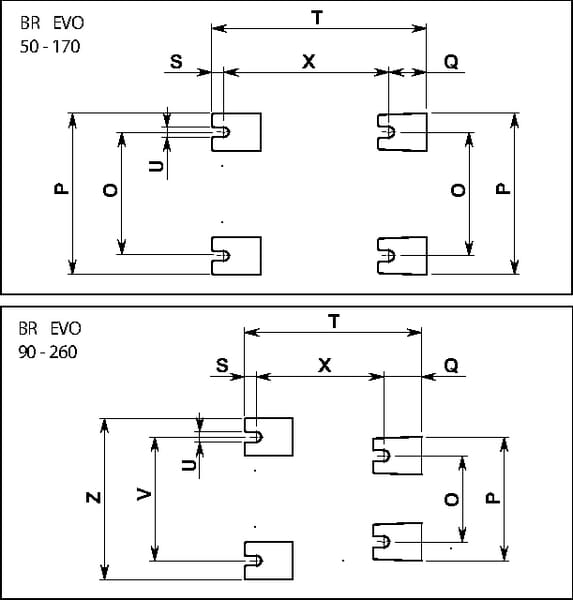

| TDistance T | 381 mm |
| UEye width | 20 mm |
| Unit | Each |
| Weight | 214 kg |
| XDistance bore width | 300 mm |
| ZWidth outside | 370 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | — |
| Dimensions | — |
| Dangerous goods | No |
You might also like
Free shipping
BPA000101850
Battioni Pagani Front pin Ballast 16000/D 4011907119
£222.34 excl.
£266.81 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000236681
Battioni Pagani O-ring 1.24x2.62mm 70 shore black BRE40F
£155.08 excl.
£186.10 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000363742

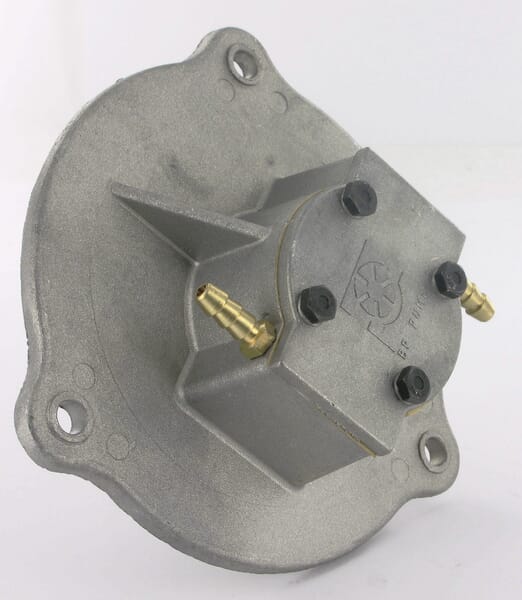

Battioni Pagani Oil pump right SE/STAR ST218DX
£67.73 excl.
£81.28 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000047776

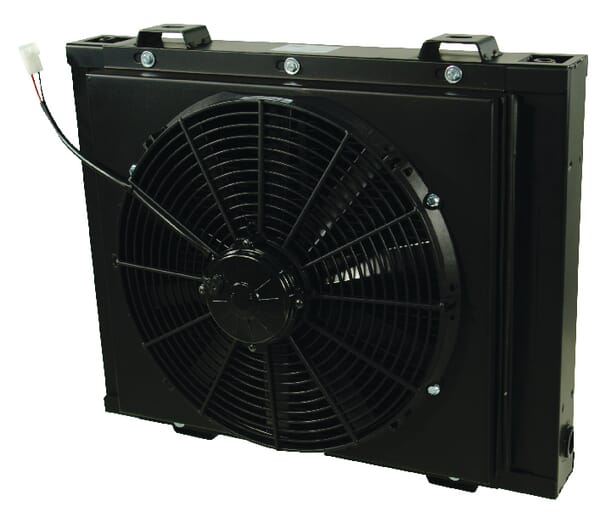

Battioni Pagani Radiator+ventilator 24 V 1502C24
£1,541.37 excl.
£1,849.64 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000313001

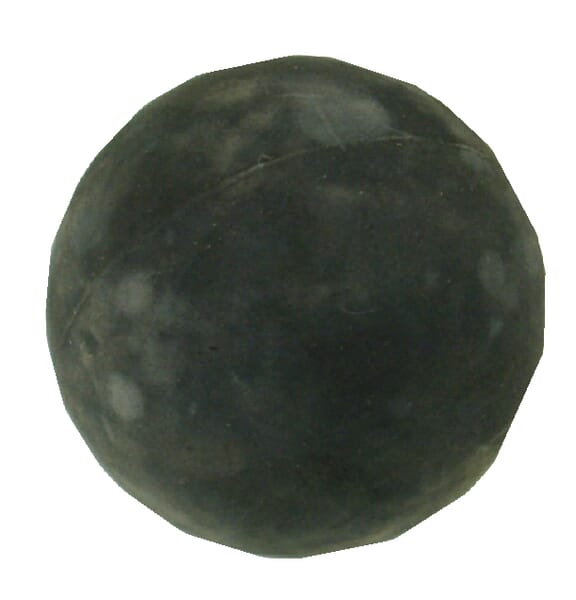

Battioni Pagani Ball cock rubber 55mm M41
£8.06 excl.
£9.67 incl.
In stock
Expected to ship on Monday 21 September
BPA000234004

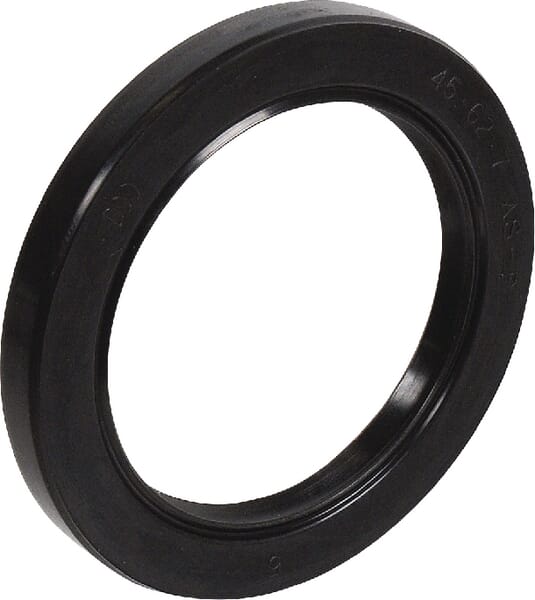

Battioni Pagani NBR 10bar EVO-260 seal ring BREVO68N
