£3,653.20
excl. VAT
£4,383.84 incl. VAT
£4,383.84
incl. VAT
£3,653.20 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

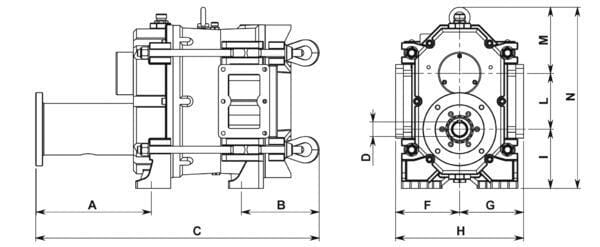

| ADistance end of shaft to mid first bore | 211 mm |
|---|---|

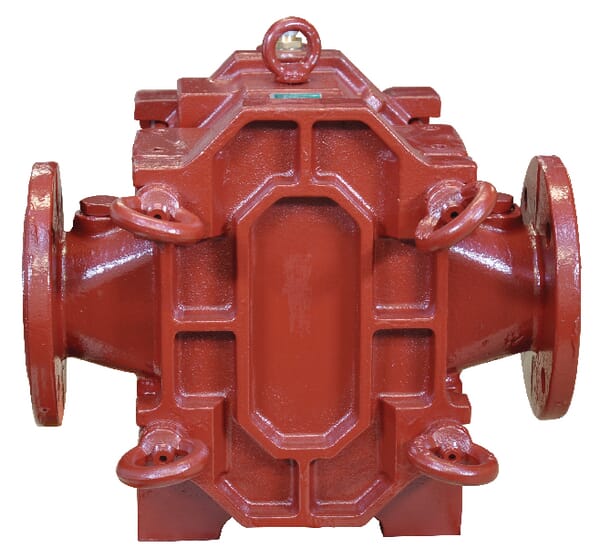

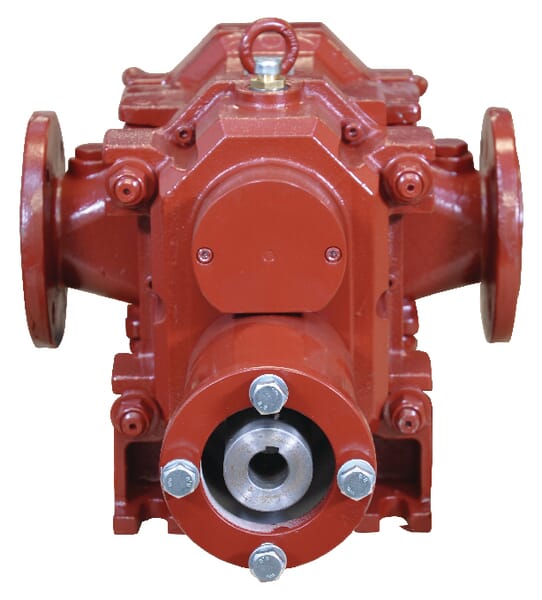

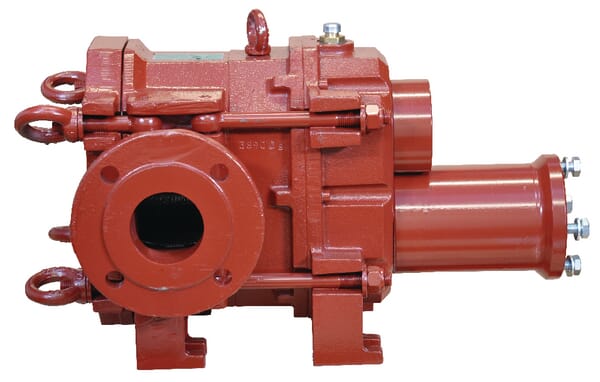

| Application range | The BR-EVO-series displacement pumps from Battioni Pagani have been designed to pump slurry according to the displacement principle, for example from the cellar to the silo |
| BDistance 2nd bore to end | 183 mm |
| Benefits | Lower maintenance costs by maintaining on site, The intermediate chamber filled with oil ensures protection of the drive components |
| CLength | 572 mm |
| Connection | 25 |
| Consists of | The BR-EVO-type pumps are supplied with a special tool for removing the rotors and for installing and removing the mechanical seals, Including CE-compliant PTO shaft guard, Without suction and pressure flange |
| Details | Maintenance on site, For convenient cleaning, simply loosen the four eye nuts on the rear cover and remove the cover plate, The rotors, mechanical seals and wear plates can also be replaced on site, The standard oil-filled intermediate chamber ensures lubrication and cooling of the seals |
| Diameter of mounting hole | 21 mm |
| Distance mounting holes center to center short side | 170 mm |
| Distance underside to center shaft | 120 mm |
| FDistance center shaft to left side | 187.5 mm |
| Flow max. | 633 l/min |
| GDistance center shaft to right side | 187.5 mm |
| HWidth | 375 mm |
| LDistance center shafts | 99 mm |
| MDistance center to top | 130 mm |
| NHeight with eye | 349 mm |
| P max. (bar) | 10 BAR |
| PMounting width | 225 mm |
| Power requirement (max. pressure) | 11 kW |

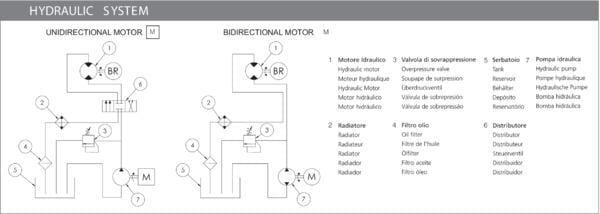

| Properties | The BR-EVO-series pumps can be supplied in three versions: direct drive (D), pulley drive (P) or hydraulic drive (H), Tungsten carbide seals between pump housing and intermediate chamber, Replaceable steel cover plates, The three-blade rotor is designed for suction heights of up to an 8-metre head of water, The BR-EVO-type displacement pumps can be operated both clockwise and anti-clockwise |

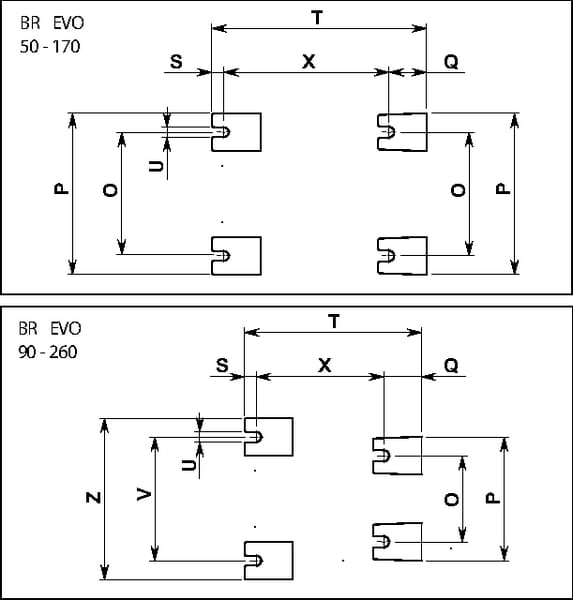

| QPlate length | 50 mm |
| Rotation max. | 600 r/min |
| TDistance T | 249 mm |
| UEye width | 18 mm |
| Unit | Each |
| Weight | 85 kg |
| XDistance bore width | 178 mm |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 85000 g |
| Dimensions | 600 × 400 × 400 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000400700
Battioni Pagani Front axle M36x2 W171M
£150.43 excl.
£180.52 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000321271

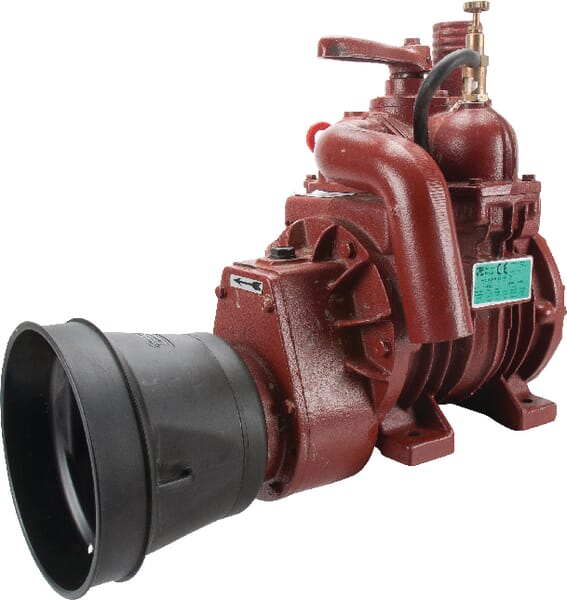

Battioni Pagani Vacuum pump standard MEC1600M
£1,183.70 excl.
£1,420.44 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000150466

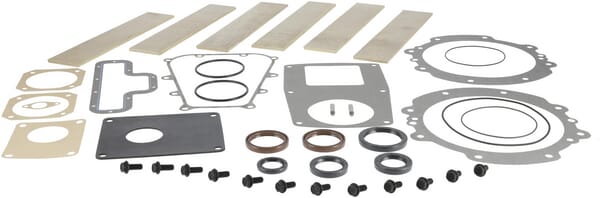

Battioni Pagani Rebuild kit for KPS 550 6010201088
£952.26 excl.
£1,142.71 incl.
In stock
Expected to ship on Friday 18 September
BPA000233959
Battioni Pagani Inner ring BR-EVO170 BREV88
£35.91 excl.
£43.09 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000236659

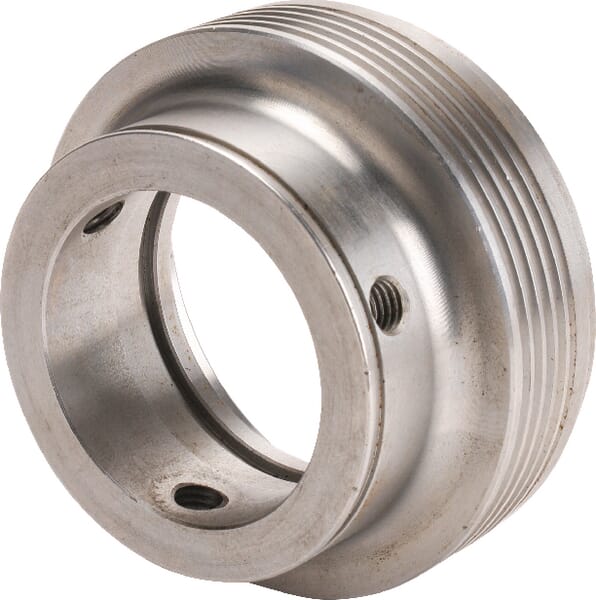

Battioni Pagani BR-EVO 90/170 holder BRE18
£375.05 excl.
£450.06 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000345736
Battioni Pagani Circlip R91
£1.27 excl.
£1.52 incl.
In stock
Expected to ship on Friday 18 September
Recently viewed
Free shipping
BPA000207465
Kverneland PTO shaft W2300 Sc15Sw A132189300
£1,035.31 excl.
£1,242.37 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000169767
SKF Deep groove ball bearing 30x72x19mm 75006306ZZC3
£18.22 excl.
£21.86 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000134184

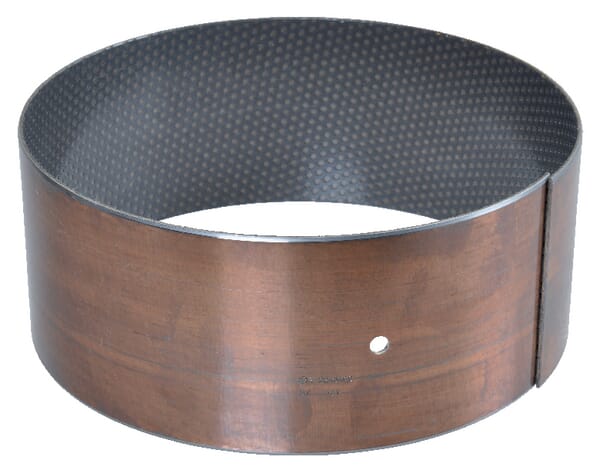

Trioliet-Mullos PAP 240x245x100 slip bearing 51867
£141.85 excl.
£170.22 incl.
In stock
Expected to ship on Friday 18 September
BPA000307481
Kramp Polo T-shirt black L KW106730001054
£19.43 excl.
£23.32 incl.
In stock
Expected to ship on Friday 18 September
BPA000328449
Kramp O-ring 36.17x2.62 75 shore Viton 10x OR3617262VP010
£15.12 excl.
£18.14 incl.
In stock
Expected to ship on Monday 21 September
BPA000147997
Husqvarna Trimmer line Whisper Twist 2.7mm x 210m 597669132
£70.38 excl.
£84.46 incl.
In stock
Expected to ship on Friday 18 September
BPA000405114
GLT/LHG Bearing bush 16x18x15mm ZB161815DIN
£0.97 excl.
£1.16 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000340389

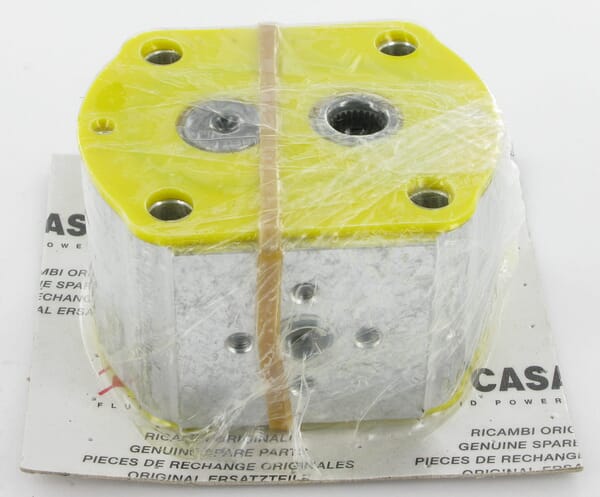

Casappa Tandem Pump PLP20.8-D0-86-S6-LEA/EA-N-I-FS PLP208DII
