Product details

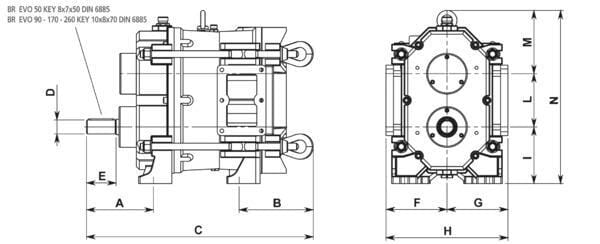

| ADistance end of shaft to mid first bore | 163 mm |
|---|---|

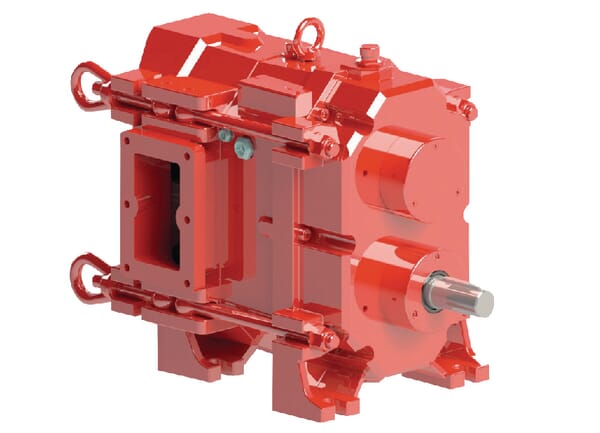

| Application range | The BR-EVO-series displacement pumps from Battioni Pagani have been designed to pump slurry according to the displacement principle, for example from the cellar to the silo |
| BDistance 2nd bore to end | 214 mm |
| Benefits | Lower maintenance costs by maintaining on site, The intermediate chamber filled with oil ensures protection of the drive components |
| CLength | 614 mm |
| Connection | 38 |

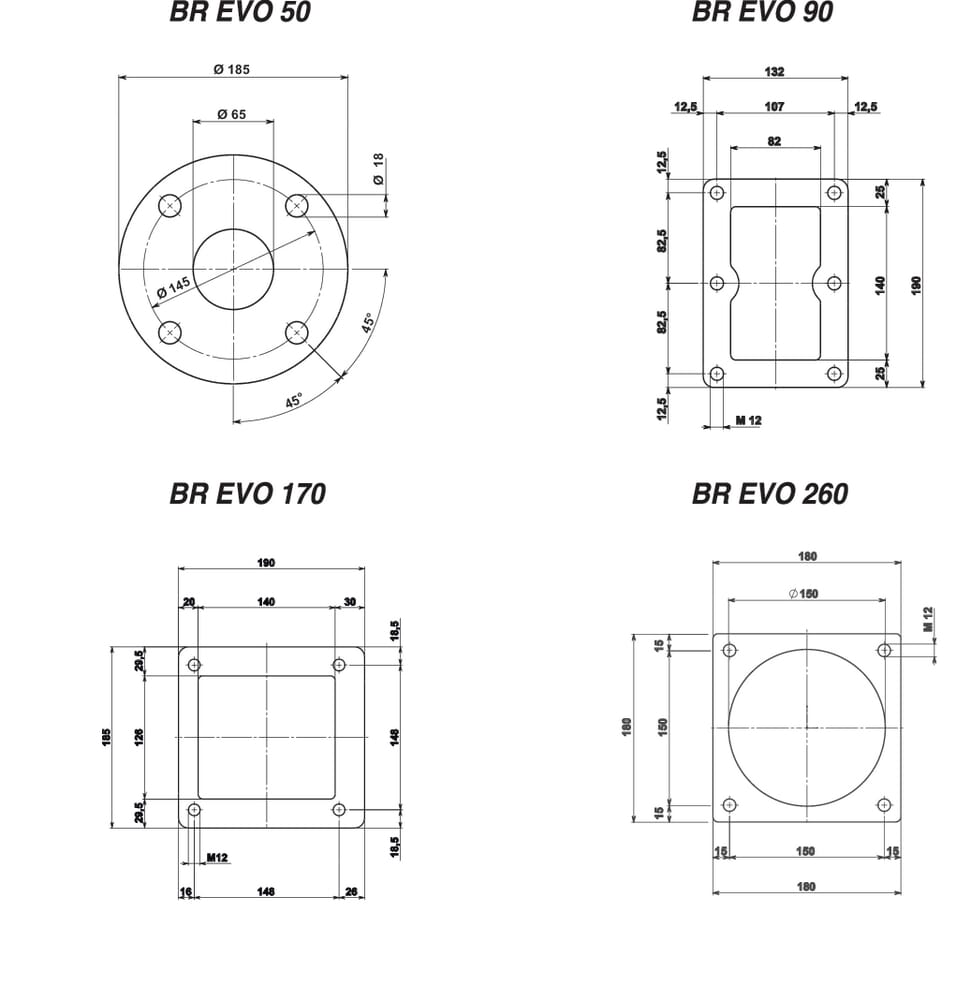

| Consists of | The BR-EVO-type pumps are supplied with a special tool for removing the rotors and for installing and removing the mechanical seals, Including CE-compliant PTO shaft guard, Without suction and pressure flange |
| Details | Maintenance on site, For convenient cleaning, simply loosen the four eye nuts on the rear cover and remove the cover plate, The rotors, mechanical seals and wear plates can also be replaced on site, The standard oil-filled intermediate chamber ensures lubrication and cooling of the seals |
| Diameter of mounting hole | 22 mm |
| Distance mounting holes center to center short side | 160 mm |
| Distance mounting holes short side center to center | 230 mm |
| Distance underside to center shaft | 153 mm |
| FDistance center shaft to left side | 165 mm |

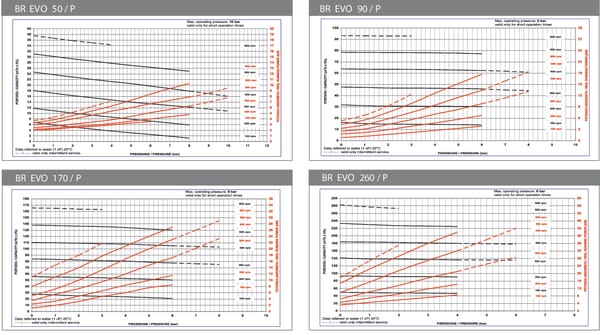

| Flow max. | 1567 l/min |
| GDistance center shaft to right side | 165 mm |
| HWidth | 330 mm |
| LDistance between shafts | 144 mm |
| MDistance center to top | 171 mm |
| NTotal height | 468 mm |
| P max. (bar) | 8 BAR |
| PMounting width | 230 mm |
| Power requirement (max. pressure) | 19 kW |
| Properties | The BR-EVO-series pumps can be supplied in three versions: direct drive (D), pulley drive (P) or hydraulic drive (H), Tungsten carbide seals between pump housing and intermediate chamber, Replaceable steel cover plates, The three-blade rotor is designed for suction heights of up to an 8-metre head of water, The BR-EVO-type displacement pumps can be operated both clockwise and anti-clockwise |
| QPlate length | 70 mm |
| Rotation max. | 600 r/min |

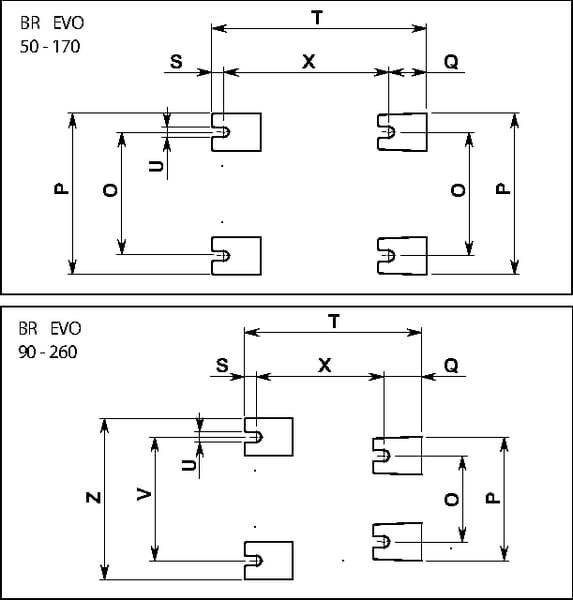

| TDistance T | 329 mm |
| UEye width | 19 mm |
| Unit | Each |
| Weight | 150 kg |
| XDistance bore width | 237 mm |
| ZWidth outside | 300 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 150000 g |
| Dimensions | 660 × 500 × 500 mm |
| Dangerous goods | No |
You might also like
BPA000233952
Battioni Pagani Oil seal BR-EVO 170 BREV67
£22.00 excl.
£26.40 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000101841
Battioni Pagani Reduction key 10/8x7x40 mm 4011806020
£52.09 excl.
£62.51 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000235549

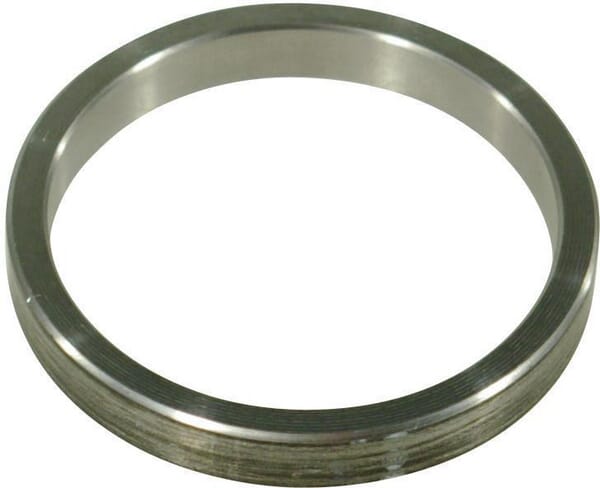

Battioni Pagani Disc 70x60x8 B60
£21.04 excl.
£25.25 incl.
In stock
Expected to ship on Monday 21 September
BPA000345730

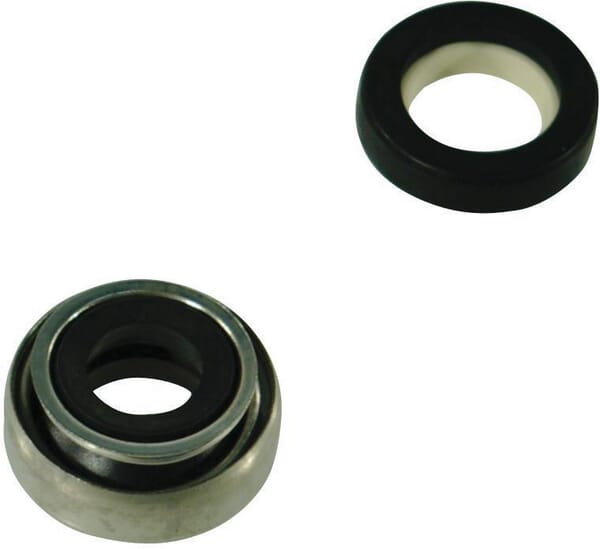

Battioni Pagani Seal kit for pump 15mm R90
£23.48 excl.
£28.18 incl.
In stock
Expected to ship on Monday 21 September
BPA000129579

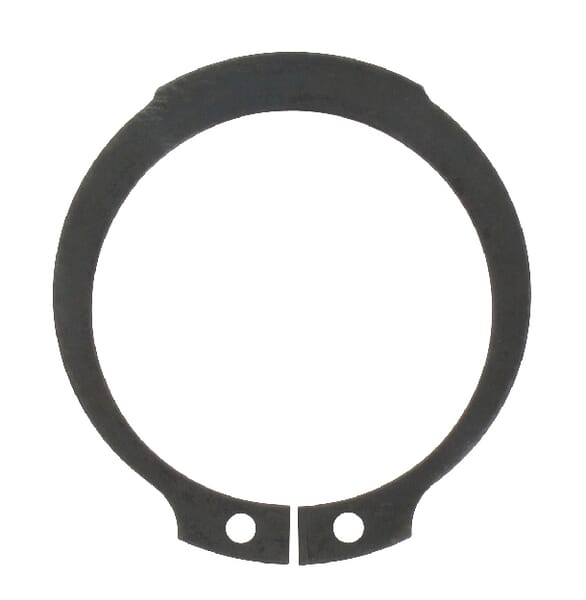

Battioni Pagani Circlip DIN471 50x3 5050507016
