£1,446.85
excl. VAT
£1,736.22 incl. VAT
£1,736.22
incl. VAT
£1,446.85 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Liquid manure service applications, Agricultural tankers or vacuum trucks, Biogas industry, Waste water treatment plants, General industrial service applications |
|---|---|

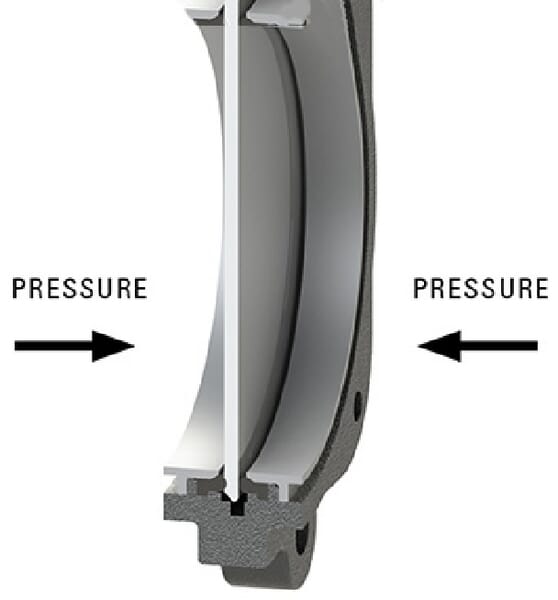

| Benefits | Bi-directional, High durability |

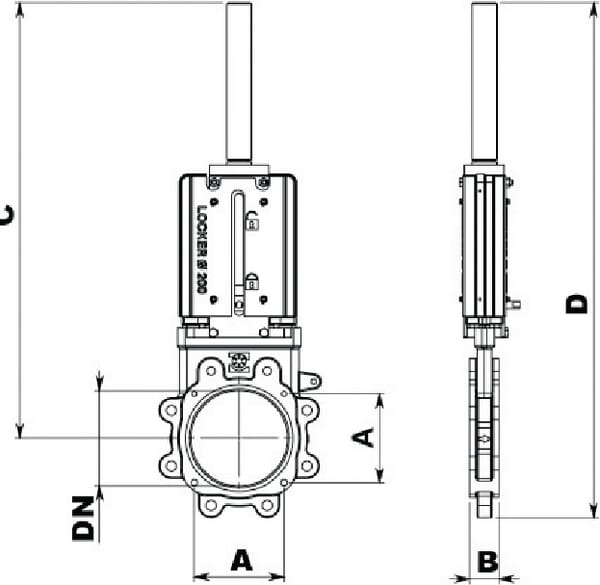

| BFlange thickness | 62 mm |
| CPassage hole centre to lever end distance | 1100 mm |

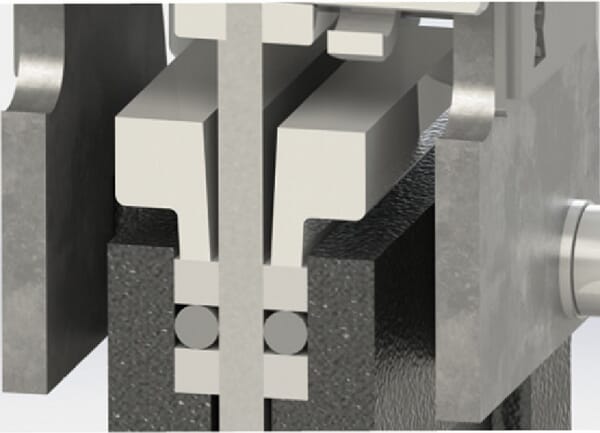

| Details | Offers excellent protection to oxidating and corrosion, even with slurry, Durable sealing system prevents leakages |
| DNPassage hole nominal diameter | 250 mm |
| DTotal height | 1295 mm |
| Flange connection type | DIN PN10 - UNI EN 1092-1, UNI EN ISO 12100:2010, DIR: 2006/42 CE, DIR: 97/23CE |
| Max medium temperature | 90 °C |
| Max working pressure | 8 BAR |
| Min medium temperature | -20 °C |

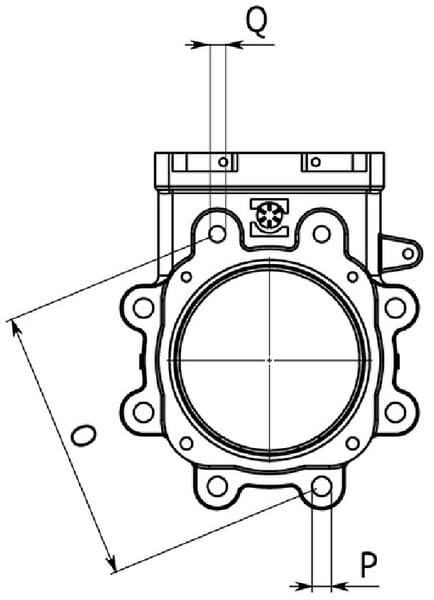

| OFlange mounting bolts/holes circle diameter | 350 mm |
| PFlange 2 mounting bolts/holes thread diameter | M22 |

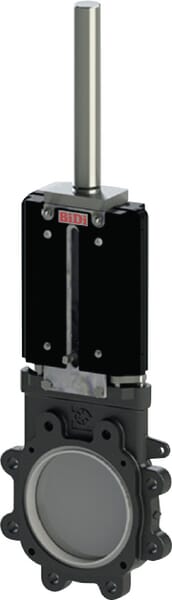

| Properties | Open/close indicator on gate valve, One-piece casting body, Double acting cylinder |
| QFlange mounting bolts/holes thread diameter | M20 |
| Unit | Each |
| Weight | 46 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 60000 g |
| Dimensions | 900 × 450 × 190 mm |
| Dangerous goods | No |
You might also like
BPA000233950

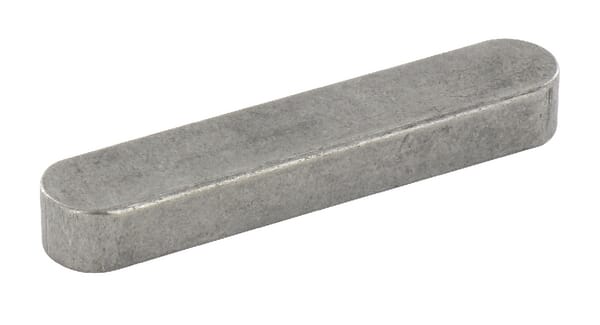

Battioni Pagani Key 14x9x70 BR-EVO 170 BREV34
£14.81 excl.
£17.77 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000363794

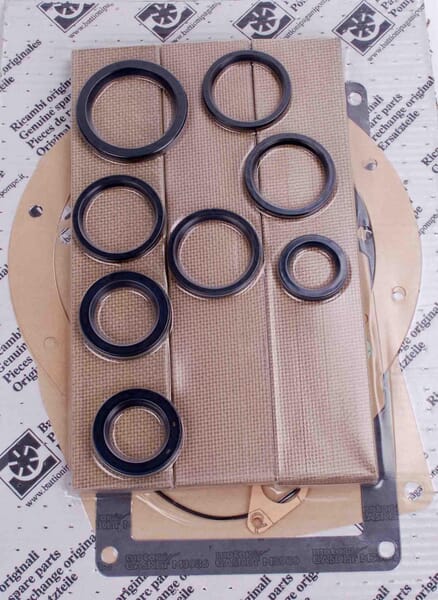

Battioni Pagani Repair kit STAR60 with standard vanes ST7KIT
£202.52 excl.
£243.02 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000321313
Battioni Pagani Vacuum pump double tank connection MEC6500GDU
£2,489.93 excl.
£2,987.92 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000152737

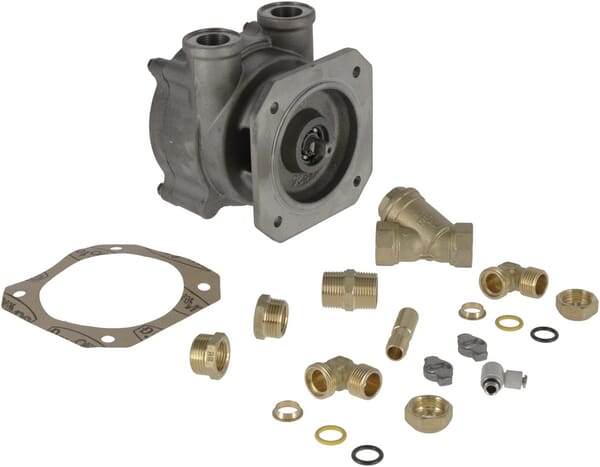

Battioni Pagani Water-cooling back pump kit 6080200537
£612.04 excl.
£734.45 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000321252

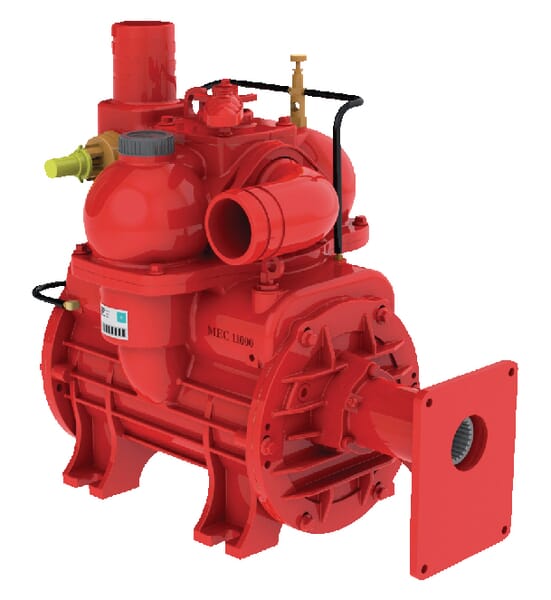

Battioni Pagani Vacuum pump hydraulic drive MEC11000H
£2,454.64 excl.
£2,945.57 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000235643

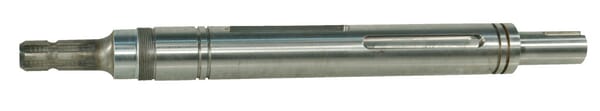

Battioni Pagani Shaft BR 40 D B740D
