£1,695.38
excl. VAT
£2,034.46 incl. VAT
£2,034.46
incl. VAT
£1,695.38 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Liquid manure service applications, Agricultural tankers or vacuum trucks, Biogas industry, Waste water treatment plants, General industrial service applications |
|---|---|

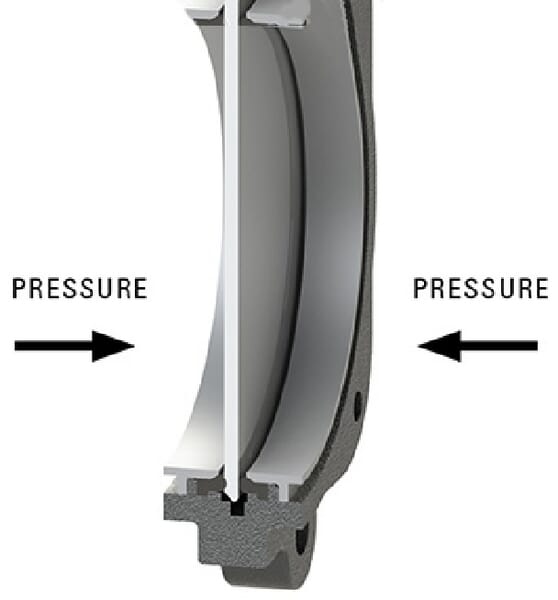

| Benefits | Bi-directional, High durability |

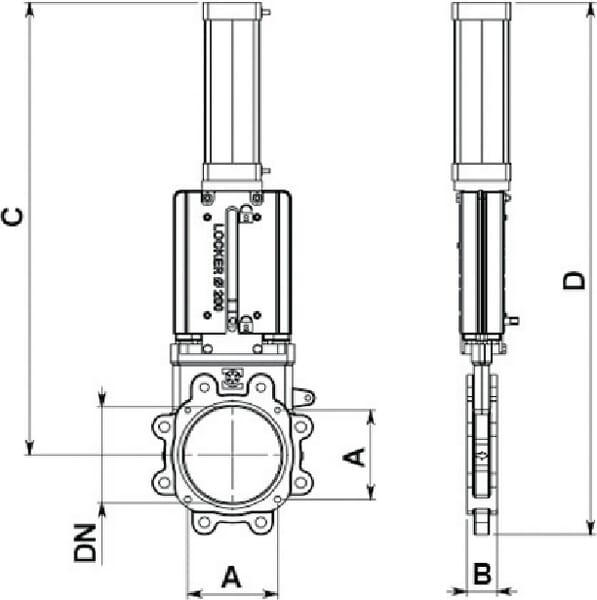

| BFlange thickness | 62 mm |
| CPassage hole centre to lever end distance | 995 mm |

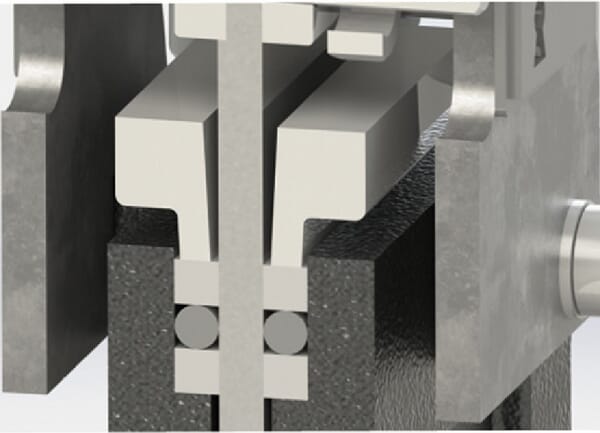

| Details | Offers excellent protection to oxidating and corrosion, even with slurry, Durable sealing system prevents leakages |
| DNPassage hole nominal diameter | 250 mm |
| DTotal height | 1190 mm |
| Flange connection type | DIN PN10 - UNI EN 1092-1, UNI EN ISO 12100:2010, DIR: 2006/42 CE, DIR: 97/23CE |
| Max medium temperature | 90 °C |
| Max working pressure | 8 BAR |
| Min medium temperature | -20 °C |

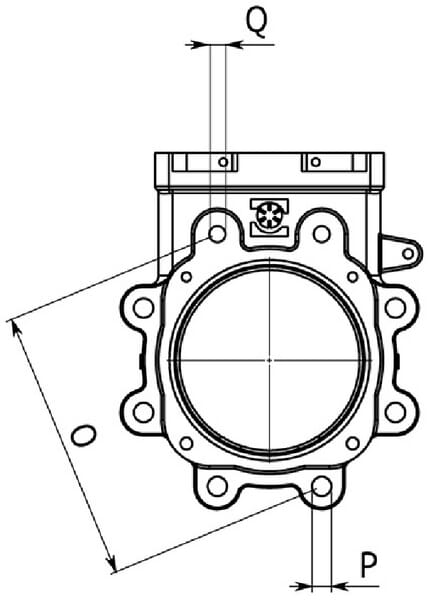

| OFlange mounting bolts/holes circle diameter | 350 mm |
| PFlange 2 mounting bolts/holes thread diameter | M22 |
| Properties | Open/close indicator on gate valve, One-piece casting body |
| QFlange mounting bolts/holes thread diameter | M20 |
| Unit | Each |
| Weight | 47 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 45000 g |
| Dimensions | 865 × 380 × 135 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000236531
Battioni Pagani Clamp device BR-EVO 50 BR42DF
£124.62 excl.
£149.54 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000127894
Battioni Pagani Motor gasket set KM GR 3.5 SX 5020410001
£39.78 excl.
£47.74 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000245410
Battioni Pagani Rotor housing MEC13500 CMEC
£1,048.30 excl.
£1,257.96 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000233974
Battioni Pagani Cover plate BR-EVO 260 BREVO26
£125.28 excl.
£150.34 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000231394
Battioni Pagani Oil Discharge plug M10x16 AM23
£1.54 excl.
£1.85 incl.
In stock
Expected to ship on Monday 21 September
BPA000276629

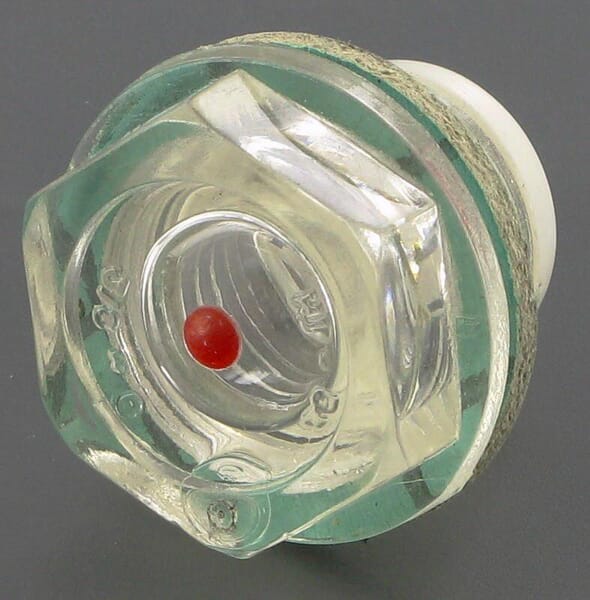

Battioni Pagani Level Plug diameter 3/8'' G28
