£2,257.31
excl. VAT
£2,708.77 incl. VAT
£2,708.77
incl. VAT
£2,257.31 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Liquid manure service applications, Agricultural tankers or vacuum trucks, Biogas industry, Waste water treatment plants, General industrial service applications |
|---|---|

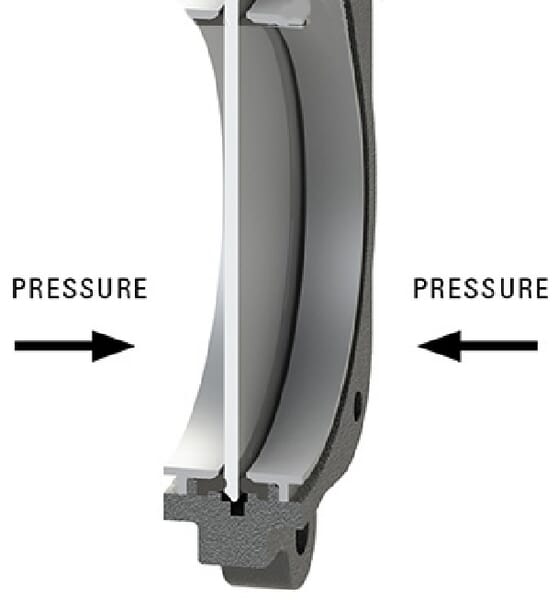

| Benefits | Bi-directional, High durability |

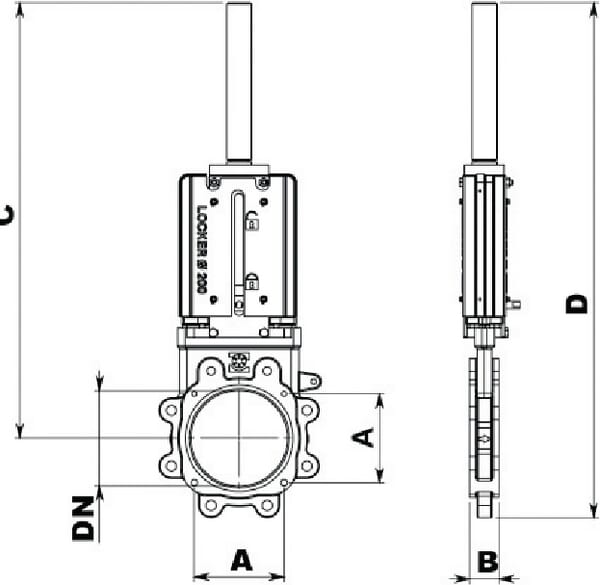

| BFlange thickness | 62 mm |
| CPassage hole centre to lever end distance | 1200 mm |
| Details | Offers excellent protection to oxidating and corrosion, even with slurry, Durable sealing system prevents leakages |
| DNPassage hole nominal diameter | 300 mm |
| DTotal height | 1420 mm |
| Flange connection type | DIN PN10 - UNI EN 1092-1, UNI EN ISO 12100:2010, DIR: 2006/42 CE, DIR: 97/23CE |
| Max medium temperature | 90 °C |
| Max working pressure | 7 BAR |
| Min medium temperature | -20 °C |

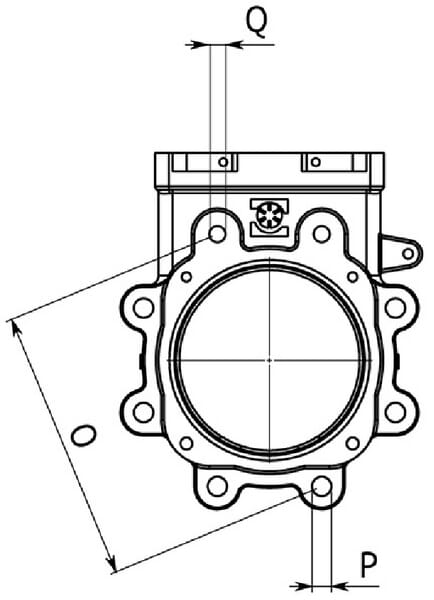

| OFlange mounting bolts/holes circle diameter | 400 mm |
| PFlange 2 mounting bolts/holes thread diameter | M22 |
| Properties | Open/close indicator on gate valve, One-piece casting body, Double acting cylinder |
| QFlange mounting bolts/holes thread diameter | M20 |
| Unit | Each |
| Weight | 55 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 56400 g |
| Dimensions | 1440 × 420 × 95 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000101853
Battioni Pagani Front Pin 4011912008
£275.21 excl.
£330.25 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000129553
Battioni Pagani Screw 5050207028
£9.61 excl.
£11.53 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000311325

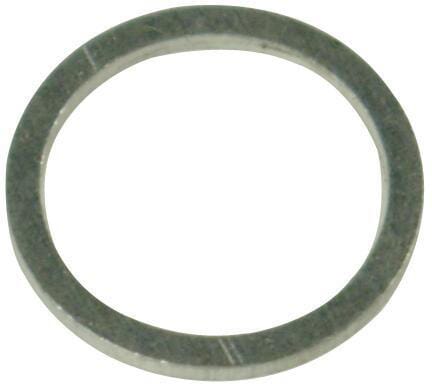

Battioni Pagani Disc SE M101
