£629.77
excl. VAT
£755.72 incl. VAT
£755.72
incl. VAT
£629.77 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details

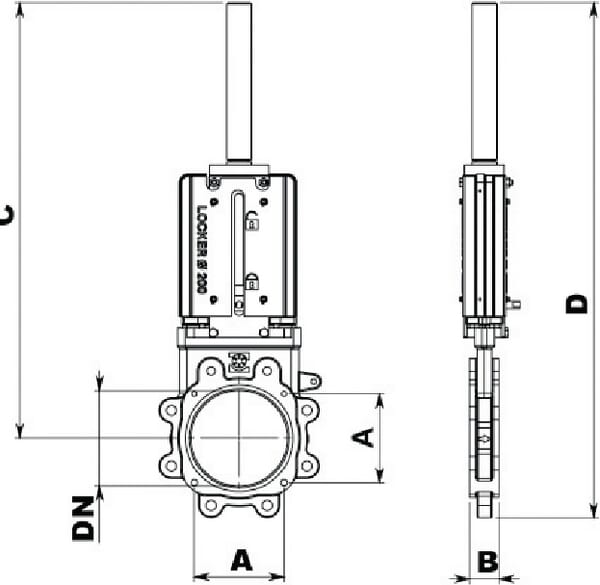

| AFlange mounting bolts/holes distance | 150 mm |
|---|---|
| Application range | Liquid manure service applications, Agricultural tankers or vacuum trucks, Biogas industry, Waste water treatment plants, General industrial service applications |

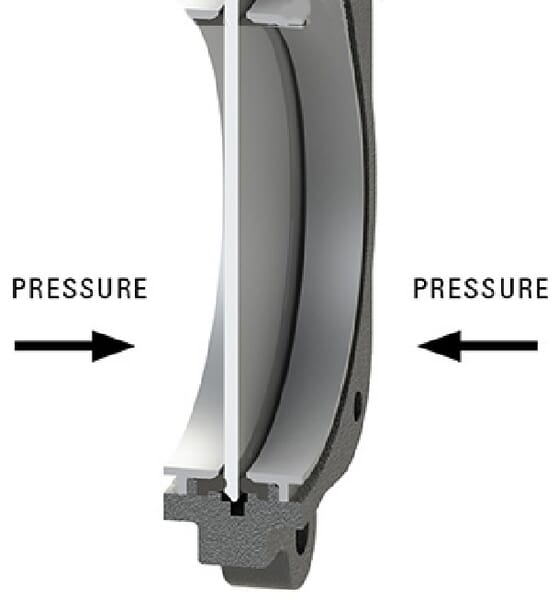

| Benefits | Bi-directional, High durability |
| BFlange thickness | 60 mm |
| CPassage hole centre to lever end distance | 610 mm |

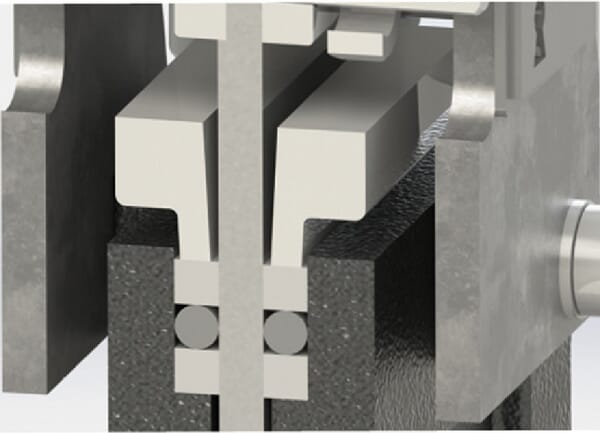

| Details | Offers excellent protection to oxidating and corrosion, even with slurry, Durable sealing system prevents leakages |
| DNPassage hole nominal diameter | 100 mm |
| DTotal height | 715 mm |
| Flange connection type | DIN PN10 - UNI EN 1092-1, UNI EN ISO 12100:2010, DIR: 2006/42 CE, DIR: 97/23CE |
| Max medium temperature | 90 °C |
| Max working pressure | 10 BAR |
| Min medium temperature | -20 °C |

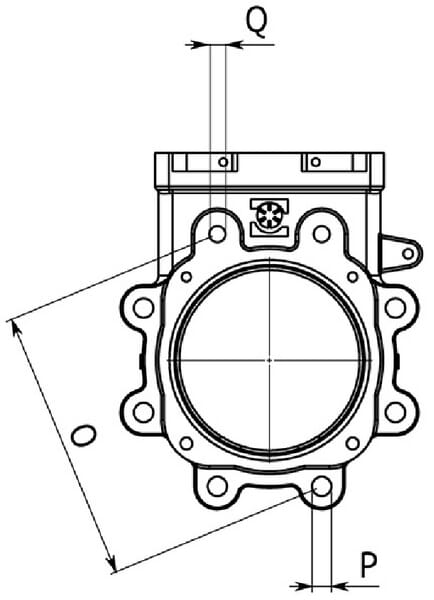

| OFlange mounting bolts/holes circle diameter | 180 mm |
| PFlange 2 mounting bolts/holes thread diameter | M18 |
| Properties | Open/close indicator on gate valve, One-piece casting body, Double acting cylinder |
| QFlange mounting bolts/holes thread diameter | M16 |
| Unit | Each |
| Weight | 17 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 17300 g |
| Dimensions | 720 × 215 × 125 mm |
| Dangerous goods | No |
You might also like
BPA000101823
Battioni Pagani Bearing Locking Ring 4011707049
£46.58 excl.
£55.90 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000245352
Battioni Pagani Oil seal Battioni Pagani 35x62x10 CM27
£3.11 excl.
£3.73 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000127893

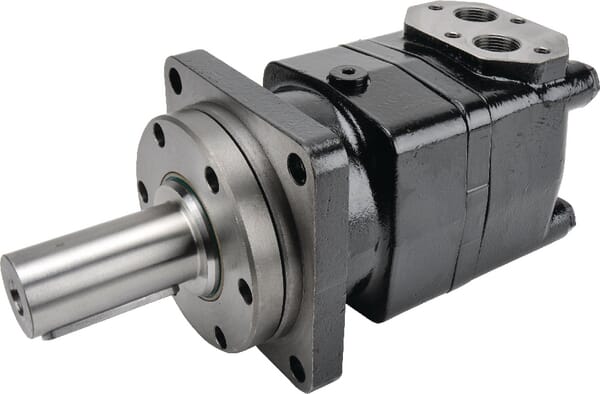

Battioni Pagani Hydraulic motor 200cc BR-EVO 5020400036
£1,576.72 excl.
£1,892.06 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000276166
Battioni Pagani Gear Pin G17
£79.92 excl.
£95.90 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000152737

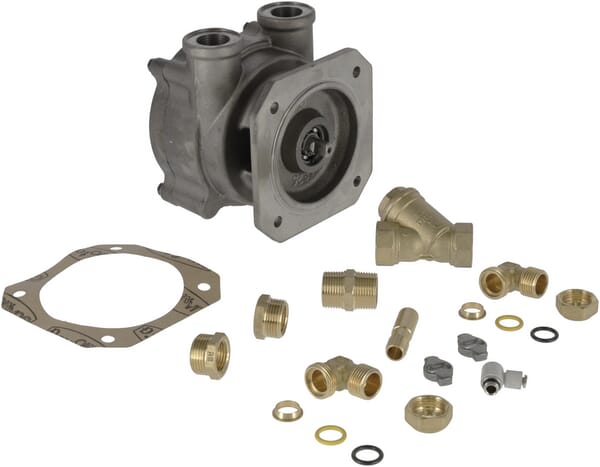

Battioni Pagani Water-cooling back pump kit 6080200537
£612.04 excl.
£734.45 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000232408

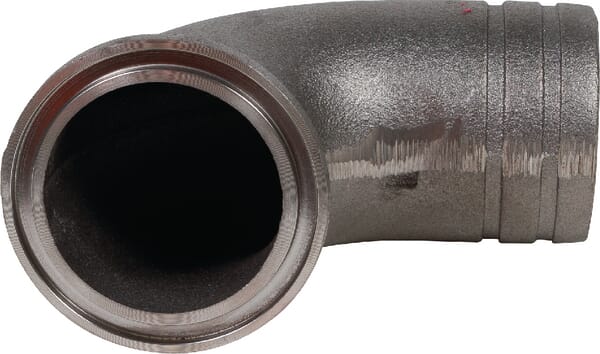

Battioni Pagani Vertical exhaust pipe 100mm ASE145
