£919.65
excl. VAT
£1,103.58 incl. VAT
£1,103.58
incl. VAT
£919.65 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details

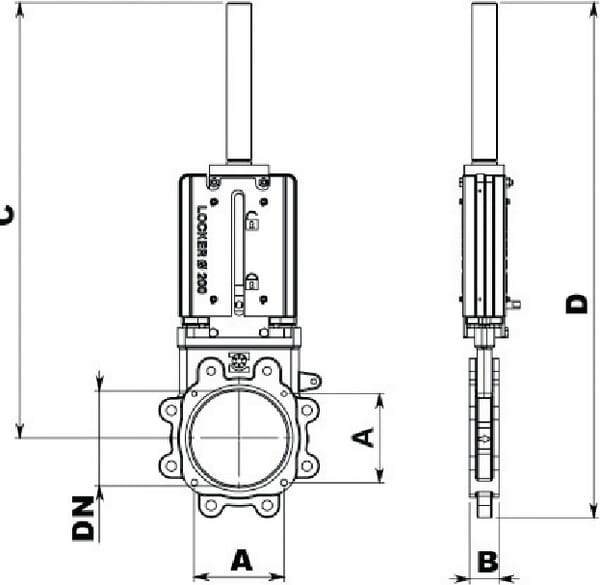

| AFlange mounting bolts/holes distance | 180 mm |
|---|---|
| Application range | Liquid manure service applications, Agricultural tankers or vacuum trucks, Biogas industry, Waste water treatment plants, General industrial service applications |

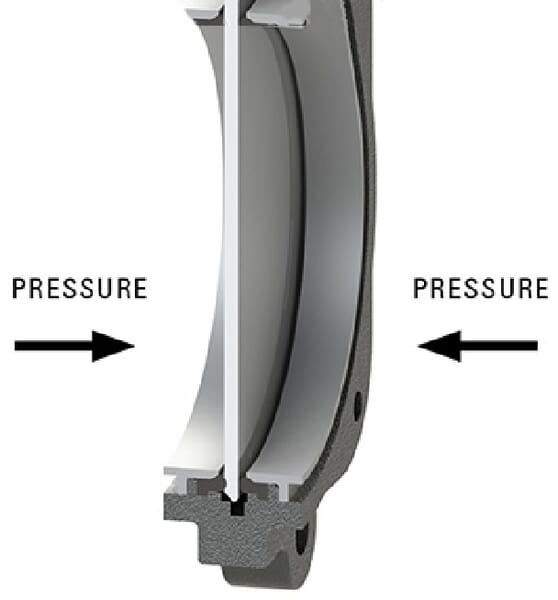

| Benefits | Bi-directional, High durability |
| BFlange thickness | 60 mm |
| CPassage hole centre to lever end distance | 885 mm |

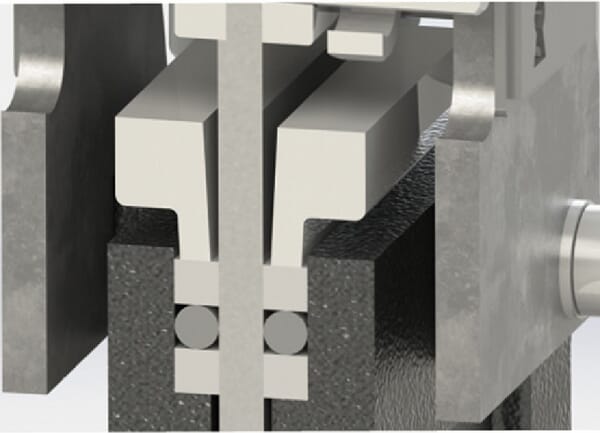

| Details | Offers excellent protection to oxidating and corrosion, even with slurry, Durable sealing system prevents leakages |
| DNPassage hole nominal diameter | 200 mm |
| DTotal height | 1045 mm |
| Flange connection type | DIN PN10 - UNI EN 1092-1, UNI EN ISO 12100:2010, DIR: 2006/42 CE, DIR: 97/23CE |
| Max medium temperature | 90 °C |
| Max working pressure | 10 BAR |
| Min medium temperature | -20 °C |

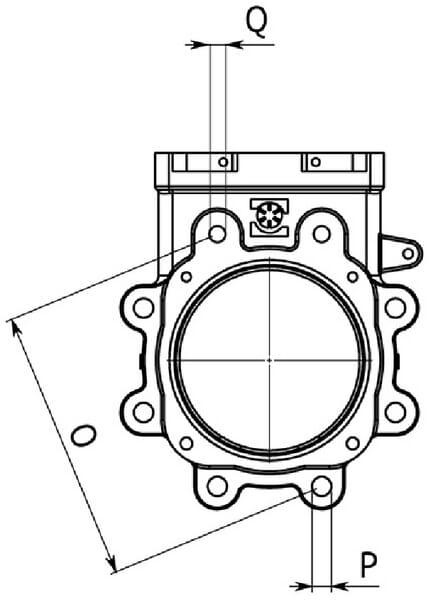

| OFlange mounting bolts/holes circle diameter | 295 mm |
| PFlange 2 mounting bolts/holes thread diameter | M22 |
| Properties | Open/close indicator on gate valve, One-piece casting body, Double acting cylinder |
| QFlange mounting bolts/holes thread diameter | M20 |
| Unit | Each |
| Weight | 28 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 28000 g |
| Dimensions | 1050 × 325 × 110 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000275387
Battioni Pagani Gearbox Cover G13
£222.07 excl.
£266.48 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000231518

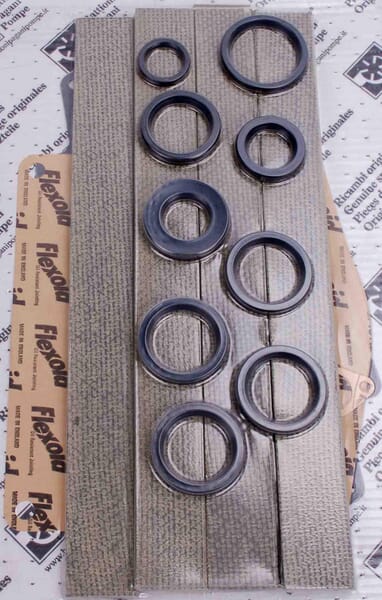

Battioni Pagani Repair kit MEC8000 with Long Life vanes AME7SPKIT
£438.75 excl.
£526.50 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000236527
Battioni Pagani BR pump 40m³/h BR40D
£3,817.71 excl.
£4,581.25 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000234016
Battioni Pagani Inner ring BR-EVO 260 BREVO88
£52.85 excl.
£63.42 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000236117
Battioni Pagani Vane 190x38x6.5mm long life BME7SP
£49.71 excl.
£59.65 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000236448

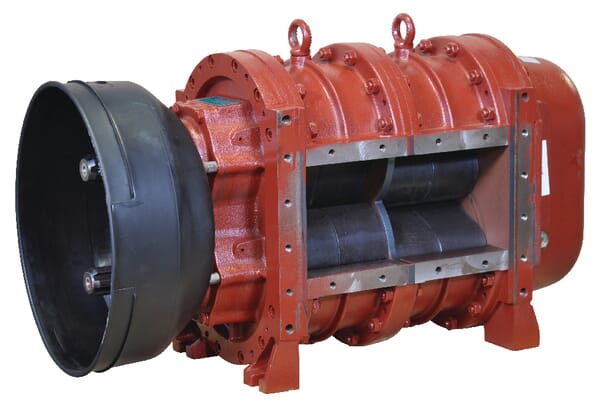

Battioni Pagani BR pump 172m³/h BR160D
