£3,388.00
excl. VAT
£4,065.60 incl. VAT
£4,065.60
incl. VAT
£3,388.00 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

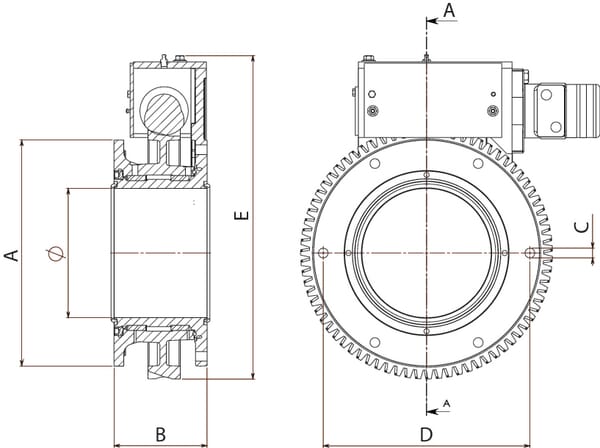

| AFlange outside diameter | 350 mm |
|---|---|
| Application range | This rotary coupling enables a suction arm to be rotated in a small space, for example |
| BTotal width | 144 mm |
| CFlange mounting holes diameter | 15 mm |
| DFlange mounting holes distance | 320 mm |
| ETotal height | 526 |
| Flange mounting holes number | 6 |
| Gear ring material | Cast iron GJS600 |
| Gear ring number of splines | 75 |
| Gear ring replaceable | No |
| Max. running time | 2 min |
| Max working pressure | 6 BAR |
| Max working temperature | 80 °C |
| Max. working torque | 7400 N·m |
| ØInside diameter | 200 mm |
| Operating torque | 5500 N·m |
| Properties | Swivel joint:, Wear resistant crown wheel and gear, Rotates by 360º, Very compact design, Automatic brake system in the event of a hydraulic motor failure, Easy lubrication, , Hydraulic motor:, Temperature range (°C) oil: -30 to +60, Max. working pressure (bar): 165, Max. oil capacity (l/min): 60 |
| Unit | Each |
| Weight | 77 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 86000 g |
| Dimensions | 800 × 600 × 400 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000152731
Battioni Pagani Seal rebuild kit 6''BIDI 6080200351
£141.67 excl.
£170.00 incl.
In stock
Expected to ship on Thursday 24 September
BPA000280767
Battioni Pagani O-ring 166.7x7mm 70 shore EPDM black GG7150
£3.98 excl.
£4.78 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000101784
Battioni Pagani Reversing gear - Ballast 16000 4010701021
£209.09 excl.
£250.91 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000321288

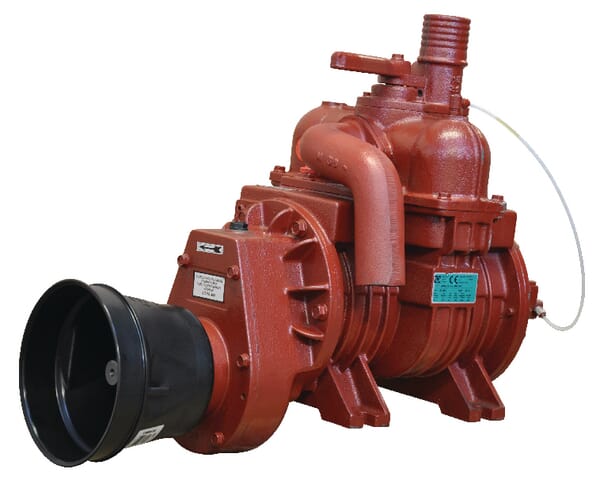

Battioni Pagani Vacuum pump 540 CCW auto-lube MEC4000A
£1,488.29 excl.
£1,785.95 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000339424

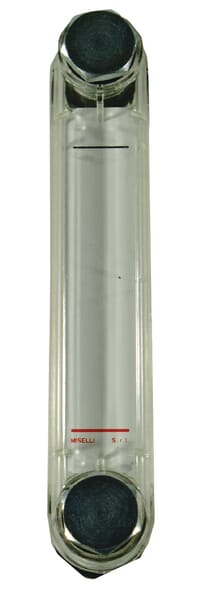

Battioni Pagani Observation complete+gasket R54
