£3,028.66
excl. VAT
£3,634.39 incl. VAT
£3,634.39
incl. VAT
£3,028.66 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details

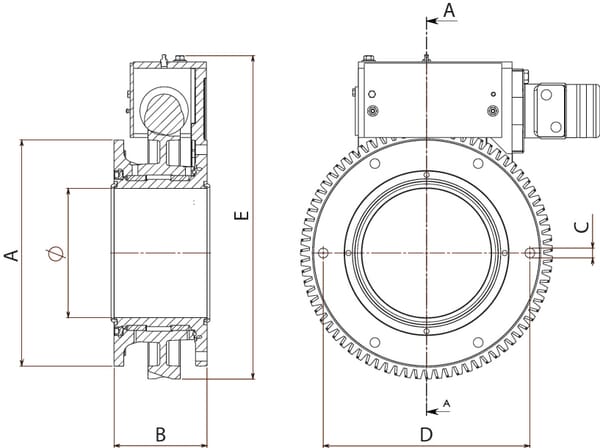

| AFlange outside diameter | 350 mm |
|---|---|
| Application range | This rotary coupling enables a suction arm to be rotated in a small space, for example |
| BTotal width | 144 mm |
| CFlange mounting holes diameter | 15 mm |
| DFlange mounting holes distance | 320 mm |
| ETotal height | 500 |
| Flange mounting holes number | 6 |
| Gear ring material | Cast iron GJS600 |
| Gear ring number of splines | 75 |
| Gear ring replaceable | No |
| Max. running time | 2 min |
| Max working pressure | 6 BAR |
| Max working temperature | 80 °C |
| Max. working torque | 7400 N·m |
| ØInside diameter | 200 mm |
| Operating torque | 5500 N·m |
| Properties | Swivel joint:, Wear resistant crown wheel and gear, Rotates by 360º, Very compact design, Automatic brake system in the event of a hydraulic motor failure, Easy lubrication, , Hydraulic motor:, Temperature range (°C) oil: -30 to +60, Max. working pressure (bar): 165, Max. oil capacity (l/min): 60 |
| Unit | Each |
| Weight | 58 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 80000 g |
| Dimensions | 490 × 470 × 150 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000321337
Battioni Pagani Vacuum pump direct drive CCW auto-lube and Ballast MEC9000DLAB
£3,395.36 excl.
£4,074.43 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000101714
Battioni Pagani Jet breaker 4010006004
£27.68 excl.
£33.22 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000231513

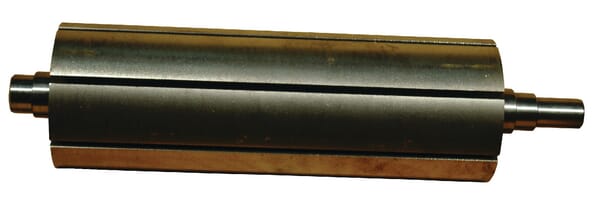

Battioni Pagani Rotor for MEC / P AME5P
£881.15 excl.
£1,057.38 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000236520

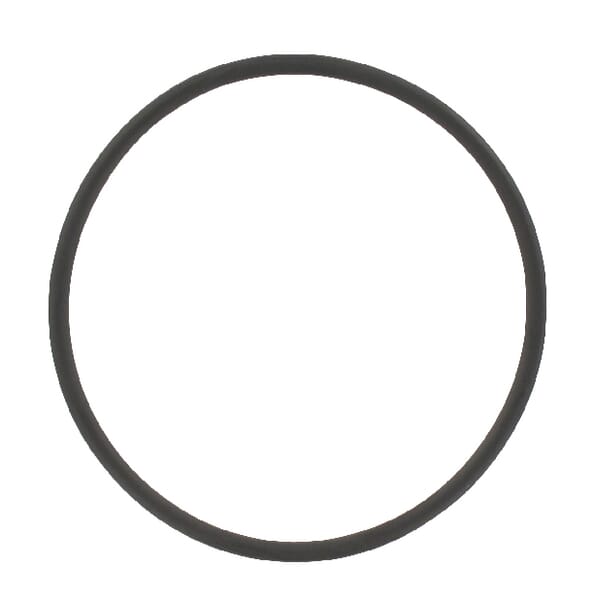

Battioni Pagani O-ring 75.79x3.53mm 70 shore black BR37N
£3.79 excl.
£4.55 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000101753
Battioni Pagani Gearbox 4010301027
£537.67 excl.
£645.20 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000235438

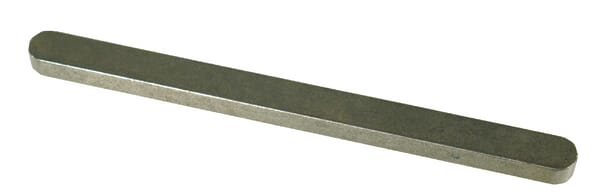

Battioni Pagani Standard key 16x10x210 B32
£30.25 excl.
£36.30 incl.
In stock
Expected to ship on Monday 21 September
Recently viewed
BPA000222644
Kverneland Seal kit A140157986 Sand V -3000 A140641600
£91.58 excl.
£109.90 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000211890
Kverneland LH rear panel support hitch SE7000, Kverneland original A137138786
£123.38 excl.
£148.06 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000149294

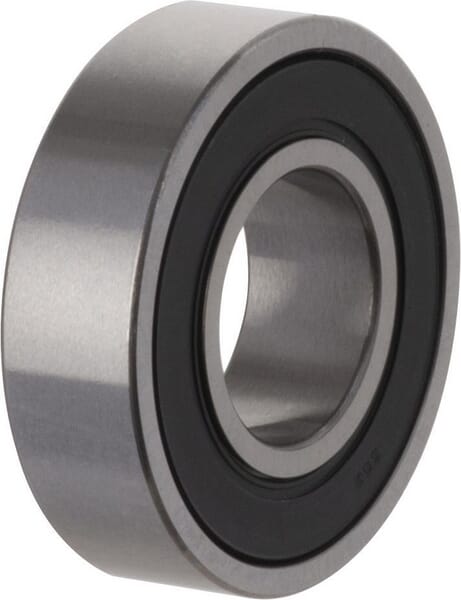

SKF Deep groove ball bearing 15x32x9mm 60022RSL
£8.50 excl.
£10.20 incl.
In stock
Expected to ship on Monday 21 September
BPA000086420
Case IH (CNH) Door, side and rear glass rubber 3221543R1
£5.26 excl.
£6.31 incl.
In stock
Expected to ship on Monday 21 September
BPA000153020

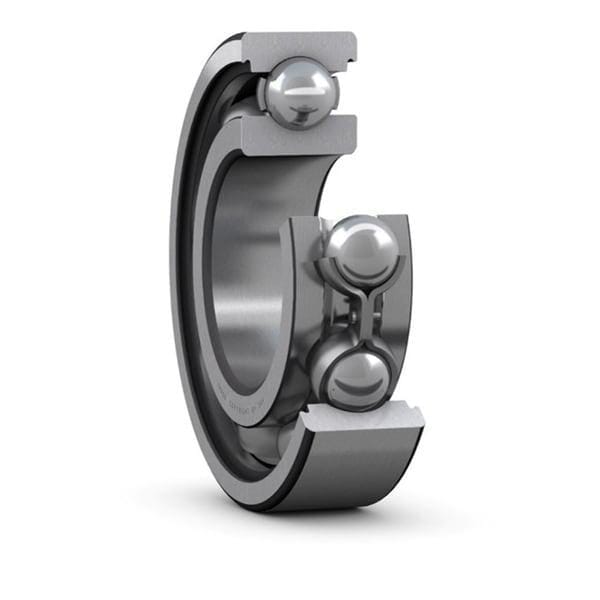

SKF Deep groove ball bearing 5x16x5mm 625SKF
