£4,005.70
excl. VAT
£4,806.84 incl. VAT
£4,806.84
incl. VAT
£4,005.70 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

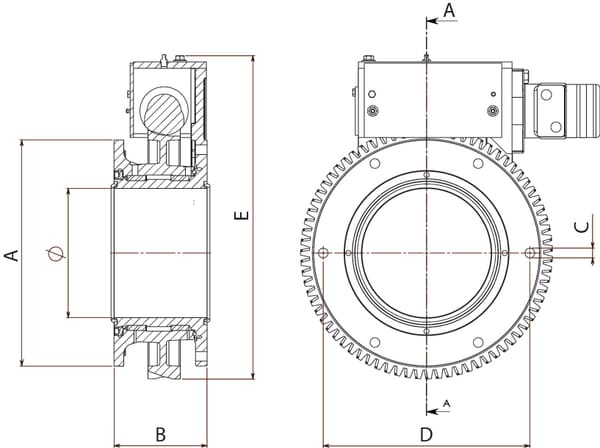

| AFlange outside diameter | 410 mm |
|---|---|
| Application range | This rotary coupling enables a suction arm to be rotated in a small space, for example |
| BTotal width | 156 mm |
| CFlange mounting holes diameter | 14 mm |
| DFlange mounting holes distance | 370 mm |
| ETotal height | 509 |
| Flange mounting holes number | 8 |
| Flange mounting holes thread diameter | M14 |
| Gear ring material | Cast iron GJS600 |
| Gear ring number of splines | 75 |
| Gear ring replaceable | No |
| Max. running time | 2 min |
| Max working pressure | 6 BAR |
| Max working temperature | 80 °C |
| Max. working torque | 7400 N·m |
| ØInside diameter | 250 mm |
| Operating torque | 5500 N·m |
| Properties | Swivel joint:, Wear resistant crown wheel and gear, Rotates by 360º, Very compact design, Automatic brake system in the event of a hydraulic motor failure, Easy lubrication, , Hydraulic motor:, Temperature range (°C) oil: -30 to +60, Max. working pressure (bar): 165, Max. oil capacity (l/min): 60 |
| Unit | Each |
| Weight | 81 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 87500 g |
| Dimensions | 530 × 500 × 160 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000301345
Battioni Pagani Vacuum pump hydraulic drive 18620 l/min with automatic lubrication and Ballast KPSB670HRA100
£6,904.59 excl.
£8,285.51 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000353266
Battioni Pagani Rubber ball 70mm S56
£17.71 excl.
£21.25 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000339244

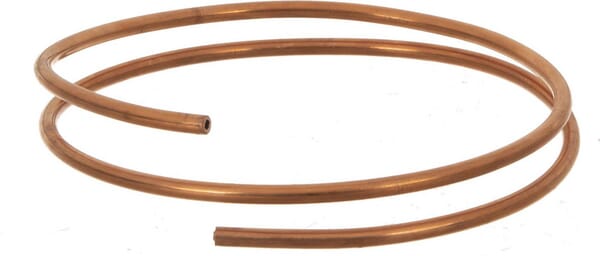

Battioni Pagani Pipe for water cooling 14x580 R49
£44.84 excl.
£53.81 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000321256
Battioni Pagani Vacuum pump double tank connection MEC11000MDU
£2,866.32 excl.
£3,439.58 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000150475

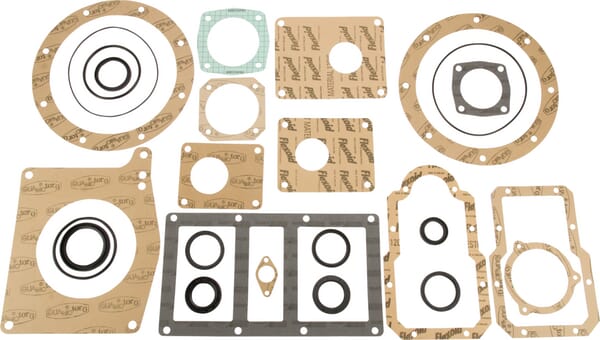

Battioni Pagani Gasket kit Star 6010202008
£56.88 excl.
£68.26 incl.
In stock
Expected to ship on Wednesday 23 September
Free shipping
BPA000148951
Battioni Pagani Hydraulic Swivel gun 4" 6100300027
£1,010.85 excl.
£1,213.02 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000234679

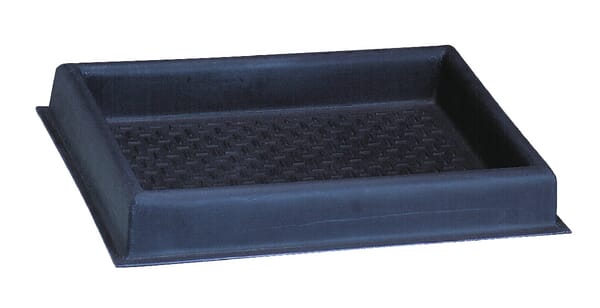

LA BUVETTE Disinfection tub 750x530x110mm BUD105
£95.11 excl.
£114.13 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000014790
Corteco Seal B1BAFSLVSFDRRX 81x104x11 FKM 04253373N
£31.26 excl.
£37.51 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000277449
Hypro Air injection nozzle Guardian AIR 110° 015 green plastic GA110015
£6.87 excl.
£8.24 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000082593
Kramp Oil seal 30x40x7mm type:BB DIN 3760 1x 30407BBP001
£2.26 excl.
£2.71 incl.
In stock
Expected to ship on Thursday 24 September
BPA000346796

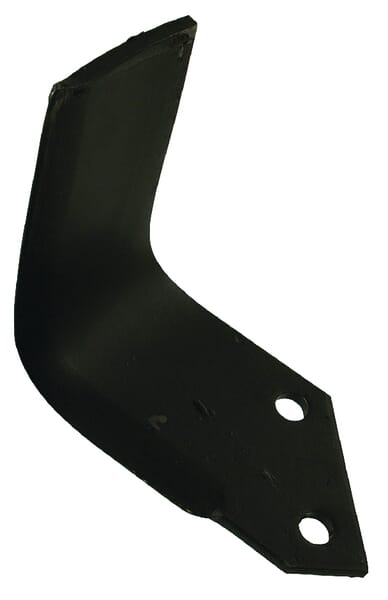

Non Original Rotovator blade LH 178x140x80mm 8mm thick suitable for Pegoraro RB5379
