£4,718.09
excl. VAT
£5,661.71 incl. VAT
£5,661.71
incl. VAT
£4,718.09 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

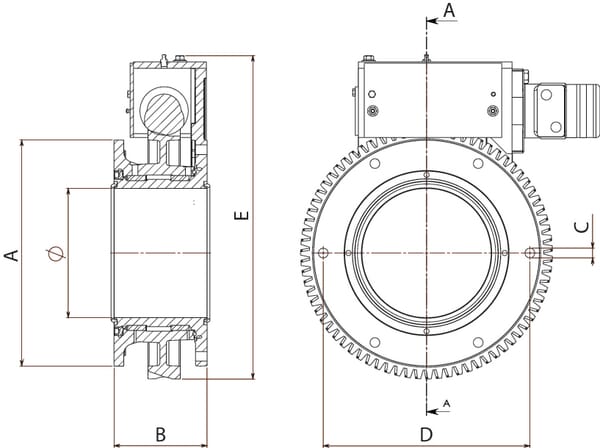

| AFlange outside diameter | 350 mm |
|---|---|

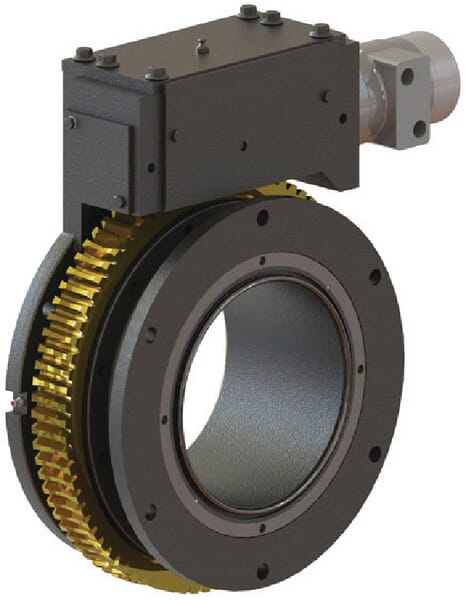

| Application range | This rotary coupling enables a suction arm to be rotated in a small space, for example |
| BTotal width | 144 mm |
| CFlange mounting holes diameter | 15 mm |
| DFlange mounting holes distance | 320 mm |
| ETotal height | 500 |
| Flange mounting holes number | 6 |
| Gear ring material | Cast iron BRAL |
| Gear ring number of splines | 80 |
| Gear ring replaceable | Yes |
| Max. running time | 2 min |
| Max working pressure | 6 BAR |
| Max working temperature | 80 °C |
| Max. working torque | 10000 N·m |
| ØInside diameter | 200 mm |
| Operating torque | 8000 N·m |
| Properties | Swivel joint:, Wear resistant crown wheel and gear, Rotates by 360º, Very compact design, Automatic brake system in the event of a hydraulic motor failure, Easy lubrication, , Hydraulic motor:, Temperature range (°C) oil: -30 to +60, Max. working pressure (bar): 165, Max. oil capacity (l/min): 60 |
| Unit | Each |
| Weight | 65 kg |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | — |
| Dimensions | — |
| Dangerous goods | No |
You might also like
BPA000400935
Battioni Pagani Tenon 1/2" W44
£3.24 excl.
£3.89 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000235571
Battioni Pagani Shaft BR 280 D B61280D
£1,239.03 excl.
£1,486.84 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000233984

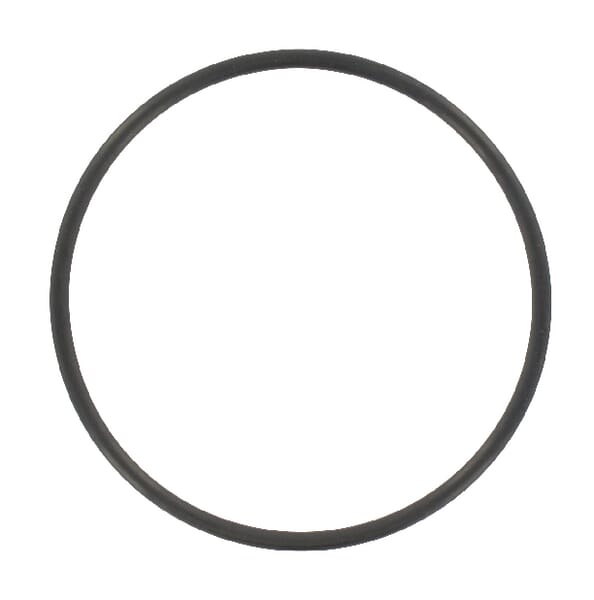

Battioni Pagani O-ring 59.99x2.62mm 70 shore black BREVO36N
£3.98 excl.
£4.78 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000129614

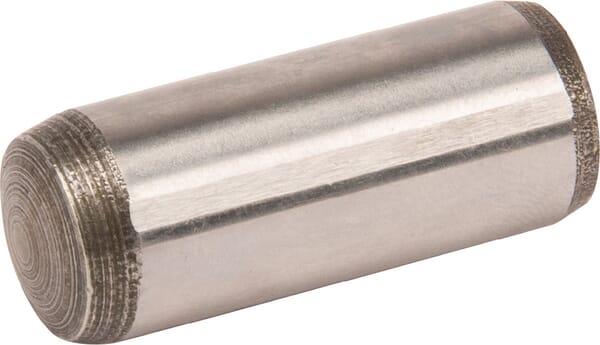

Battioni Pagani Cylindrical Pin 5051107010
£9.60 excl.
£11.52 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000321314

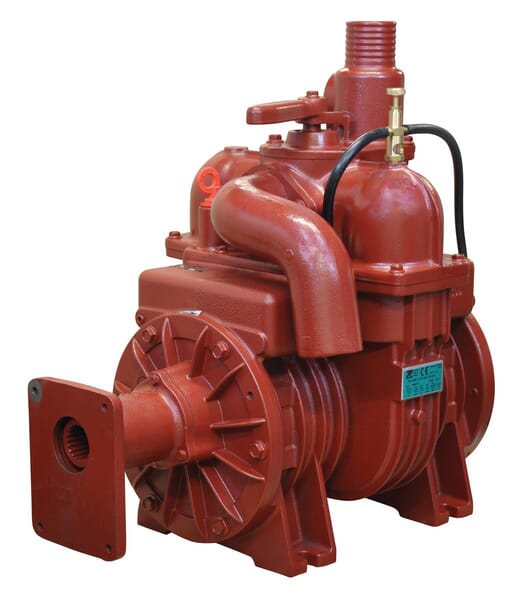

Battioni Pagani Vacuum pump hydraulic drive MEC6500H
