£3,104.76
excl. VAT
£3,725.71 incl. VAT
£3,725.71
incl. VAT
£3,104.76 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

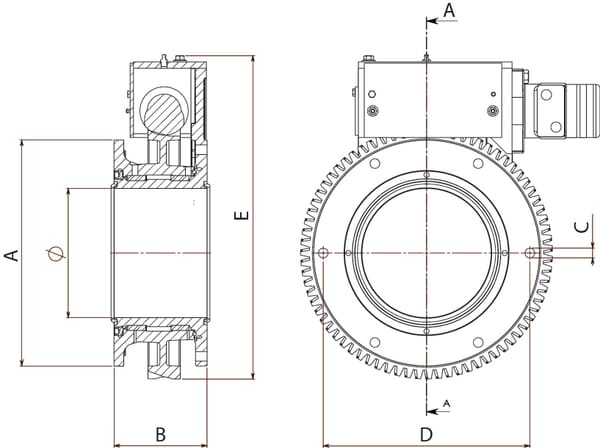

| AFlange outside diameter | 350 mm |
|---|---|

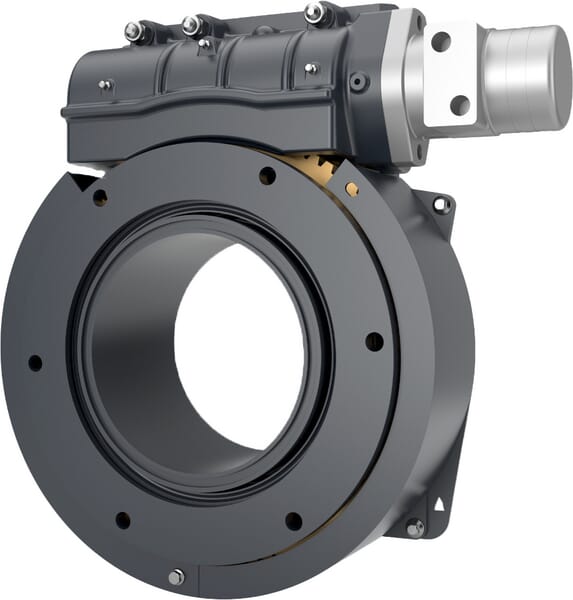

| Application range | This rotary coupling enables a suction arm to be rotated in a small space, for example |
| BTotal width | 144 mm |
| CFlange mounting holes diameter | 15 mm |
| DFlange mounting holes distance | 320 mm |
| ETotal height | 526 |
| Flange mounting holes number | 6 |
| Gear ring material | Cast iron BRAL |
| Gear ring number of splines | 80 |
| Gear ring replaceable | Yes |
| Max. running time | 2 min |
| Max working pressure | 6 BAR |
| Max working temperature | 80 °C |
| Max. working torque | 10000 N·m |
| ØInside diameter | 200 mm |
| Operating torque | 8000 N·m |
| Properties | Swivel joint:, Wear resistant crown wheel and gear, Rotates by 360º, Very compact design, Automatic brake system in the event of a hydraulic motor failure, Easy lubrication, , Hydraulic motor:, Temperature range (°C) oil: -30 to +60, Max. working pressure (bar): 165, Max. oil capacity (l/min): 60 |
| Unit | Each |
| Weight | 84 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 85000 g |
| Dimensions | 520 × 520 × 150 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000101754
Battioni Pagani Gearbox - Ballast 16000/M-Ma 4010301032
£661.75 excl.
£794.10 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000236117

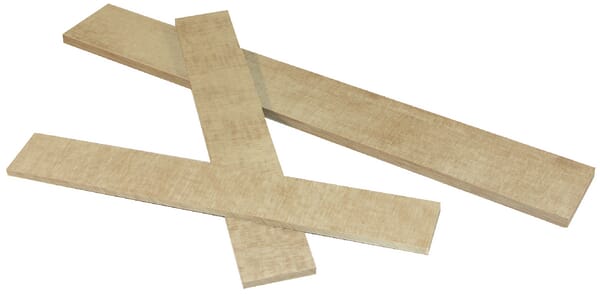

Battioni Pagani Vane 190x38x6.5mm long life BME7SP
£49.71 excl.
£59.65 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000150468
Battioni Pagani Repair set MEC 16500 with Long Life vanes 6010201107
£681.41 excl.
£817.69 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000276899
Battioni Pagani Housing G49
£297.93 excl.
£357.52 incl.
In stock
Expected to ship on Friday 18 September
BPA000235432

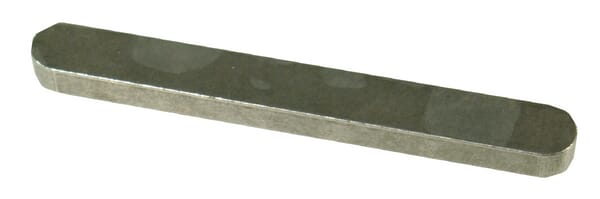

Battioni Pagani Standard Key BR B31
