£4,319.82
excl. VAT
£5,183.78 incl. VAT
£5,183.78
incl. VAT
£4,319.82 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

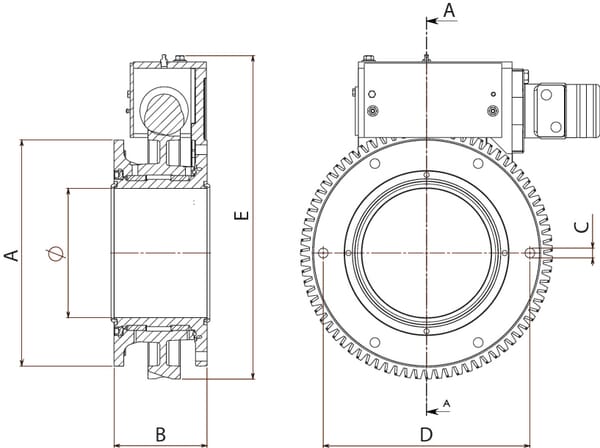

| AFlange outside diameter | 410 mm |
|---|---|
| Application range | This rotary coupling enables a suction arm to be rotated in a small space, for example |
| BTotal width | 156 mm |
| CFlange mounting holes diameter | 14 mm |
| DFlange mounting holes distance | 370 mm |
| ETotal height | 524 |
| Flange mounting holes number | 8 |
| Flange mounting holes thread diameter | M14 |
| Gear ring material | Cast iron BRAL |
| Gear ring number of splines | 80 |
| Gear ring replaceable | Yes |
| Max. running time | 2 min |
| Max working pressure | 6 BAR |
| Max working temperature | 80 °C |
| Max. working torque | 10000 N·m |
| ØInside diameter | 250 mm |
| Operating torque | 8000 N·m |
| Properties | Swivel joint:, Wear resistant crown wheel and gear, Rotates by 360º, Very compact design, Automatic brake system in the event of a hydraulic motor failure, Easy lubrication, , Hydraulic motor:, Temperature range (°C) oil: -30 to +60, Max. working pressure (bar): 165, Max. oil capacity (l/min): 60 |
| Unit | Each |
| Weight | 86 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | — |
| Dimensions | — |
| Dangerous goods | No |
You might also like
Free shipping
BPA000234013
Battioni Pagani Driven shaft BR-EVO 260/P/H BREVO7PH
£921.23 excl.
£1,105.48 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000364227

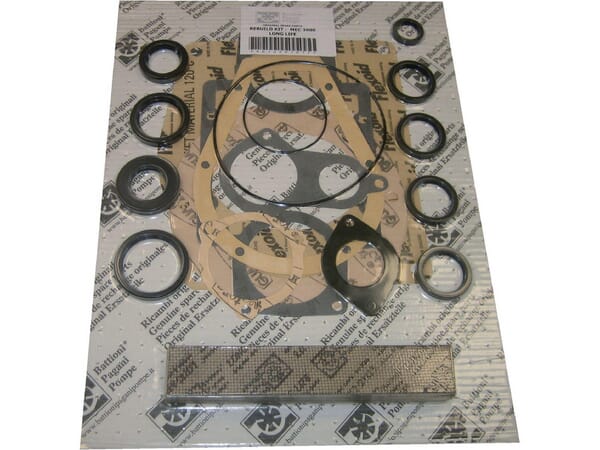

Battioni Pagani Repair kit STAR72 with Long Life vanes STA7SPKIT
£816.29 excl.
£979.55 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000236449

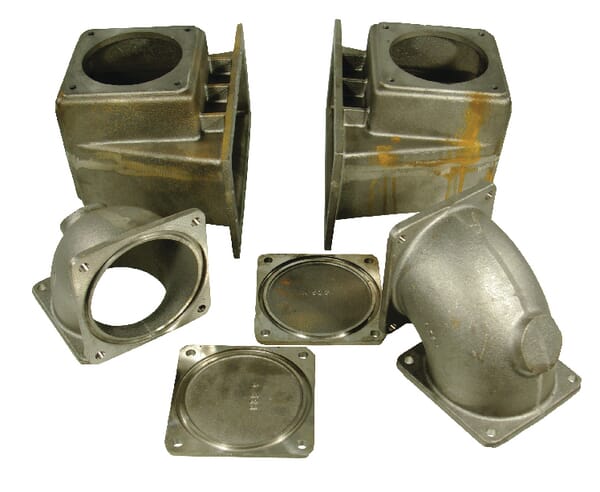

Battioni Pagani Flange (set) BR B. BR160KIT
£1,027.08 excl.
£1,232.50 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000236448

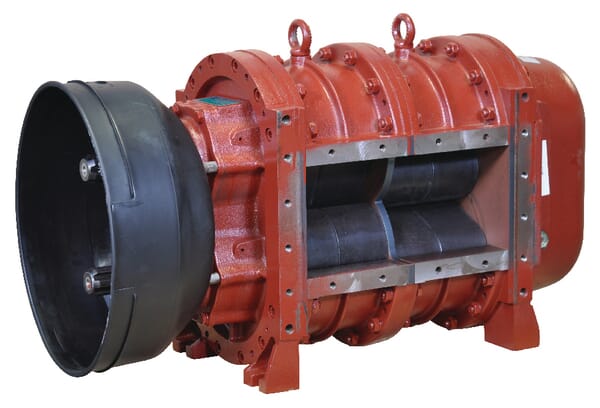

Battioni Pagani BR pump 172m³/h BR160D
