SKU BPA000301342 · Part No KPSB550MA100

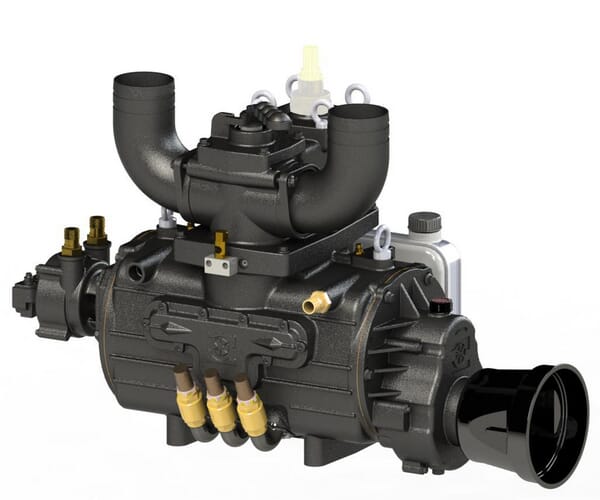

Battioni Pagani Vacuum pump 540 rpm 15270 l/min with automatic lubrication and Ballast KPSB550MA100

Name: Vacuum pump 540 rpm 15270 l/min with automatic lubrication and Ballast Battioni Pagani
Brand: Battioni Pagani
SKU: BPA000301342
Price: 6590.02 GBP
Availability: BackOrder

Ballast air injection system	Yes
Crash protection system	Yes
Depression valve connection diameter	1-1/2 Inch
Diameter of hose connection	100 mm
Drive type	PTO 540 rpm
Includes	Pumps are delivered without oil (art. BP5070), Pumps are supplied without cooling radiator
Long description	Water cooler highly recommended for inclusion in cooling system., The water-cooled BPS pump is built to run continuously for a long time. This makes it ideal for e.g. large slurry tanks with injection system, vacuum trucks and industrial applications. The KPS pump is the ideal solution for professional users and contractors.
Lubrication system type	Automatic
Max. relative pressure	1.5 BAR
Max. shaft rotation	540 r/min
Max vacuum	0.95 BAR
Nominal volume flow rate	15270 l/min
Power requirement for max. vacuum	22 kW
Product details	Item number breakdown:, KPS = Model, B = BALLAST system, air injection, 490, 550, 670 = Series, D = Direct driven, 1000 rpm, M = Drive with gearbox, 540 rpm, P = Pulley driven, H = Hydraulic pump driven, L = Rotation counter clockwise, R = Rotation clockwise, A = Automatic lubrication, 100 = Ø hose connection, 100mm, The pump rotation is determined with the drive shaft aligned with the observer. If, for example, a pump is driven directly by a tractor, it must be driven counter clockwise.
Pros	Liquid cooled housing with integrated water pump, Extra air cooling (BALLAST air injection system), Comes standard with heat-resistant "Long Life" blades, Automatic lubrication, The pump is suitable for continuous operation in both vacuum and pressure modes, Crash protection system: in case of fault or blade breakage, the rotor and the rotor housing will be protected because the rotor and the mounting flange can slide away downwards, Easy blade wear check through inspection hole with wear indication mark, A test report by serial number is delivered with each pump
Rotation direction	Counter-clockwise (CCW)
Shaft diameter	1-3/8 Inch
Unit	Each
Vane type	Long life
Weight	236 kg

EAN	—
Unit of measure	EA
Weight	250000 g

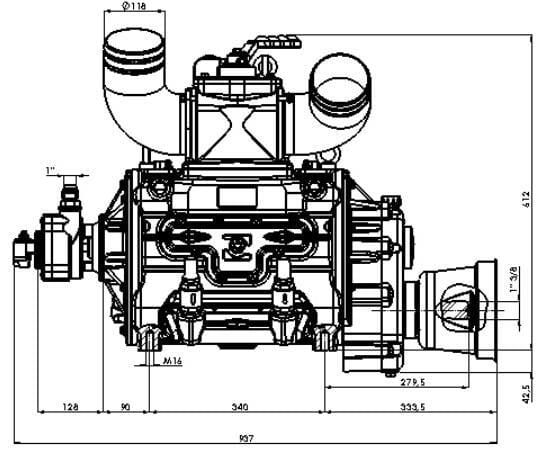

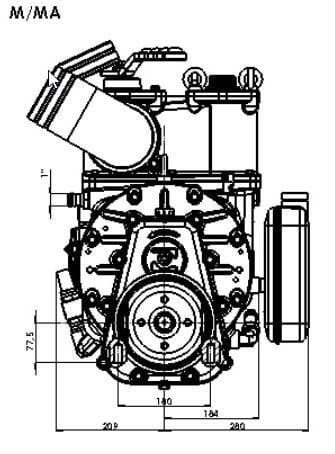

Dimensions	949 × 700 × 500 mm
Dangerous goods	No
