£3,241.90
excl. VAT
£3,890.28 incl. VAT
£3,890.28
incl. VAT
£3,241.90 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

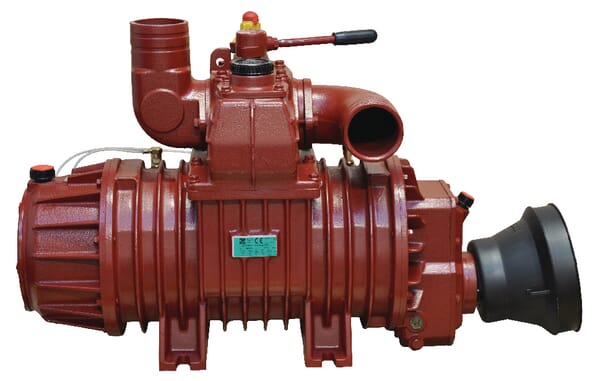

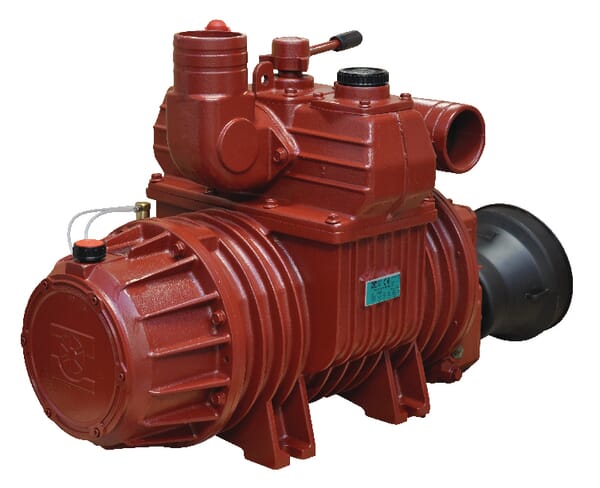

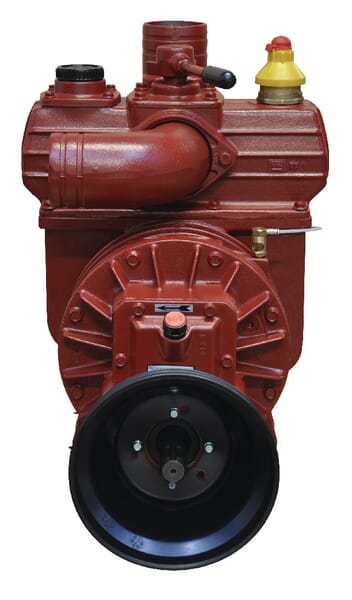

| Application range | These vacuum pumps with vanes are mainly used in agriculture for filling and emptying slurry tanks |
|---|---|

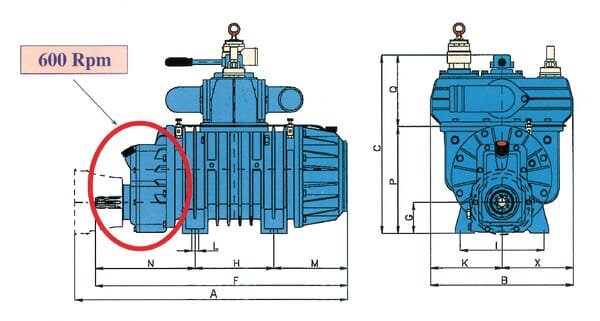

| ATotal length | 894 mm |
| Ballast air injection system | No |
| BTotal width | 490 mm |
| CHeight | 540 mm |
| Consists of | Including PTO shaft cover, Including vacuum valve, Without pressure relief valve (item 0200013), These pumps are supplied with standard vanes Long-life vanes available on request, Including swivelling connection pipes, The pumps are delivered without lubrication oil (item BP5070) |
| Crash protection system | No |
| Depression valve connection diameter | 1-1/2 Inch |
| Drive type | PTO 540 rpm |
| IMounting holes distance | 247 mm, 245 mm |
| KShaft centre to left side end distance | 220 mm |
| LMounting holes diameter | 18 mm |
| Lubrication system type | Automatic |
| Max. relative pressure | 1.5 BAR |
| Max. shaft rotation | 600 r/min |
| Max vacuum | 0.9 BAR |
| MMounting holes to end distance | 269 mm |
| NMounting holes to shaft end distance | 351 mm |
| Nominal volume flow rate | 14800 l/min |
| OUpper housing height | 214 mm |
| Power requirement for max. pressure | 37 kW |
| Power requirement for max. vacuum | 31 kW |
| Properties | These pumps can generate both positive pressure and vacuum |
| PRotor housing height | 326 mm |
| Rotation direction | Counter-clockwise (CCW) |
| Safety valve connection diameter | 2 Inch |
| Shaft diameter | 1-3/8 Inch |
| Technical info | Composition of the item numbers: STAR = series, 72 = type, M = indirect drive 540 rpm, A = automatic lubrication, On pumps without automatic lubrication (no "A" in the item number), the pump is equipped with a forced lubrication system that is adjusted using dripper nozzles, On pumps without automatic lubrication, the quantity of lubrication oil is set in the factory and cannot be changed without a tool, In the case of forced lubrication, as with automatic lubrication, the function must be checked at all times during operation, Pumps with indirect drive (M) must be driven anti-clockwise, The direction of rotation is determined when the axle to be driven is aligned with the observer, If the pump has a direct drive (for example, by a tractor unit) it must be driven anti-clockwise, Oil to be used for lubricating the vanes: genuine oil from B. P. (item number BP5070), STAR replaces the Agri- and Euro series |
| Unit | Each |
| Vane type | Standard |
| Weight | 263 kg |
| XShaft centre to right side end distance | 220 mm |
Logistics
| EAN | 8716106341245 |
|---|---|
| Unit of measure | EA |
| Weight | 261000 g |
| Dimensions | 740 × 410 × 600 mm |
| Dangerous goods | No |
You might also like
BPA000315150

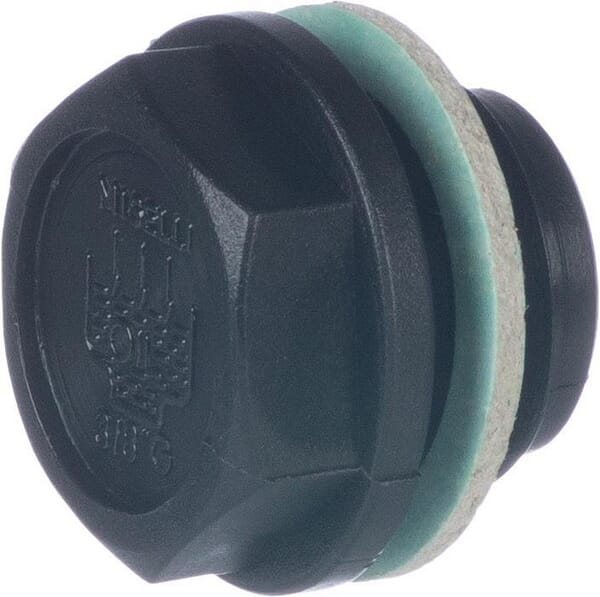

Battioni Pagani Filling Plug MAM21
£2.19 excl.
£2.63 incl.
In stock
Expected to ship on Friday 18 September
BPA000183116

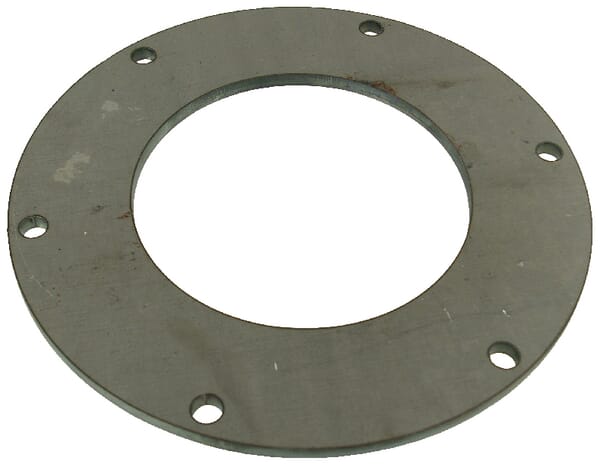

Battioni Pagani Flange 8" 6 holes 8310000Z
£74.80 excl.
£89.76 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000109020
Battioni Pagani Sliding Sleeve Garda 4020107034
£288.02 excl.
£345.62 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000231461

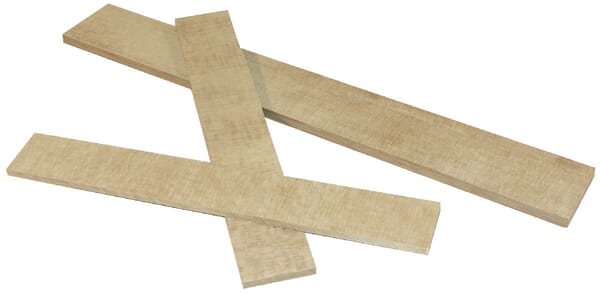

Battioni Pagani Vane 300x46.5x6.5mm long life AM7SP
£60.14 excl.
£72.17 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000231467

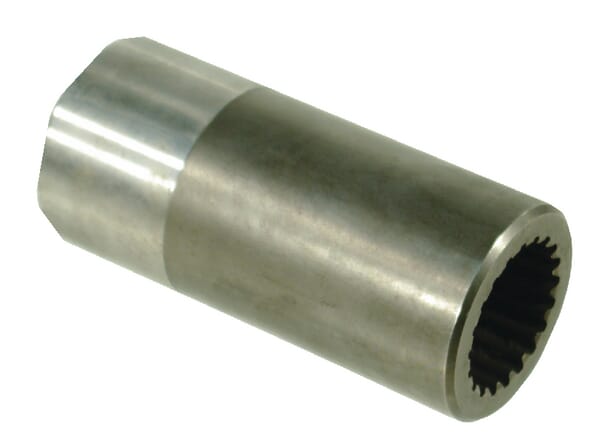

Battioni Pagani Bush AM82
