£4,153.15
excl. VAT
£4,983.78 incl. VAT
£4,983.78
incl. VAT
£4,153.15 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Additional info | Pump has at front and back side adjustable outlet. |
|---|---|
| AMounting holes to shaft end distance | 289 mm |
| Application range | These vacuum pumps with vanes are mainly used in agriculture for filling and emptying slurry tanks |
| Ballast air injection system | No |
| B,LMounting holes distance | 245 mm, 247 mm |
| CMounting holes to end distance | 269 mm |
| Consists of | Without pulley, Including vacuum valve, Without pressure relief valve (item 0200013), These pumps are supplied with standard vanes Long-life vanes available on request, Including swivelling connection pipes, The pumps are delivered without lubrication oil (item BP5070) |
| Crash protection system | No |
| Drive type | Pulley |
| ETotal length | 90 mm |
| FMounting holes diameter | 18 mm |
| GHeight | 540 mm |
| IShaft centre to bottom distance | 196 mm |
| Lubrication system type | Automatic |
| Max. relative pressure | 1.5 BAR |
| Max. shaft rotation | 1200 r/min |
| Max vacuum | 0.9 BAR |
| MShaft centre to left side end distance | 220 mm |
| Nominal volume flow rate | 14800 l/min |
| NShaft centre to right side end distance | 220 mm |
| OTotal width | 490 mm |
| Power requirement for max. vacuum | 29 kW |
| Properties | These pumps can generate both positive pressure and vacuum |
| Rotation direction | Clockwise (CW) |
| Shaft length | 90 mm |
| Technical info | Composition of item numbers: STAR = series, 72 = type, P = pulley drive, R = clockwise rotation, A = automatic lubrication, On pumps without automatic lubrication (no "A" in the item number), the pump is equipped with a forced lubrication system that is adjusted using dripper nozzles • Forced lubrication available on request, On pumps without automatic lubrication, the quantity of lubrication oil is set in the factory and cannot be changed without a tool, In the case of forced lubrication, as with automatic lubrication, the function must be checked at all times during operation, Pumps with pulley drive rotate clockwise. Anti-clockwise rotation available on request, The direction of rotation is determined when the axle to be driven is aligned with the observer, Oil to be used for lubricating the vanes: genuine oil from B. P. (item number BP5070), STAR replaces the Agri- and Euro series |
| Unit | Each |
| Vane type | Standard |
| Weight | 239 kg |
Compatible accessories
Parts and components that work with this product.
2009D

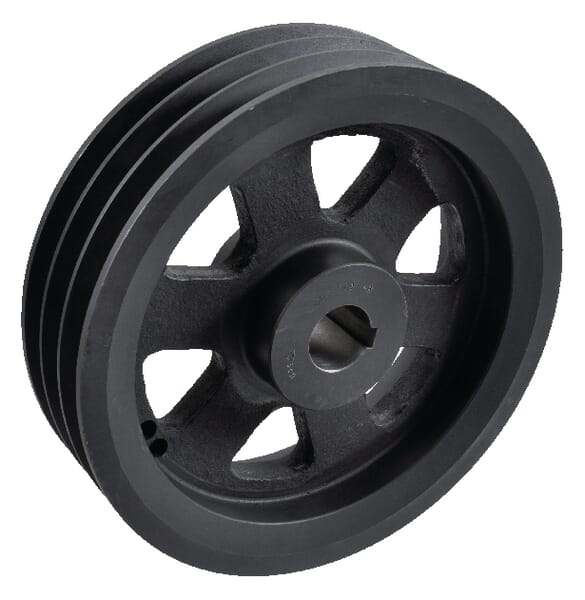

Battioni Pagani Pulley SE/STAR/WPT 2009D
£636.63 excl.
£763.96 incl.
400111
Battioni Pagani Filter-silencer 14.000 l/min 400111
£768.31 excl.
£921.97 incl.
40027
Battioni Pagani Air pre-cleaner 40027
£186.87 excl.
£224.24 incl.
6080200290
Battioni Pagani Final air filter 6080200290
£1,081.26 excl.
£1,297.51 incl.
BP5070
Battioni Pagani Vacuum pump oil, 5l, mineral, by BP5070
£74.06 excl.
£88.87 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 241000 g |
| Dimensions | 800 × 450 × 600 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000101390

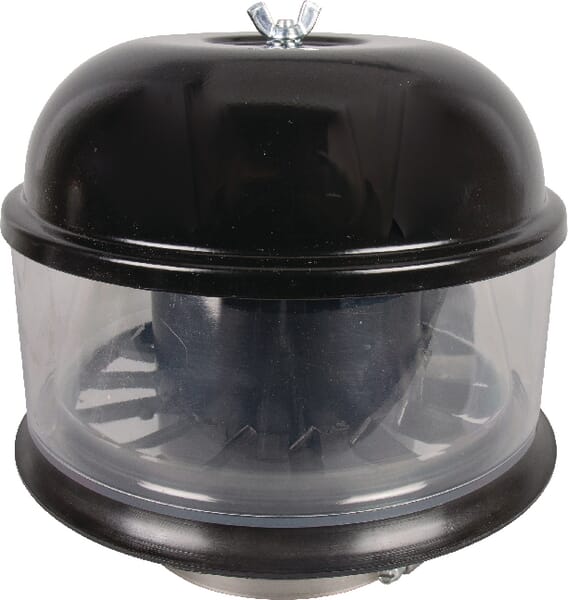

Battioni Pagani Air pre-cleaner 40025AOO
£124.49 excl.
£149.39 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000236107

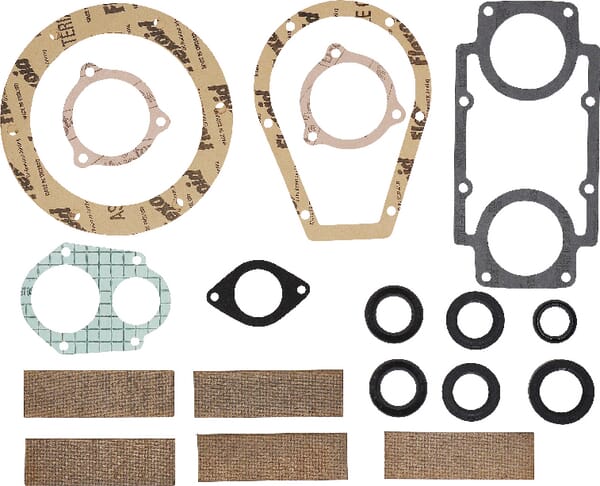

Battioni Pagani Repair kit MEC1000 with standard vanes BM7KIT
£45.59 excl.
£54.71 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000312786

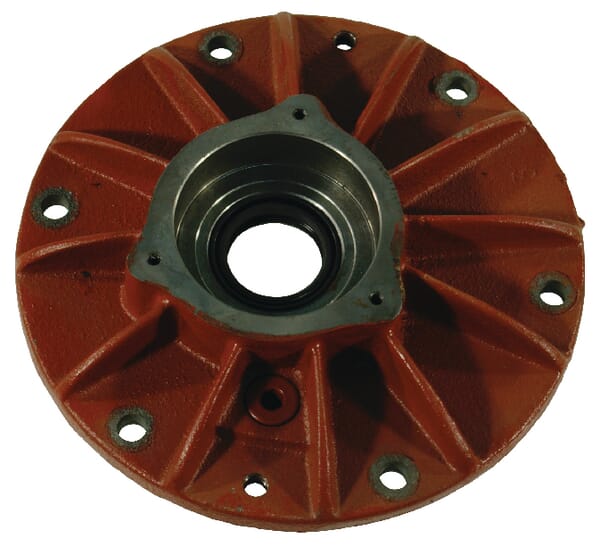

Battioni Pagani Rear cover B.P M3
£120.69 excl.
£144.83 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000311081
Battioni Pagani Oil dropper WPT LW2
£20.48 excl.
£24.58 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000150455
Battioni Pagani Kit for pump KTM 1500 long life 6010201040
£1,433.04 excl.
£1,719.65 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000152732

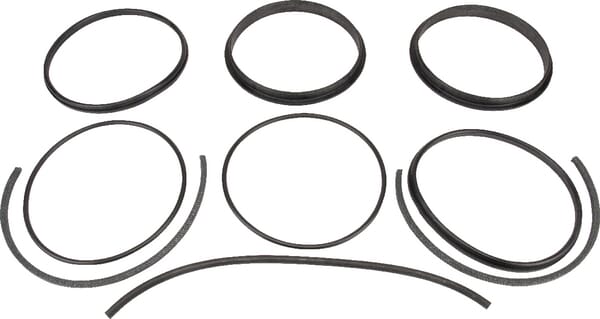

Battioni Pagani Seal rebuild kit 8''BIDI 6080200352
