SKU BPA000236826 · Part No BALLAST16500D

Battioni Pagani Vacuum pump direct drive AL CCW D100 LL BALLAST16500D

Name: Vacuum pump direct drive AL CCW D100 LL Battioni Pagani
Brand: Battioni Pagani
SKU: BPA000236826
Price: 4645.51 GBP
Availability: InStock

Application range	These vacuum pumps with vanes are mainly used in agriculture for filling and emptying slurry tanks
Ballast air injection system	Yes
Benefits	Minimum repair costs thanks to the unique automatic protection system, As pumps from B.P. are tested, inspected and packaged with the utmost care, trouble-free start-up is 100% guaranteed
Consists of	Including PTO shaft cover, Without pressure relief valve (item 0250013) and vacuum valve (item 0155513), The pumps are delivered without lubrication oil (item BP5070)
Crash protection system	Yes
Depression valve connection diameter	1-1/2 Inch
Details	BALLAST pumps have a crash protection system (for example, this can protect the rotor and the rotor housing if a disc breaks by pushing down the rotor, including flange mounting, so that it is out of the way), BALLAST pumps provide longer running times in vacuum operation, Supplied with heat-resistant "long-life" discs as standard, The pump temperature can be read on the temperature gauge strips, The inspection hole with maximum wear indicator allows the wear on the discs to be checked, Battioni Pagani performs vacuum, compression and lubrication tests on all pumps before they leave the factory, A test report is prepared for each pump by serial number
Diameter of hose connection	100 mm
Drive type	PTO 1000 rpm without gearbox
Lubrication system type	Automatic
Max. relative pressure	2.5 BAR
Max. shaft rotation	1400 r/min
Max vacuum	0.95 BAR
Nominal volume flow rate	16800 l/min
Power requirement for max. vacuum	24 kW
Properties	These pumps can generate both positive pressure and vacuum
Rotation direction	Counter-clockwise (CCW)
Safety valve connection diameter	2 Inch
Shaft diameter	1-3/8 Inch
Technical info	Meaning of the composition of the number:, BALLAST = series, 16000 = type, D = directly driven, 1000 rpm, The BALLAST pumps have automatic lubrication installed as standard, The lubrication is applied by the manufacturer and can not be adjusted without the proper tool, Always check whether the lubrication is actually working when the pump is switched on, Oil to be used for lubricating the vanes: genuine oil from B.P. Oil item number: BP5070, The direction of rotation is determined when the axle to be driven is aligned with the observer, If, for example, a pump is driven directly by a tractor unit, it must be driven anti-clockwise
Unit	Each
Vane type	Long life
Weight	236 kg

EAN	—
Unit of measure	EA
Weight	250000 g

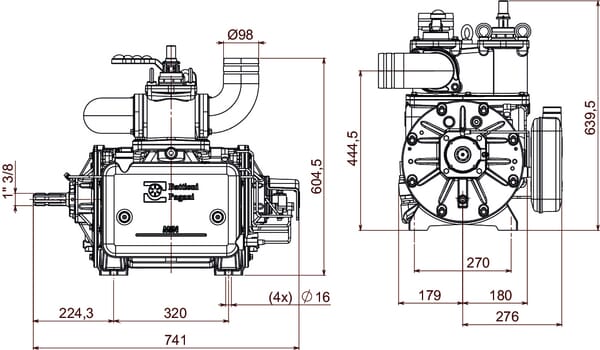

Dimensions	810 × 620 × 500 mm
Dangerous goods	No
