SKU BPA000321264 · Part No MEC13500DLAB

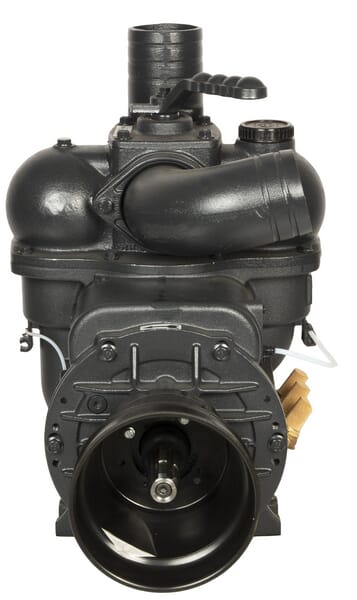

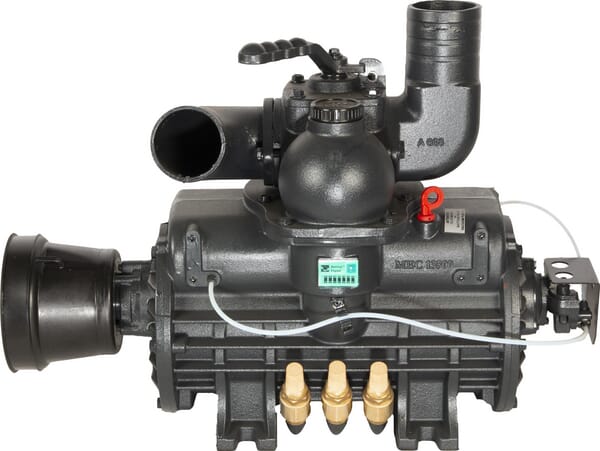

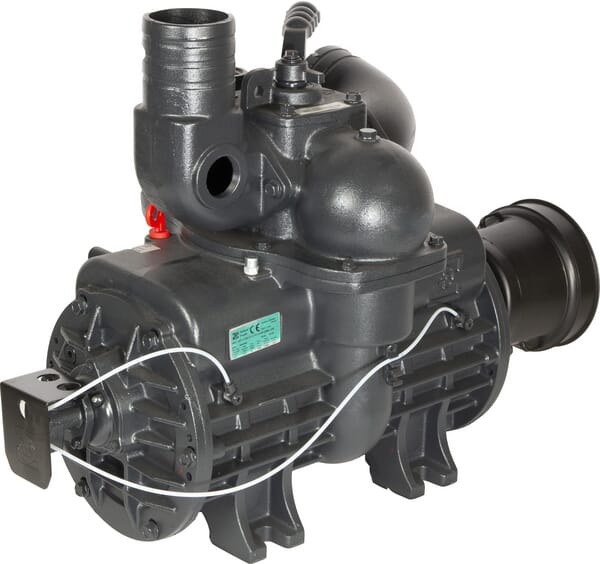

Battioni Pagani Vacuum pump direct drive CCW auto-lube and Ballast MEC13500DLAB

Name: Vacuum pump direct drive CCW auto-lube and Ballast Battioni Pagani
Brand: Battioni Pagani
SKU: BPA000321264
Price: 4376.17 GBP
Availability: BackOrder

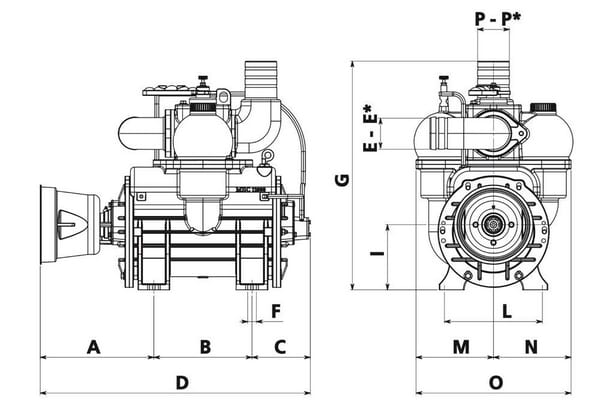

AMounting holes to shaft end distance	331 mm
Application range	These vacuum pumps with vanes are mainly used in agriculture for filling and emptying slurry tanks
Ballast air injection system	Yes
Benefits	Minimum repair costs thanks to the unique automatic protection system, As pumps from B.P. are tested, inspected and packaged with the utmost care, trouble-free start-up is 100% guaranteed
B,LMounting holes distance	247 mm, 246 mm
CMounting holes to end distance	192 mm
Consists of	Including PTO shaft cover, Without pressure relief valve (item 0200013) and vacuum valve (item 0155513), The pumps are delivered without lubrication oil (item BP5070)
Crash protection system	Yes
Depression valve connection diameter	1-1/2 Inch
Details	The MEC II-series pumps have an automatic protection system. So, for example, if a vane breaks, the rotor and rotor housing can be protected by the rotor—including the flange mountings—being pushed downwards, Pumps with a "ballast system", identified by B at the end of the item number (e.g. MEC9000MB) have a longer operating time in vacuum operation, The operating time at -0.95 bar lasts from 8 minutes (standard) up to a maximum of 15 minutes. Continuous operation is permissible at -0.6 bar., MEC II-series pumps are supplied with long-life (heat-resistant) vanes as standard, MEC II-series pumps feature a temperature meter to enable the temperature to be read during operation, A maintenance hatch can be used to determine the wear condition of the vanes, indicating when the vanes need to be replaced, Each pump is subjected to a final check in the factory, in which the vacuum, compression and lubrication are tested, among other factors, A test report relating to the serial number is drawn up for each pump
D,PDiameter of hose connection	100 mm
Drive type	PTO 1000 rpm without gearbox
ETotal length	770 mm
FMounting holes diameter	22 mm
GHeight	575 mm
IShaft centre to bottom distance	164 mm
Lubrication system type	Automatic
Max. relative pressure	1.5 BAR
Max. shaft rotation	1400 r/min
Max vacuum	0.95 BAR
MShaft centre to left side end distance	195 mm
Nominal volume flow rate	13845 l/min
NShaft centre to right side end distance	195 mm
OTotal width	390 mm
Power requirement for max. pressure	36 kW
Power requirement for max. vacuum	24 kW
Properties	These pumps can generate both positive pressure and vacuum
Reservoir capacity	3.5 l
Rotation direction	Counter-clockwise (CCW)
Safety valve connection diameter	2 Inch
Shaft diameter	1-3/8 Inch
Technical info	Composition of the item numbers: MEC = series, 9000 = type, D = direct drive 1000 rpm, L = anti-clockwise rotation, R = clockwise rotation, A = automatic lubrication, B = ballast system, On pumps without automatic lubrication (no "A" in the item number), the pump is equipped with a forced lubrication system that is adjusted using dripper nozzles, On pumps without automatic lubrication, the quantity of lubrication oil is set in the factory and cannot be changed without a tool, In the case of forced lubrication, as with automatic lubrication, the function must be checked at all times during operation, The direction of rotation is determined when the axle to be driven is aligned with the observer, If the pump has a direct drive (for example, by a tractor unit) it must be driven anti-clockwise, Oil to be used for lubricating the vanes: genuine oil from B. P. (item number BP5070)
Unit	Each
Vane type	Long life
Weight	165 kg

EAN	—
Unit of measure	EA
Weight	175000 g
Dimensions	790 × 400 × 800 mm
Dangerous goods	No
