£2,512.79
excl. VAT
£3,015.35 incl. VAT
£3,015.35
incl. VAT
£2,512.79 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

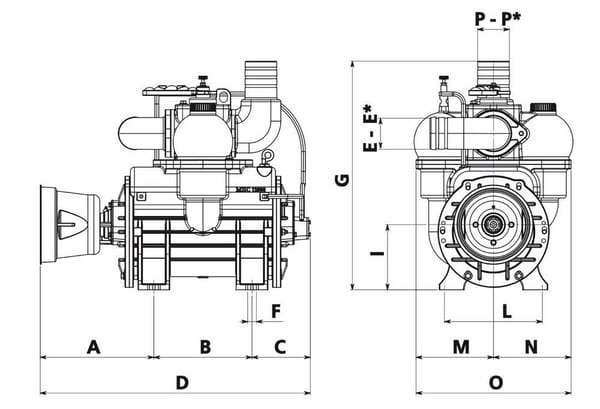

| AMounting holes to shaft end distance | 331 mm |
|---|---|

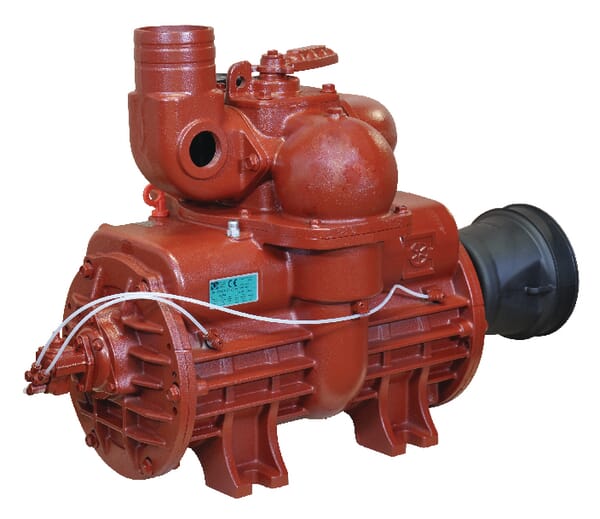

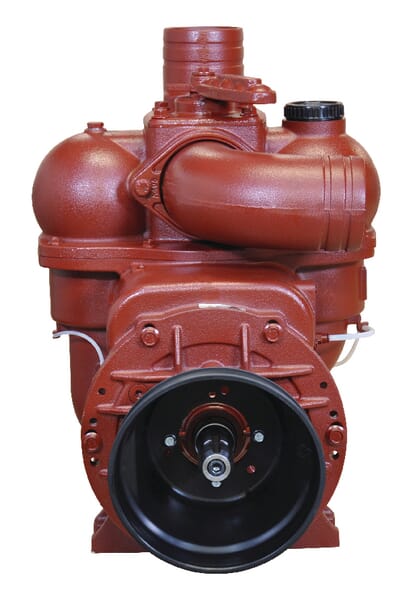

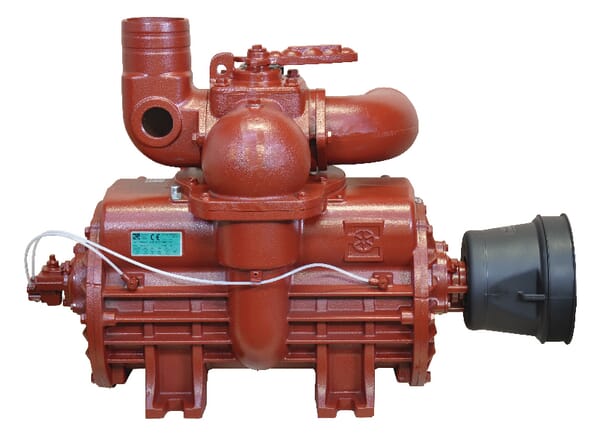

| Application range | These vacuum pumps with vanes are mainly used in agriculture for filling and emptying slurry tanks |
| Ballast air injection system | No |
| Benefits | Minimum repair costs thanks to the unique automatic protection system, As pumps from B.P. are tested, inspected and packaged with the utmost care, trouble-free start-up is 100% guaranteed |
| B,LMounting holes distance | 247 mm, 246 mm |
| CMounting holes to end distance | 192 mm |
| Consists of | Including PTO shaft cover, Without pressure relief valve (item 0200013) and vacuum valve (item 0155513), The pumps are delivered without lubrication oil (item BP5070) |
| Crash protection system | Yes |
| Depression valve connection diameter | 1-1/2 Inch |
| Details | The MEC II-series pumps have an automatic protection system. So, for example, if a vane breaks, the rotor and rotor housing can be protected by the rotor—including the flange mountings—being pushed downwards, Pumps with a "ballast system", identified by B at the end of the item number (e.g. MEC9000MB) have a longer operating time in vacuum operation, The operating time at -0.95 bar lasts from 8 minutes (standard) up to a maximum of 15 minutes. Continuous operation is permissible at -0.6 bar., MEC II-series pumps are supplied with long-life (heat-resistant) vanes as standard, MEC II-series pumps feature a temperature meter to enable the temperature to be read during operation, A maintenance hatch can be used to determine the wear condition of the vanes, indicating when the vanes need to be replaced, Each pump is subjected to a final check in the factory, in which the vacuum, compression and lubrication are tested, among other factors, A test report relating to the serial number is drawn up for each pump |
| D,PDiameter of hose connection | 100 mm |
| Drive type | PTO 1000 rpm without gearbox |
| ETotal length | 770 mm |
| FMounting holes diameter | 22 mm |
| GHeight | 575 mm |
| IShaft centre to bottom distance | 164 mm |
| Lubrication system type | Automatic |
| Max. relative pressure | 1.5 BAR |
| Max. shaft rotation | 1400 r/min |
| Max vacuum | 0.95 BAR |
| MShaft centre to left side end distance | 195 mm |
| Nominal volume flow rate | 13845 l/min |
| NShaft centre to right side end distance | 195 mm |
| OTotal width | 390 mm |
| Power requirement for max. pressure | 36 kW |
| Power requirement for max. vacuum | 24 kW |
| Properties | These pumps can generate both positive pressure and vacuum |
| Reservoir capacity | 3.5 l |
| Rotation direction | Counter-clockwise (CCW) |
| Safety valve connection diameter | 2 Inch |
| Shaft diameter | 1-3/8 Inch |
| Technical info | Composition of the item numbers: MEC = series, 9000 = type, D = direct drive 1000 rpm, L = anti-clockwise rotation, R = clockwise rotation, A = automatic lubrication, B = ballast system, On pumps without automatic lubrication (no "A" in the item number), the pump is equipped with a forced lubrication system that is adjusted using dripper nozzles, On pumps without automatic lubrication, the quantity of lubrication oil is set in the factory and cannot be changed without a tool, In the case of forced lubrication, as with automatic lubrication, the function must be checked at all times during operation, The direction of rotation is determined when the axle to be driven is aligned with the observer, If the pump has a direct drive (for example, by a tractor unit) it must be driven anti-clockwise, Oil to be used for lubricating the vanes: genuine oil from B. P. (item number BP5070) |
| Unit | Each |
| Vane type | Long life |
| Weight | 165 kg |
Logistics
| EAN | 8716106340699 |
|---|---|
| Unit of measure | EA |
| Weight | 100000 g |
| Dimensions | 800 × 400 × 750 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000321336
Battioni Pagani Vacuum pump direct drive CCW auto-lube MEC9000DLA
£2,792.36 excl.
£3,350.83 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000321250
Battioni Pagani Vacuum pump direct drive CCW auto-lube MEC11000DLA
£3,059.52 excl.
£3,671.42 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000101834
Battioni Pagani Spacer Ballast 16000 pin GA 1 4011707116
£22.05 excl.
£26.46 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000236527

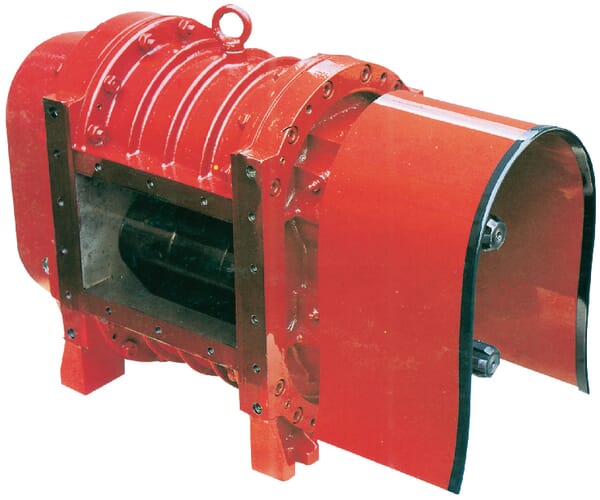

Battioni Pagani BR pump 40m³/h BR40D
£3,817.71 excl.
£4,581.25 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000236612

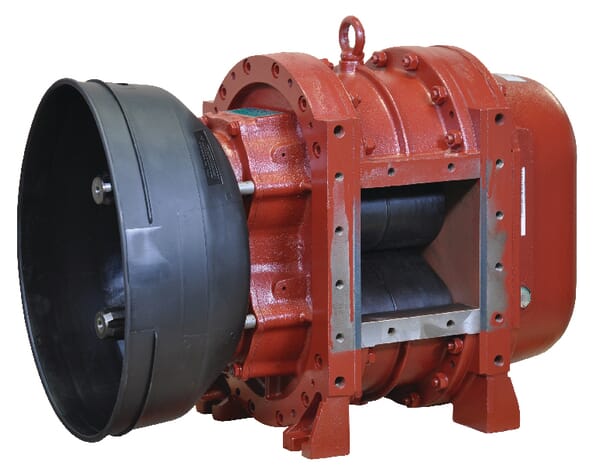

Battioni Pagani BR pump 85m³/h BR80D
£5,040.73 excl.
£6,048.88 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000101709

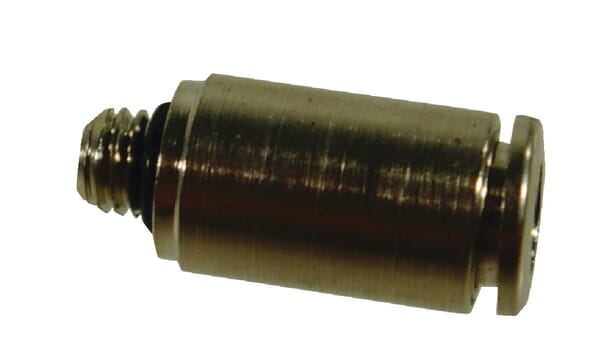

Battioni Pagani Internal Coupling 4010001035
