£2,396.05
excl. VAT
£2,875.26 incl. VAT
£2,875.26
incl. VAT
£2,396.05 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

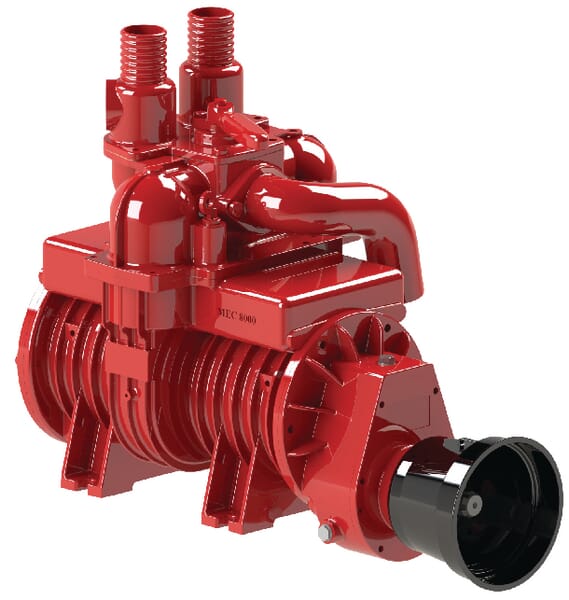

| Application range | These vacuum pumps with vanes are mainly used in agriculture for filling and emptying slurry tanks |
|---|---|
| Ballast air injection system | No |
| Benefits | As B.P. pumps are tested, inspected and packaged with the utmost care, trouble-free start-up is 100% guaranteed |

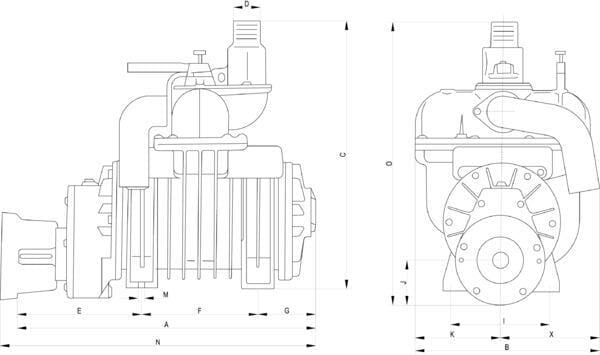

| BTotal width | 490 mm |
| Consists of | These pumps are supplied with standard vanes ("Long-life" vanes available on request), Without pressure relief valve (1 1/4": 0125013 / 1 1/2": 0150013) and vacuum valve (0155513), The pumps are delivered without lubrication oil (BP5070), Including PTO shaft cover |
| Crash protection system | Yes |
| DDiameter of hose connection | 80 mm |
| Depression valve connection diameter | 1-1/2 Inch |
| Details | Each pump is subjected to a final check in the factory, in which the vacuum, compression and lubrication are tested, among other factors, A test report relating to the serial number is drawn up for each pump |
| Drive type | PTO 540 rpm |
| EMounting holes to shaft end distance | 311 mm |
| GMounting holes to end distance | 189 mm |
| IMounting holes distance | 247 mm, 245 mm |
| JShaft centre to bottom distance | 80 mm |
| KShaft centre to left side end distance | 220 mm |
| Lubrication system type | Automatic |
| Max. relative pressure | 1.5 BAR |
| Max. shaft rotation | 600 r/min |
| Max vacuum | 0.9 BAR |
| MMounting holes diameter | 18 mm |
| Nominal volume flow rate | 12750 l/min |
| NTotal length | 811 mm |
| OHeight | 540 mm |
| Power requirement for max. pressure | 33 kW |
| Power requirement for max. vacuum | 28 kW |
| Rotation direction | Counter-clockwise (CCW) |
| Rotor housing height | 326 mm |
| Safety valve connection diameter | 2 Inch |
| Shaft diameter | 1-3/8 Inch |
| Unit | Each |
| Upper housing height | 214 mm |
| Vane type | Long life |
| Weight | 228 kg |
| XShaft centre to right side end distance | 220 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | — |
| Dimensions | — |
| Dangerous goods | No |
You might also like
Free shipping
BPA000236480

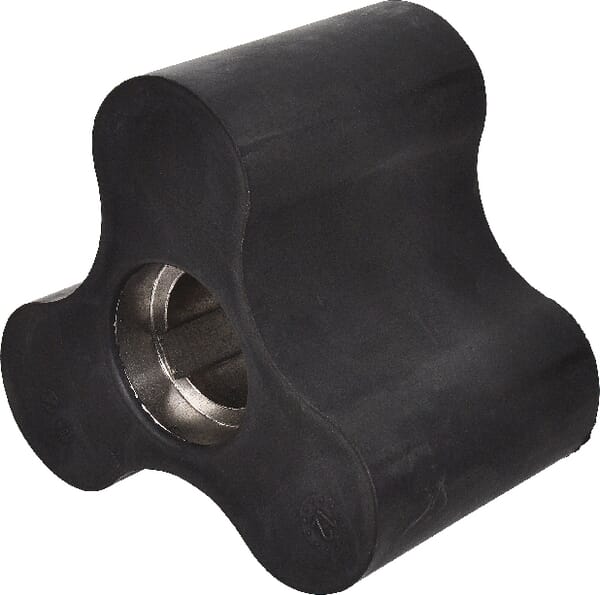

Battioni Pagani Rotor NBR BR-EVO 50 BR23N
£722.12 excl.
£866.54 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000235568
Battioni Pagani Shaft BR 160 D B61160D
£808.28 excl.
£969.94 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000234011

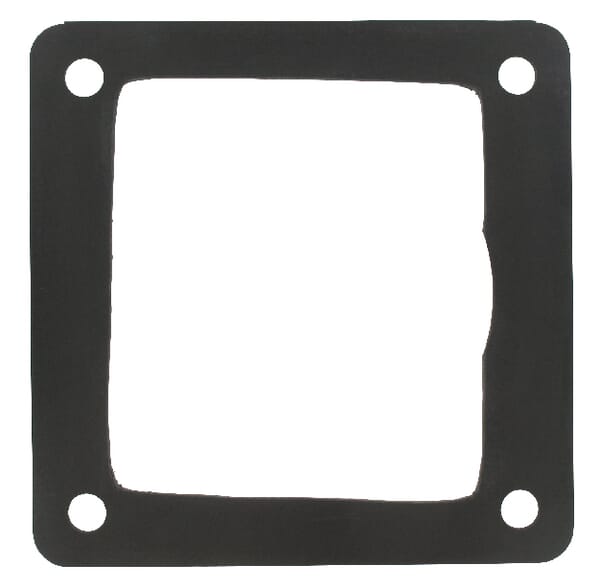

Battioni Pagani Flange gasket BR-EVO 260 BREVO74
£95.21 excl.
£114.25 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000109035
Battioni Pagani Garda pinion - Z56-M3 Wpt/Ga 4020607042
£627.51 excl.
£753.01 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000236673

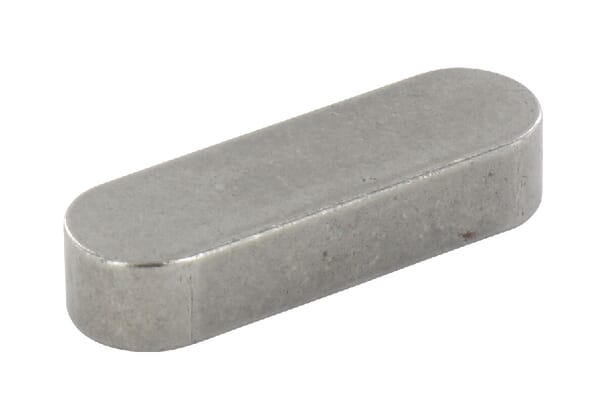

Battioni Pagani key 14x9x45 BR-EVO 90 BRE34
