£6,113.93
excl. VAT
£7,336.72 incl. VAT
£7,336.72
incl. VAT
£6,113.93 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Ballast air injection system | Yes |
|---|---|
| Crash protection system | Yes |
| Depression valve connection diameter | 1-1/2 Inch |
| Diameter of hose connection | 100 mm |
| Drive type | Hydraulic |
| Includes | Pumps are delivered without oil (art. BP5070), Pumps are supplied without cooling radiator |
| Long description | Water cooler highly recommended for inclusion in cooling system., The water-cooled BPS pump is built to run continuously for a long time. This makes it ideal for e.g. large slurry tanks with injection system, vacuum trucks and industrial applications. The KPS pump is the ideal solution for professional users and contractors. |
| Lubrication system type | Automatic |
| Max. relative pressure | 1.5 BAR |
| Max vacuum | 0.95 BAR |
| Nominal volume flow rate | 15270 l/min |
| Power requirement for max. vacuum | 22 kW |
| Product details | Item number breakdown:, KPS = Model, B = BALLAST system, air injection, 490, 550, 670 = Series, D = Direct driven, 1000 rpm, M = Drive with gearbox, 540 rpm, P = Pulley driven, H = Hydraulic pump driven, L = Rotation counter clockwise, R = Rotation clockwise, A = Automatic lubrication, 100 = Ø hose connection, 100mm, The pump rotation is determined with the drive shaft aligned with the observer. If, for example, a pump is driven directly by a tractor, it must be driven counter clockwise. |
| Pros | Liquid cooled housing with integrated water pump, Extra air cooling (BALLAST air injection system), Comes standard with heat-resistant "Long Life" blades, Automatic lubrication, The pump is suitable for continuous operation in both vacuum and pressure modes, Crash protection system: in case of fault or blade breakage, the rotor and the rotor housing will be protected because the rotor and the mounting flange can slide away downwards, Easy blade wear check through inspection hole with wear indication mark, A test report by serial number is delivered with each pump |
| Rotation direction | Clockwise (CW) |
| Unit | Each |
| Vane type | Long life |
| Weight | 253 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 248000 g |
| Dimensions | 900 × 700 × 490 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000231454

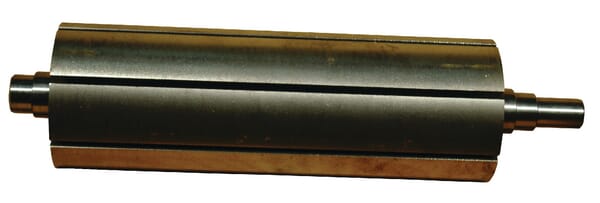

Battioni Pagani Rotor for MEC / P AM5P
£513.28 excl.
£615.94 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000109031

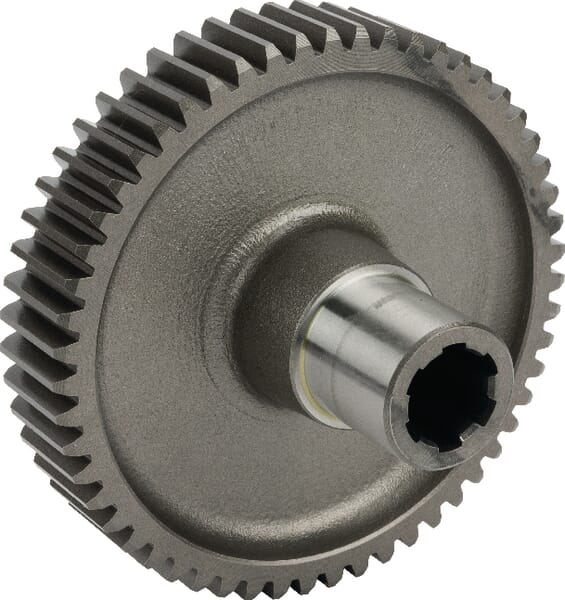

Battioni Pagani Gear with shaft Z55 4020507017
£283.37 excl.
£340.04 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000280772
Battioni Pagani O-ring 278.77x6.99mm 70 shore EPDM black GG8250
£11.58 excl.
£13.90 incl.
In stock
Expected to ship on Friday 18 September
BPA000235654

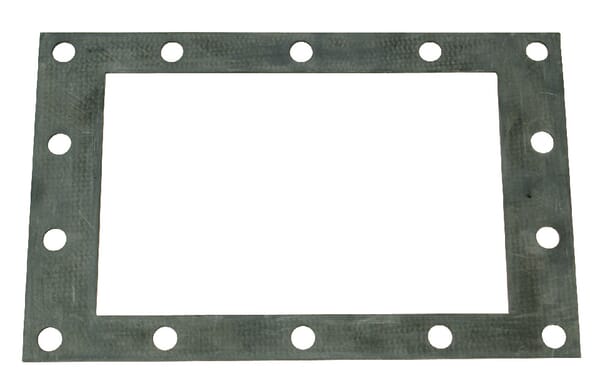

Battioni Pagani Gasket BR 280 D B8280
£39.12 excl.
£46.94 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000101847
Battioni Pagani Front Pin 4011907079
£292.27 excl.
£350.72 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000235465

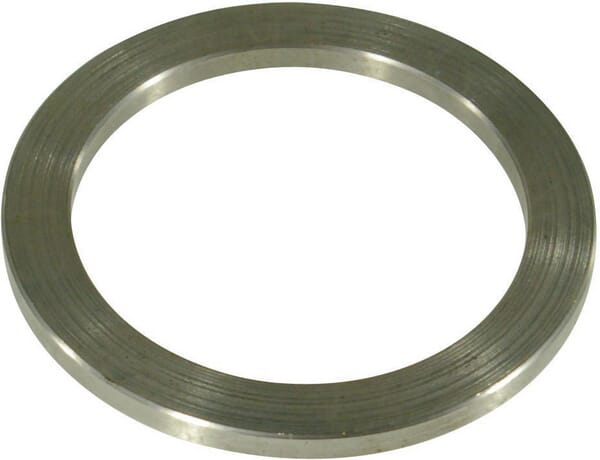

Battioni Pagani Spacer ring BR B36
