£4,226.96
excl. VAT
£5,072.35 incl. VAT
£5,072.35
incl. VAT
£4,226.96 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

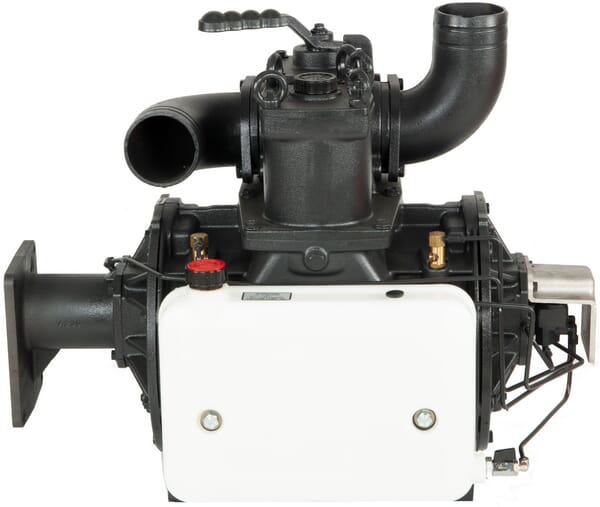

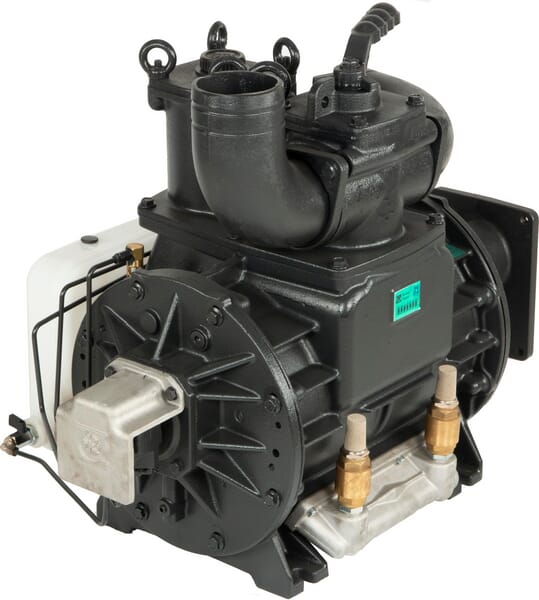

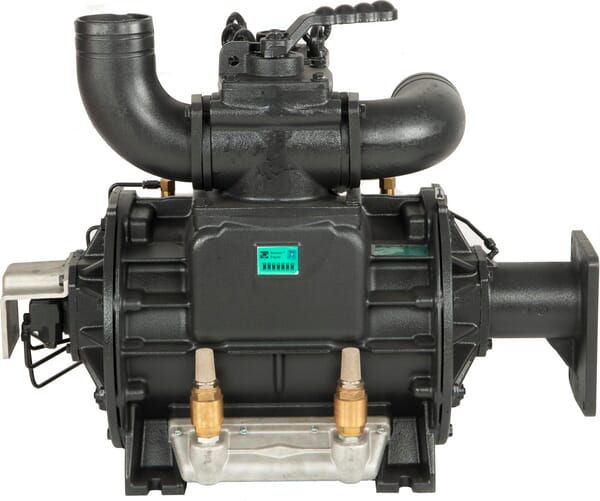

| Application range | These vacuum pumps with vanes are mainly used in agriculture for filling and emptying slurry tanks |
|---|---|
| Ballast air injection system | Yes |
| Benefits | Minimum repair costs thanks to the unique automatic protection system, As pumps from B.P. are tested, inspected and packaged with the utmost care, trouble-free start-up is 100% guaranteed |
| Consists of | Without pressure relief valve (item 0250013) and vacuum valve (item 0155513), Without hydraulic motor and key bush, The pumps are delivered without lubrication oil (item BP5070), Including hydraulic base for mounting the hydraulic motor |
| Crash protection system | Yes |
| Depression valve connection diameter | 1-1/2 Inch |
| Details | BALLAST pumps have a crash protection system (for example, this can protect the rotor and the rotor housing if a disc breaks by pushing down the rotor, including flange mounting, so that it is out of the way), BALLAST pumps provide longer running times in vacuum operation, Supplied with heat-resistant "long-life" discs as standard, The pump temperature can be read on the temperature gauge strips, The inspection hole with maximum wear indicator allows the wear on the discs to be checked, Battioni Pagani performs vacuum, compression and lubrication tests on all pumps before they leave the factory, A test report is prepared for each pump by serial number |
| Diameter of hose connection | 100 mm |
| Drive type | Hydraulic |
| Hydraulic motor required capacity | 125 l/min |
| Lubrication system type | Automatic |
| Max. relative pressure | 2.5 BAR |
| Max. shaft rotation | 1400 r/min |
| Max vacuum | 0.95 BAR |
| Nominal volume flow rate | 16800 l/min |
| Power requirement for max. vacuum | 24 kW |
| Properties | These pumps can generate both positive pressure and vacuum |
| Rotation direction | Clockwise (CW) |
| Safety valve connection diameter | 2 Inch |
| Technical info | Meaning of the composition of the number:, BALLAST = series, 16000/16500 = type, H = hydraulically driven, The BALLAST pumps have automatic lubrication installed as standard, The lubrication is applied by the manufacturer and can not be adjusted without the proper tool, Always check whether the lubrication is actually working when the pump is switched on, Oil to be used for lubricating the vanes: genuine oil from B.P. Oil item number: BP5070, Pumps with a hydraulic drive rotate clockwise, The direction of rotation is determined when the axle to be driven is aligned with the observer |
| Unit | Each |
| Vane type | Long life |
| Weight | 245 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 260000 g |

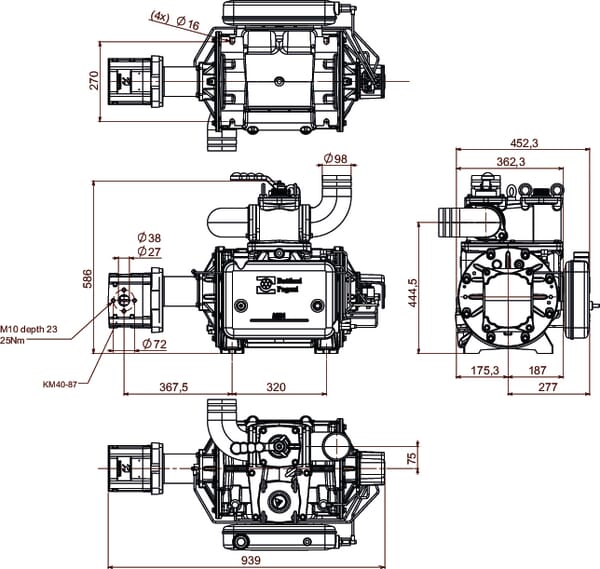

| Dimensions | 830 × 620 × 480 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000150477

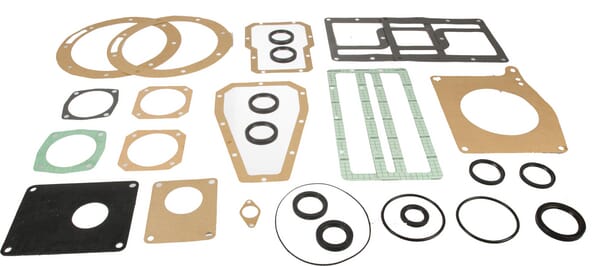

Battioni Pagani Gasket kit WPT 6010202009
£110.78 excl.
£132.94 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000321336

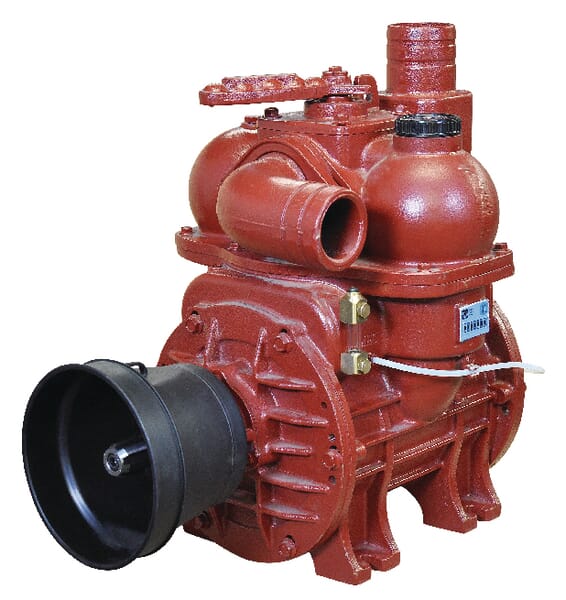

Battioni Pagani Vacuum pump direct drive CCW auto-lube MEC9000DLA
£2,792.36 excl.
£3,350.83 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping

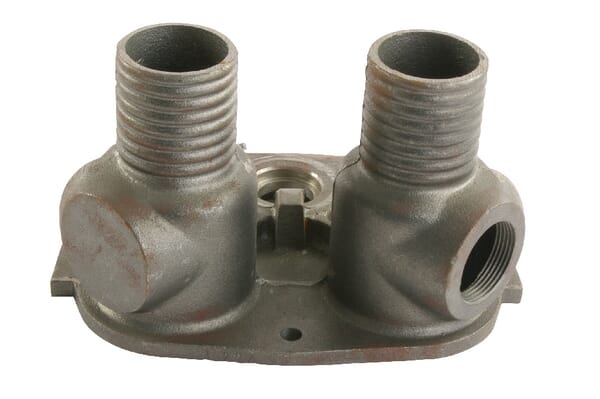

BPA000231468
Battioni Pagani Lid AM84
£188.68 excl.
£226.42 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000315158

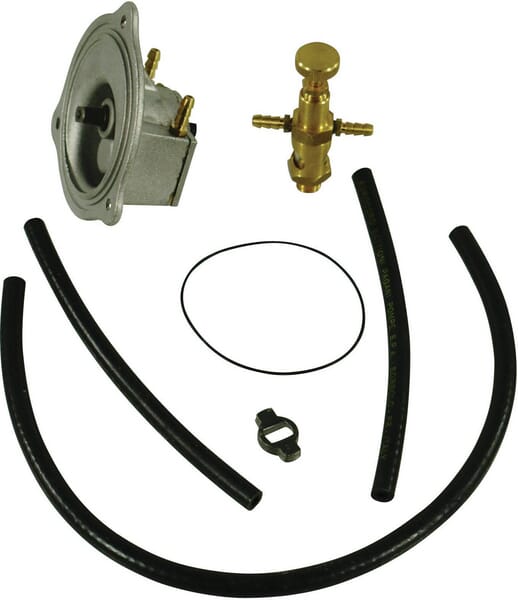

Battioni Pagani Oil pump complete MAM99
£87.26 excl.
£104.71 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000109018
Battioni Pagani Coupling With Drive Flange 4020107015
£345.95 excl.
£415.14 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping

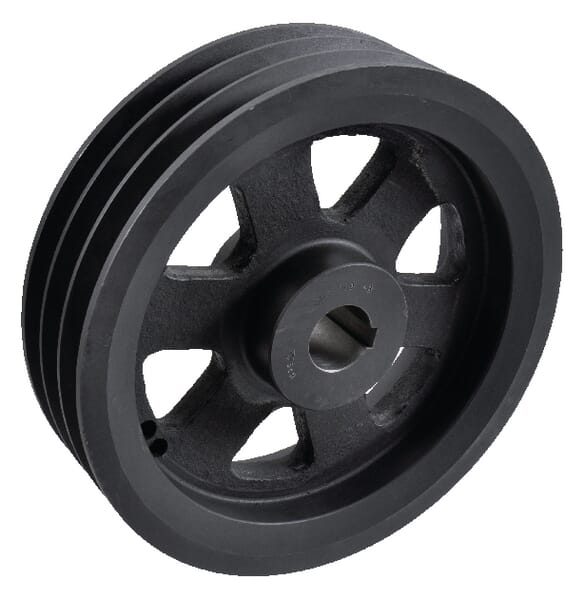

BPA000064270
