SKU BPA000321275 · Part No MEC16500H

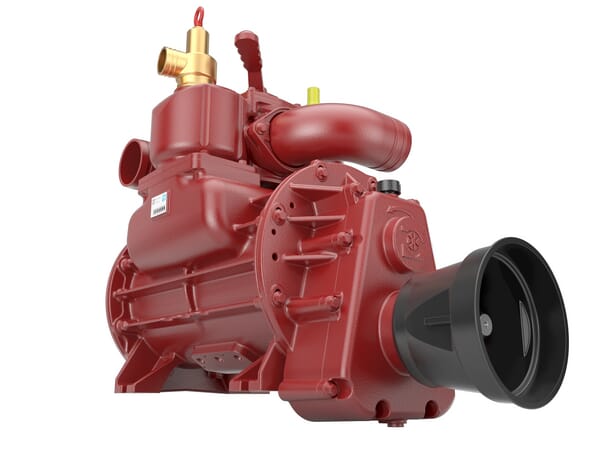

Battioni Pagani Vacuum pump hydraulic drive AL CW D100 LL MEC16500H

Name: Vacuum pump hydraulic drive AL CW D100 LL Battioni Pagani
Brand: Battioni Pagani
SKU: BPA000321275
Price: 4329.94 GBP
Availability: BackOrder

Ballast air injection system	No
Crash protection system	Yes
Depression valve connection diameter	1-1/2 Inch
Diameter of hose connection	100 mm
Drive type	Hydraulic
Hydraulic motor required capacity	125 l/min
Includes	Without pressure relief valve (item 0250013) and vacuum valve (item 0155513), Without hydraulic motor and key bush, The pumps are delivered without lubrication oil (item BP5070), Including hydraulic base for mounting the hydraulic motor
Long description	MEC16500 pumps have a crash protection system (for example, this can protect the rotor and the rotor housing if a disc breaks by pushing down the rotor, including flange mounting, so that it is out of the way), MEC16500 pumps provide longer running times in vacuum operation, Supplied with heat-resistant "long-life" discs as standard, The pump temperature can be read on the temperature gauge strips, The inspection hole with maximum wear indicator allows the wear on the discs to be checked, Battioni Pagani performs vacuum, compression and lubrication tests on all pumps before they leave the factory, A test report is prepared for each pump by serial number
Lubrication system type	Automatic
Max. relative pressure	2.5 BAR
Max. shaft rotation	1400 r/min
Max vacuum	0.95 BAR
Nominal volume flow rate	16800 l/min
Power requirement for max. vacuum	24 kW
Product details	Meaning of the composition of the number:, MEC = series, 16500 = type, H = hydraulically driven, The MEC16500 pumps have automatic lubrication installed as standard, The lubrication is applied by the manufacturer and can not be adjusted without the proper tool, Always check whether the lubrication is actually working when the pump is switched on, Oil to be used for lubricating the vanes: genuine oil from B.P. Oil item number: BP5070, Pumps with a hydraulic drive rotate clockwise, The direction of rotation is determined when the axle to be driven is aligned with the observer, These vacuum pumps with vanes are mainly used in agriculture for filling and emptying slurry tanks, These pumps can generate both positive pressure and vacuum
Pros	Minimum repair costs thanks to the unique automatic protection system, As pumps from B.P. are tested, inspected and packaged with the utmost care, trouble-free start-up is 100% guaranteed
Rotation direction	Clockwise (CW)
Safety valve connection diameter	2 Inch
Unit	Each
Vane type	Long life
Weight	244 kg

EAN	—
Unit of measure	EA
Weight	—
Dimensions	—
Dangerous goods	No
