£3,389.52
excl. VAT
£4,067.42 incl. VAT
£4,067.42
incl. VAT
£3,389.52 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September

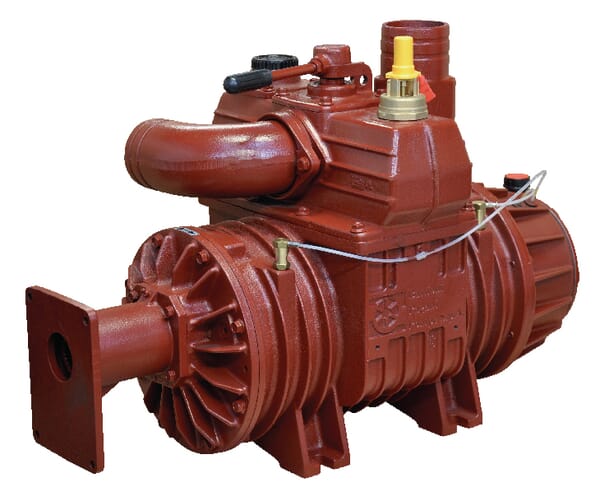

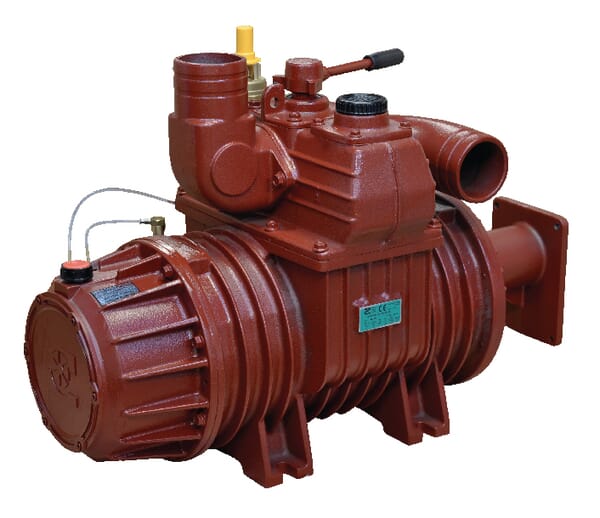

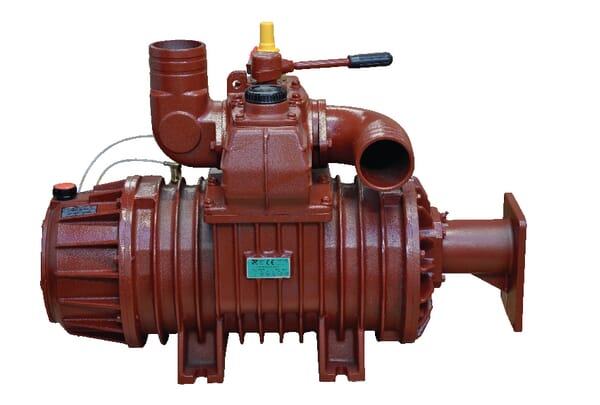

Product details
| Application range | These vacuum pumps with vanes are mainly used in agriculture for filling and emptying slurry tanks |
|---|---|
| Ballast air injection system | No |
| Consists of | Without hydraulic motor and key bush, Including hydraulic base for mounting the hydraulic motor, Including vacuum valve, Without pressure relief valve (item 0200013), These pumps are supplied with standard vanes Long-life vanes available on request, Including swivelling connection pipes, The pumps are delivered without lubrication oil (item BP5070) |
| Crash protection system | No |
| Drive type | Hydraulic |
| Lubrication system type | Automatic |
| Max. relative pressure | 1.5 BAR |
| Max. shaft rotation | 1200 r/min |
| Max vacuum | 0.9 BAR |
| Nominal volume flow rate | 14800 l/min |
| Power requirement for max. vacuum | 31 kW |
| Properties | These pumps can generate both positive pressure and vacuum |
| Rotation direction | Clockwise (CW) |
| Technical info | Composition of item numbers: STAR = series, 72 = type, H = hydraulic drive, R = clockwise rotation, A = automatic lubrication, On pumps without automatic lubrication (no "A" in the item number), the pump is equipped with a forced lubrication system that is adjusted using dripper nozzles • Forced lubrication available on request, On pumps without automatic lubrication, the quantity of lubrication oil is set in the factory and cannot be changed without a tool, In the case of forced lubrication, as with automatic lubrication, the function must be checked at all times during operation, Hydraulically driven pumps rotate clockwise. Anti-clockwise rotation available on request, The direction of rotation is determined when the axle to be driven is aligned with the observer, Oil to be used for lubricating the vanes: genuine oil from B. P. (item number BP5070), STAR replaces the Agri- and Euro series |
| Unit | Each |
| Vane type | Standard |
| Weight | 263 kg |
Compatible accessories
Parts and components that work with this product.
400111

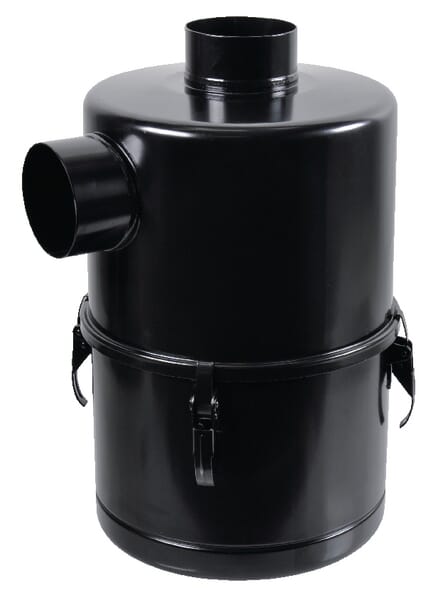

Battioni Pagani Filter-silencer 14.000 l/min 400111
£768.31 excl.
£921.97 incl.
40027

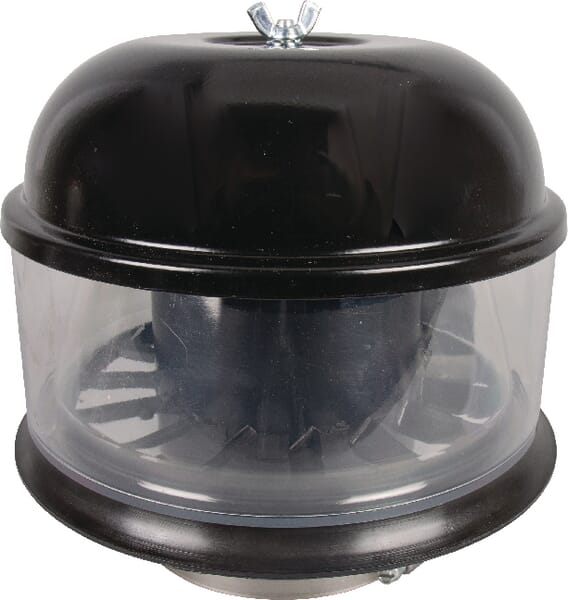

Battioni Pagani Air pre-cleaner 40027
£186.87 excl.
£224.24 incl.
6080200061

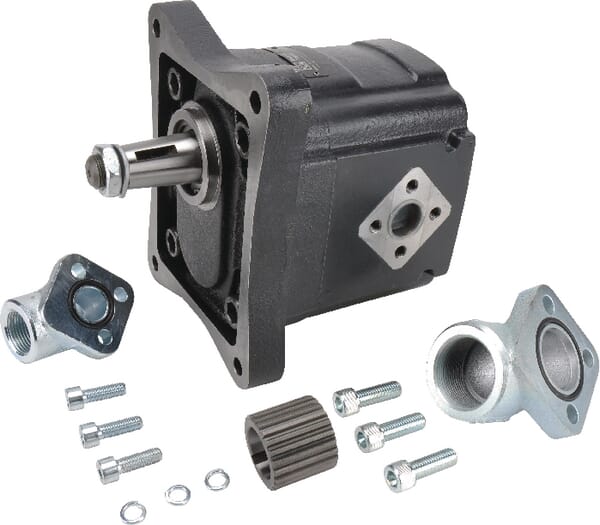

Battioni Pagani Hydraulic motor KM 40.87 SO GR. 4 6080200061
£1,574.54 excl.
£1,889.45 incl.
BP5070

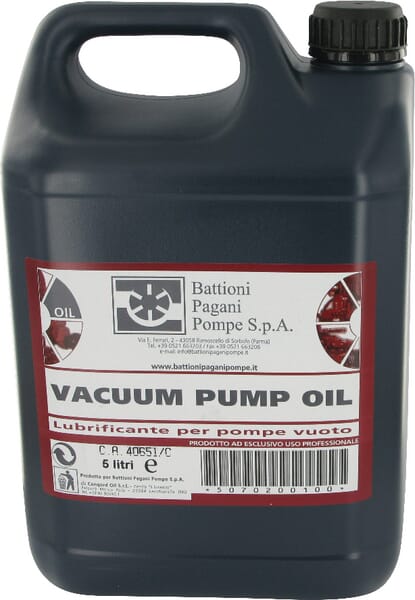

Battioni Pagani Vacuum pump oil, 5l, mineral, by BP5070
£74.06 excl.
£88.87 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 150000 g |
| Dimensions | 850 × 450 × 600 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000101755
Battioni Pagani Gearbox - Ballast 16000/K-Ka 4010301033
£700.85 excl.
£841.02 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000312982

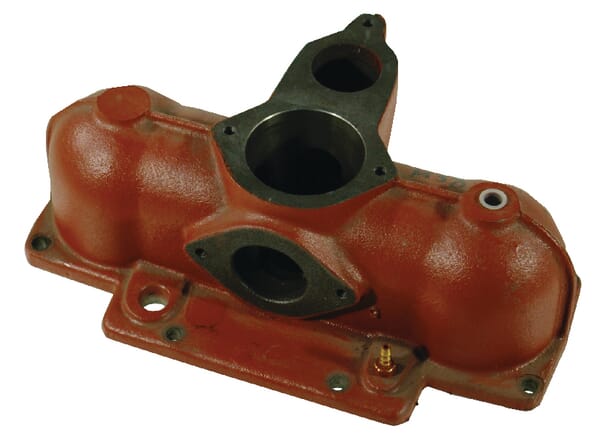

Battioni Pagani Upper head M38DF
£244.29 excl.
£293.15 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000116466

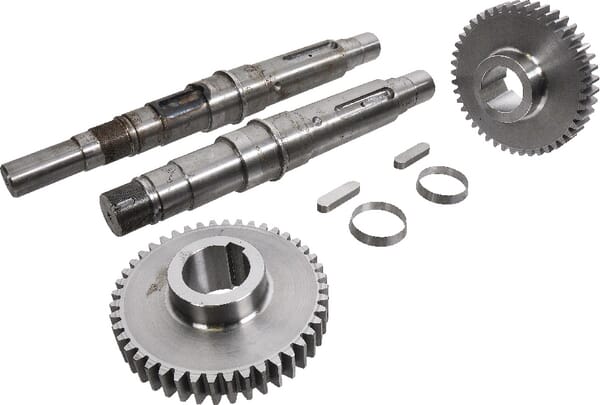

Battioni Pagani New timing P-H BR-EVO 260 4440001344
£2,973.99 excl.
£3,568.79 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000321330

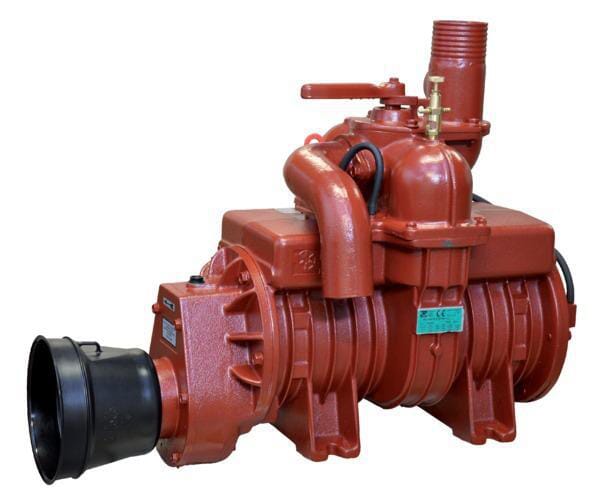

Battioni Pagani Vacuum pump standard MEC8000M
£1,635.32 excl.
£1,962.38 incl.
In stock
Expected to ship on Friday 18 September
BPA000236702

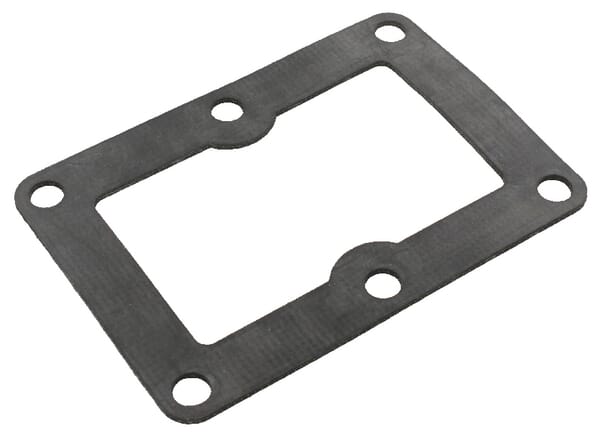

Battioni Pagani Flange gasket BR-EVO 90 BRE74
£95.21 excl.
£114.25 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000350674

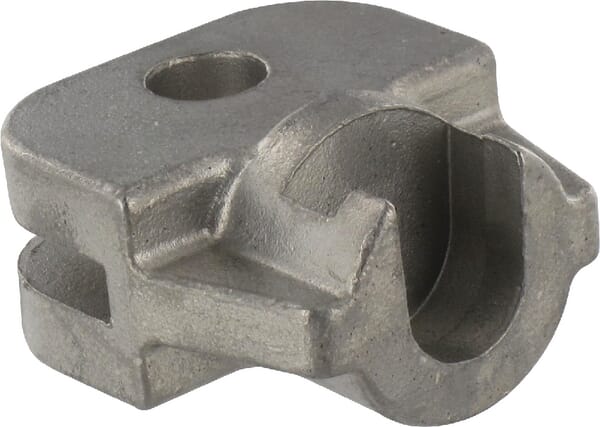

Battioni Pagani Connection block SA13
