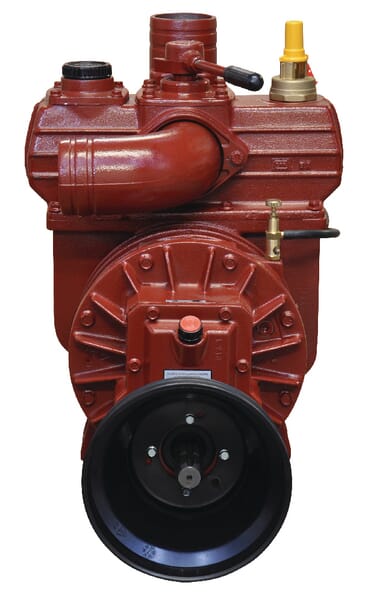

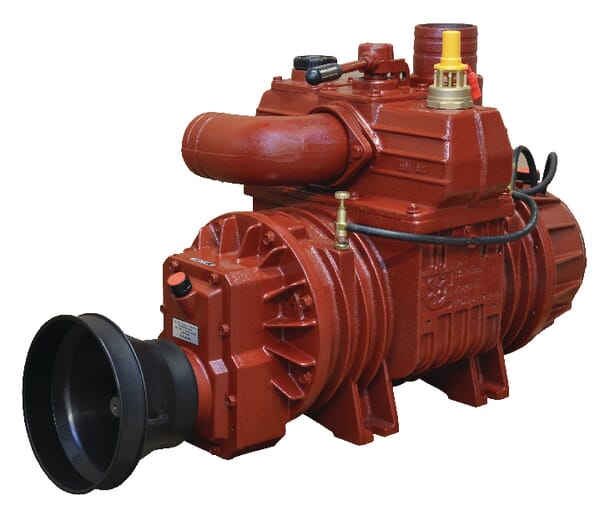

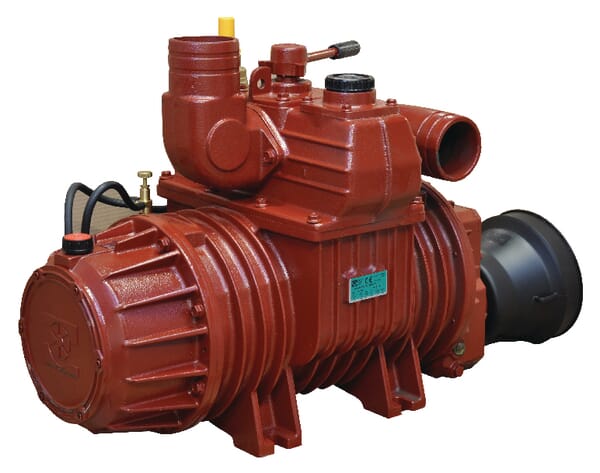

Product details

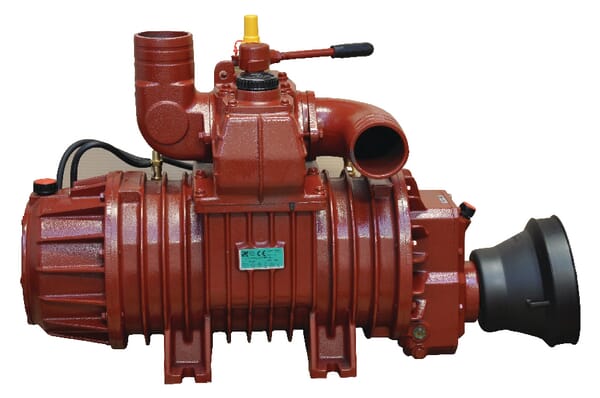

| Application range | These vacuum pumps with vanes are mainly used in agriculture for filling and emptying slurry tanks |
|---|---|

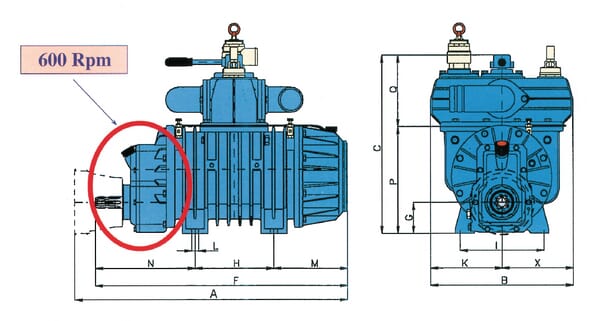

| ATotal length | 894 mm |
| Ballast air injection system | No |
| BTotal width | 490 mm |
| CHeight | 540 mm |
| Consists of | Including PTO shaft cover, Including vacuum valve, Without pressure relief valve (item 0200013), These pumps are supplied with standard vanes Long-life vanes available on request, Including swivelling connection pipes, The pumps are delivered without lubrication oil (item BP5070) |
| Crash protection system | No |
| Depression valve connection diameter | 1-1/2 Inch |
| Drive type | PTO 540 rpm |
| IMounting holes distance | 247 mm, 245 mm |
| KShaft centre to left side end distance | 220 mm |
| LMounting holes diameter | 18 mm |
| Lubrication system type | Forced |
| Max. relative pressure | 1.5 BAR |
| Max. shaft rotation | 600 r/min |
| Max vacuum | 0.9 BAR |
| MMounting holes to end distance | 269 mm |
| NMounting holes to shaft end distance | 351 mm |
| Nominal volume flow rate | 14800 l/min |
| OUpper housing height | 214 mm |
| Power requirement for max. pressure | 37 kW |
| Power requirement for max. vacuum | 31 kW |
| Properties | These pumps can generate both positive pressure and vacuum |
| PRotor housing height | 326 mm |
| Rotation direction | Counter-clockwise (CCW) |
| Safety valve connection diameter | 2 Inch |
| Shaft diameter | 1-3/8 Inch |
| Technical info | Composition of the item numbers: STAR = series, 72 = type, M = indirect drive 540 rpm, A = automatic lubrication, On pumps without automatic lubrication (no "A" in the item number), the pump is equipped with a forced lubrication system that is adjusted using dripper nozzles, On pumps without automatic lubrication, the quantity of lubrication oil is set in the factory and cannot be changed without a tool, In the case of forced lubrication, as with automatic lubrication, the function must be checked at all times during operation, Pumps with indirect drive (M) must be driven anti-clockwise, The direction of rotation is determined when the axle to be driven is aligned with the observer, If the pump has a direct drive (for example, by a tractor unit) it must be driven anti-clockwise, Oil to be used for lubricating the vanes: genuine oil from B. P. (item number BP5070), STAR replaces the Agri- and Euro series |
| Unit | Each |
| Vane type | Standard |
| Weight | 263 kg |
| XShaft centre to right side end distance | 220 mm |
Compatible accessories
Parts and components that work with this product.
400111
Battioni Pagani Filter-silencer 14.000 l/min 400111
£768.31 excl.
£921.97 incl.
40027
Battioni Pagani Air pre-cleaner 40027
£186.87 excl.
£224.24 incl.
6080200290
Battioni Pagani Final air filter 6080200290
£1,081.26 excl.
£1,297.51 incl.
BP5070
Battioni Pagani Vacuum pump oil, 5l, mineral, by BP5070
£74.06 excl.
£88.87 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 276000 g |
| Dimensions | 1000 × 760 × 900 mm |
| Dangerous goods | No |
You might also like
BPA000129578

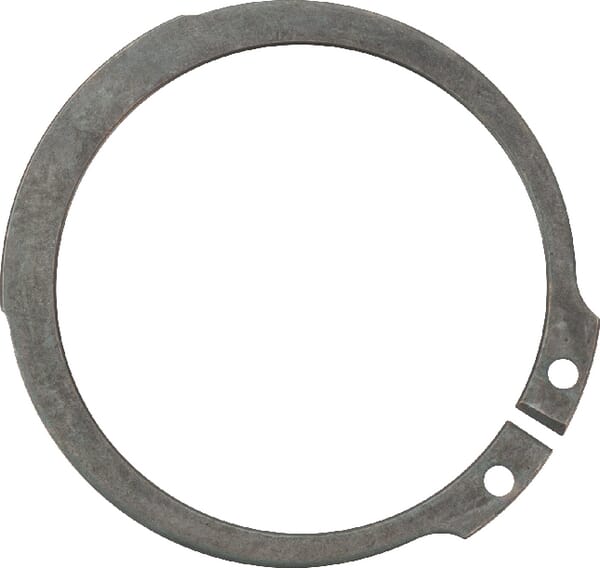

Battioni Pagani Circlip - D 45 E 5050507012
£3.28 excl.
£3.94 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000321300

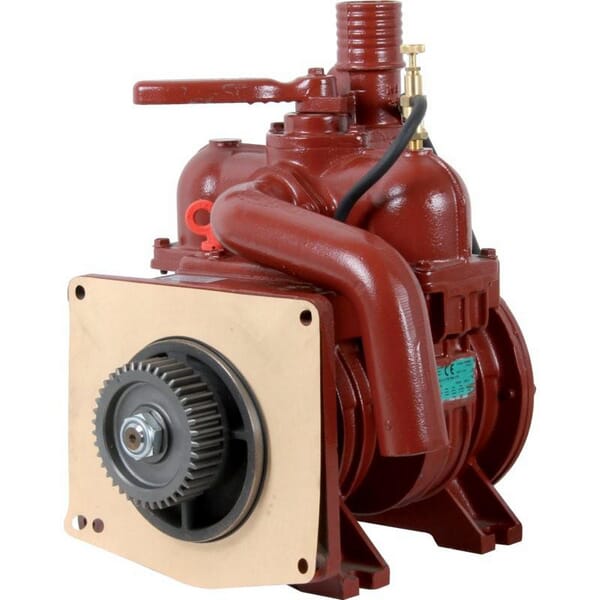

Battioni Pagani Vacuum pump for GARDA LF MEC5000G
£1,222.36 excl.
£1,466.83 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000150459

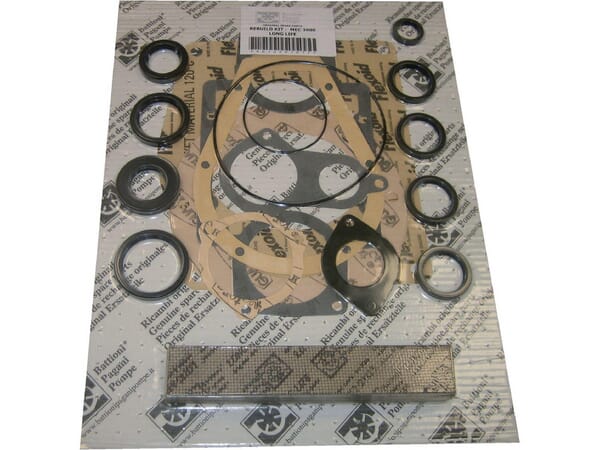

Battioni Pagani Rebuild kit - MEC 6500 MSC 6010201067
£201.57 excl.
£241.88 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000236523

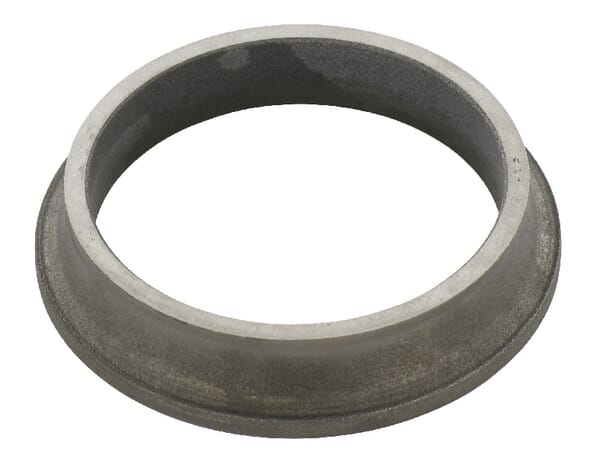

Battioni Pagani Tung carbd mechanical seal BR38W
£464.20 excl.
£557.04 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000101855

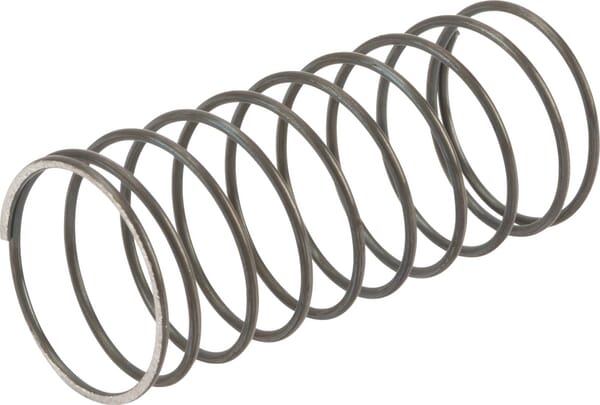

Battioni Pagani Spring for valve Ballast-Aida 4012007015
£43.20 excl.
£51.84 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000245377
Battioni Pagani Key 6x6x25 MECII M/G CM6DF
£1.84 excl.
£2.21 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
Free shipping
BPA000093019
FAG Angular contact ball bearing 50x110x44.4mm INA/FAG 3310BTVH
£171.30 excl.
£205.56 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000070054
Kramp Oil seal 22x40x10mm type:CC DIN 3760 1x 224010CCP001
£2.12 excl.
£2.54 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000207679
Kverneland Sticker kit 3Xx Xf- Dm40Xxs Ansi A132440930
£112.39 excl.
£134.86 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000272489

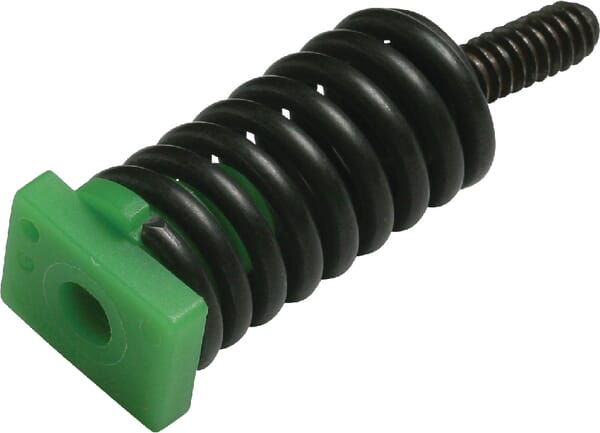

gopart Damping spring 504795601, Suitable for Husqvarna FGP440034
£4.44 excl.
£5.33 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000051744
Kramp Oil seal 16x22x4mm type:CB DIN 3760 1x 16224CBP001
£1.69 excl.
£2.03 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000228996
TeeJet Air injection nozzle AI 110° 015 green stainless steel AI110015VS
£22.83 excl.
£27.40 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000346529

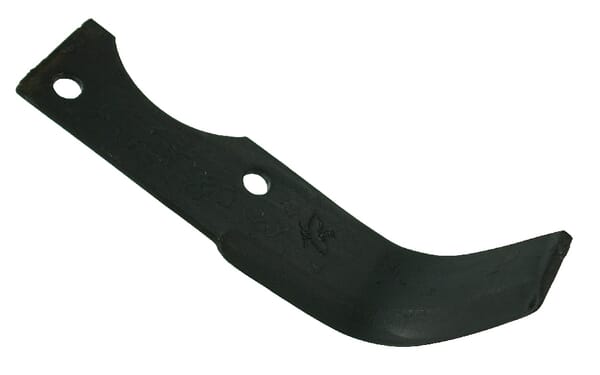

Non Original Rotovator blade RH 195x70x45mm 5mm thick suitable for Goldoni RB25021
£4.28 excl.
£5.14 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000201934
Kramp Hexagon head bolt DIN933 M8x20 stainless steel A2 933820RVSP001
£1.00 excl.
£1.20 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000066119
Corteco Seal cassette 170x200x15 FKM 21529177010N
£69.50 excl.
£83.40 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000091434

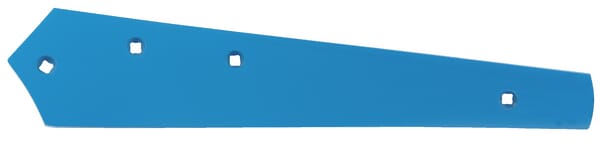

Lemken Mouldboard slat 1 US30/35/40, LH, 616x10x127 34410071
£94.42 excl.
£113.30 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000173733

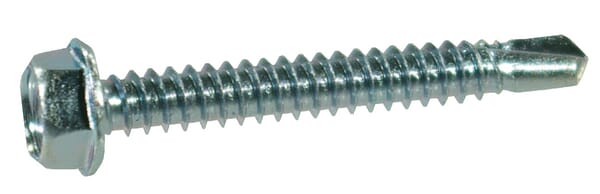

Kramp Self tapping screw 5.5x50mm, 8mm flange hex head, DIN 7504 7504K5550P200
