£6,146.31
excl. VAT
£7,375.57 incl. VAT
£7,375.57
incl. VAT
£6,146.31 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

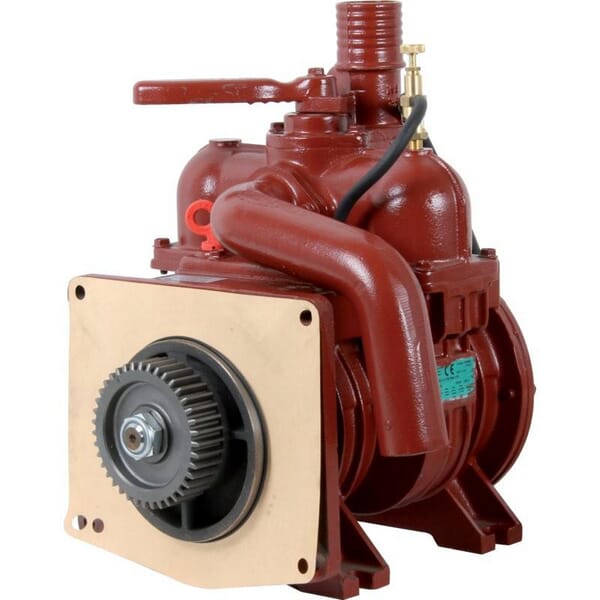

Product details
| Ballast air injection system | Yes |
|---|---|
| Crash protection system | Yes |
| Depression valve connection diameter | 1-1/2 Inch |
| Diameter of hose connection | 100 mm |
| Drive type | Pulley |
| Includes | Pumps are delivered without oil (art. BP5070), Pumps are supplied without cooling radiator |

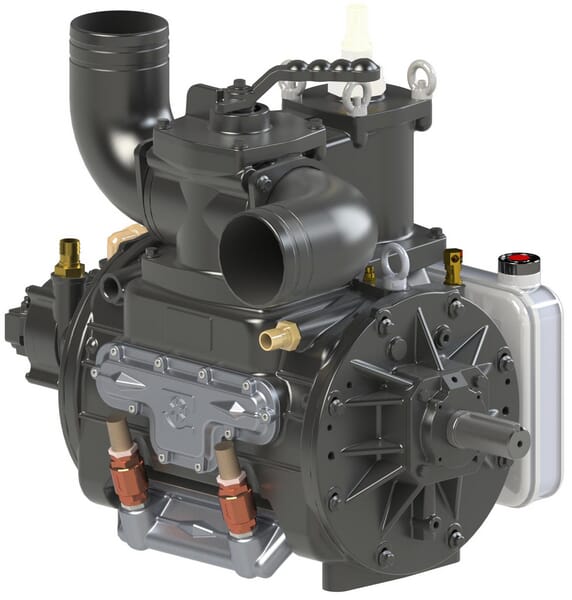

| Long description | Water cooler highly recommended for inclusion in cooling system., The water-cooled BPS pump is built to run continuously for a long time. This makes it ideal for e.g. large slurry tanks with injection system, vacuum trucks and industrial applications. The KPS pump is the ideal solution for professional users and contractors. |
| Lubrication system type | Automatic |
| Max. relative pressure | 1.5 BAR |
| Max vacuum | 0.95 BAR |
| Nominal volume flow rate | 15270 l/min |
| Power requirement for max. vacuum | 22 kW |
| Product details | Item number breakdown:, KPS = Model, B = BALLAST system, air injection, 490, 550, 670 = Series, D = Direct driven, 1000 rpm, M = Drive with gearbox, 540 rpm, P = Pulley driven, H = Hydraulic pump driven, L = Rotation counter clockwise, R = Rotation clockwise, A = Automatic lubrication, 100 = Ø hose connection, 100mm, The pump rotation is determined with the drive shaft aligned with the observer. If, for example, a pump is driven directly by a tractor, it must be driven counter clockwise. |
| Pros | Liquid cooled housing with integrated water pump, Extra air cooling (BALLAST air injection system), Comes standard with heat-resistant "Long Life" blades, Automatic lubrication, The pump is suitable for continuous operation in both vacuum and pressure modes, Crash protection system: in case of fault or blade breakage, the rotor and the rotor housing will be protected because the rotor and the mounting flange can slide away downwards, Easy blade wear check through inspection hole with wear indication mark, A test report by serial number is delivered with each pump |
| Rotation direction | Clockwise (CW) |
| Unit | Each |
| Vane type | Long life |
| Weight | 216 kg |
Compatible accessories
Parts and components that work with this product.
1502C12
Battioni Pagani Radiator+ventilator 12 V 1502C12
£1,628.66 excl.
£1,954.39 incl.
1502C24
Battioni Pagani Radiator+ventilator 24 V 1502C24
£1,541.37 excl.
£1,849.64 incl.
0155513
MZ Vacuum relief valve 1 1/2" 0155513
£27.03 excl.
£32.44 incl.
0250013
MZ Safety Valve 2 1/2" 0250013
£86.18 excl.
£103.42 incl.
2107E
Battioni Pagani Hydraulic switching set BALLAST 2107E
£301.18 excl.
£361.42 incl.
213E
Battioni Pagani Syphon 10.000-18.000 rpm B.P 213E
£946.74 excl.
£1,136.09 incl.
217E
Battioni Pagani Overflow valve 217E
£542.75 excl.
£651.30 incl.
217G
Battioni Pagani Overflow valve B.P 217G
£633.58 excl.
£760.30 incl.
400111
Battioni Pagani Filter-silencer 14.000 l/min 400111
£768.31 excl.
£921.97 incl.
40027
Battioni Pagani Air pre-cleaner 40027
£186.87 excl.
£224.24 incl.
4060505057
Battioni Pagani Manifold filter cartridge 4060505057
£120.56 excl.
£144.67 incl.
BP5070
Battioni Pagani Vacuum pump oil, 5l, mineral, by BP5070
£74.06 excl.
£88.87 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 235000 g |
| Dimensions | 900 × 650 × 550 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000321256

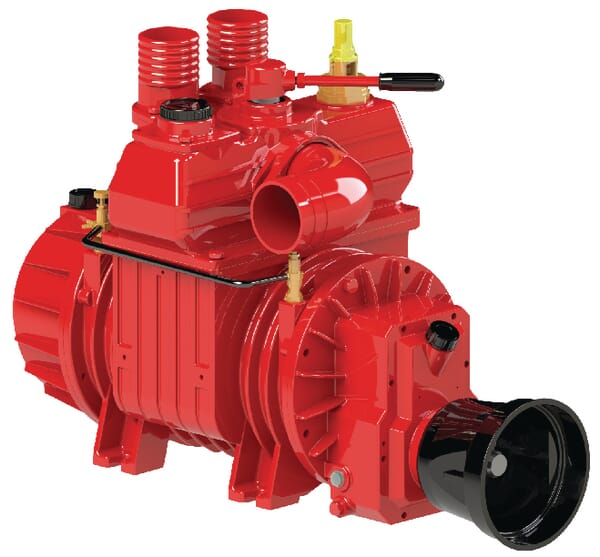

Battioni Pagani Vacuum pump double tank connection MEC11000MDU
£2,866.32 excl.
£3,439.58 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000312786
Battioni Pagani Rear cover B.P M3
£120.69 excl.
£144.83 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000064269

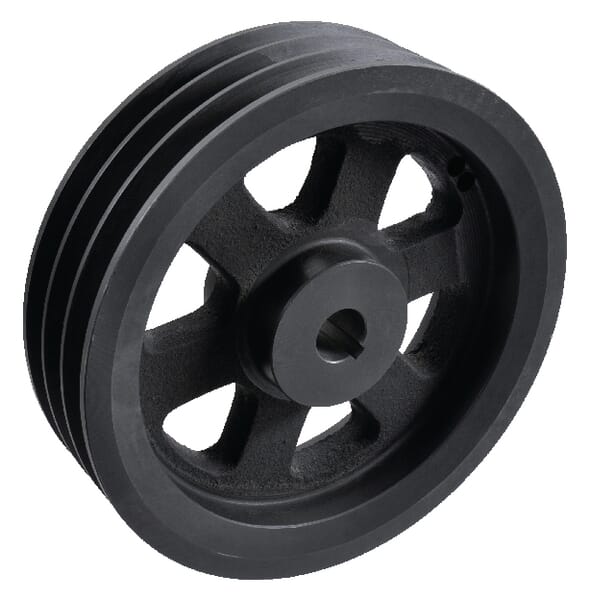

Battioni Pagani Pulley MEC 9000/13500, KPS490 2009C
£612.02 excl.
£734.42 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000231528
Battioni Pagani Repair kit MEC6500 with Long Life vanes AMEC7SPKIT
£490.07 excl.
£588.08 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000231527
Battioni Pagani Vane 370x46.5x6.5mm long life AMEC7SP
£70.60 excl.
£84.72 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000321316
Battioni Pagani Vacuum pump double tank connection MEC6500MDU
£2,509.96 excl.
£3,011.95 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000153554
FAG Deep groove ball bearing 20x52x15mm INA/FAG 6304TBP6C3
£42.30 excl.
£50.76 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000245915
Copenhagen Pro Classic paintbrush oval V star, black pigs hair 35mm CP2312235
£17.45 excl.
£20.94 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000305063
Kramp Fleece shirt 1/2 zip Ladies, charcoal M KW5011101811050
£59.54 excl.
£71.45 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000155629
FAG Deep groove ball bearing C3 90x160x30 INA/FAG 6218ZC3
£144.84 excl.
£173.81 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000026458
Bosch Rexroth Gear pump AZPFF-11-019/014RRR2002KSXXX12-S0205 0510665129
£1,544.22 excl.
£1,853.06 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000308815
Kramp Marker light LH LED, 0.7/1.4W, 12-24V, white/orange/red, 110x55x125mm, 3 LED's, LA30016
£22.70 excl.
£27.24 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000199859
Kramp Hexagon head bolt DIN931 M18x120 steel zinc-plated 10.9 93118120109
£5.05 excl.
£6.06 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000159310

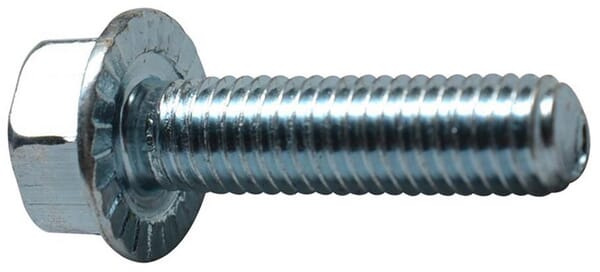

Kramp Hexagon flange bolt DIN6921 M10x40 steel zinc-plated 8.8 6921T1040
£0.87 excl.
£1.04 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000078971
BKT Tyre 11.5/80-15.3:300/80-15.3, 10 Ply, ST-155 AW, 3008015310AW
£142.22 excl.
£170.66 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000159269

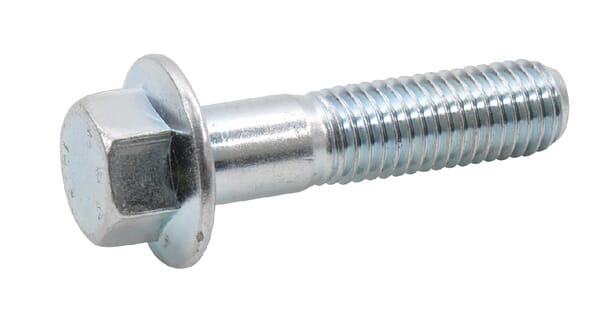

Kramp Hexagon flange bolt DIN6921 M12x60 steel zinc-plated 10.9 69211260109
