£3,144.32
excl. VAT
£3,773.18 incl. VAT
£3,773.18
incl. VAT
£3,144.32 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Ballast air injection system | No |
|---|---|
| Crash protection system | Yes |
| Depression valve connection diameter | 1-1/2 Inch |
| Diameter of hose connection | 100 mm |
| Drive type | Pulley |
| Includes | Without pressure relief valve (item 0250013) and vacuum valve (item 0155513), The pumps are delivered without lubrication oil (item BP5070), Without pulley |
| Long description | MEC16500 pumps have a crash protection system (for example, this can protect the rotor and the rotor housing if a disc breaks by pushing down the rotor, including flange mounting, so that it is out of the way), MEC16500 pumps provide longer running times in vacuum operation, Supplied with heat-resistant "long-life" discs as standard, The pump temperature can be read on the temperature gauge strips, The inspection hole with maximum wear indicator allows the wear on the discs to be checked, Battioni Pagani performs vacuum, compression and lubrication tests on all pumps before they leave the factory, A test report is prepared for each pump by serial number |
| Lubrication system type | Automatic |
| Max. relative pressure | 2.5 BAR |
| Max. shaft rotation | 1400 r/min |
| Max vacuum | 0.95 BAR |
| Nominal volume flow rate | 16800 l/min |
| Power requirement for max. vacuum | 24 kW |
| Product details | Meaning of the composition of the number:, MEC = series, 16500 = type, P = pulley drive, The MEC16500 pumps have automatic lubrication installed as standard, The lubrication is applied by the manufacturer and can not be adjusted without the proper tool, Always check whether the lubrication is actually working when the pump is switched on, Oil to be used for lubricating the vanes: genuine oil from B.P. Oil item number: BP5070, Pumps with a pulley drive rotate clockwise. Anti-clockwise rotation available on request, The direction of rotation is determined when the axle to be driven is aligned with the observer, Minimum repair costs thanks to the unique automatic protection system, As pumps from B.P. are tested, inspected and packaged with the utmost care, trouble-free start-up is 100% guaranteed, These vacuum pumps with vanes are mainly used in agriculture for filling and emptying slurry tanks, These pumps can generate both positive pressure and vacuum |
| Pros | Minimum repair costs thanks to the unique automatic protection system, As pumps from B.P. are tested, inspected and packaged with the utmost care, trouble-free start-up is 100% guaranteed |
| Rotation direction | Clockwise (CW) |
| Safety valve connection diameter | 2 Inch |
| Shaft diameter | 40 mm |
| Unit | Each |
| Vane type | Long life |
| Weight | 235 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 245000 g |
| Dimensions | 780 × 630 × 450 mm |
| Dangerous goods | No |
You might also like
BPA000109647
Battioni Pagani Rubber Washer 4060310005
£3.49 excl.
£4.19 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000321324
Battioni Pagani Vacuum pump std CCW auto-lube MEC8000A
£1,834.87 excl.
£2,201.84 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000321260

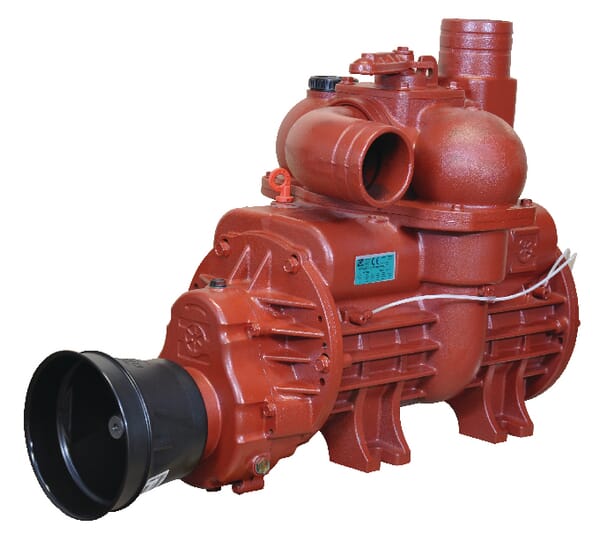

Battioni Pagani Vacuum pump std CCW auto-lube MEC13500A
£2,675.16 excl.
£3,210.19 incl.
In stock
Expected to ship on Wednesday 23 September
Free shipping
BPA000321322

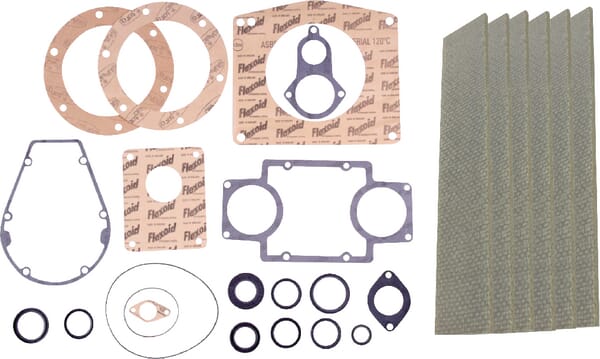

Battioni Pagani Repair kit MEC4000 with standard vanes MEC7KIT
£106.51 excl.
£127.81 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000245403
Battioni Pagani MEC11000/M rotor CME5MSC10
£977.45 excl.
£1,172.94 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000101766
Battioni Pagani Manifold Ballast 16000 4010501032
£168.85 excl.
£202.62 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000049760

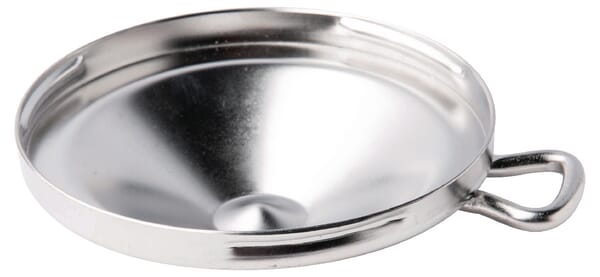

Unbranded Upper body steel for milk claw 360 ml 1580036001
