£3,762.92
excl. VAT
£4,515.50 incl. VAT
£4,515.50
incl. VAT
£3,762.92 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

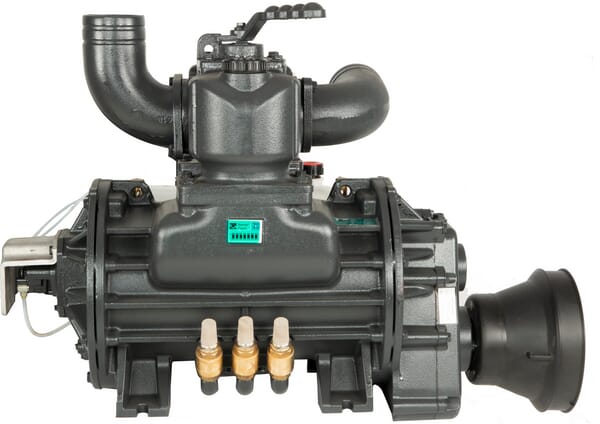

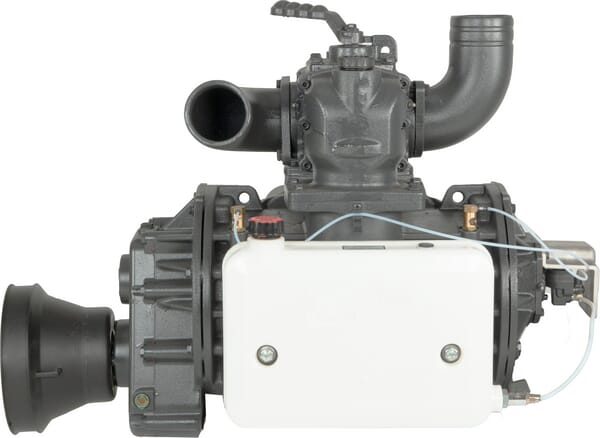

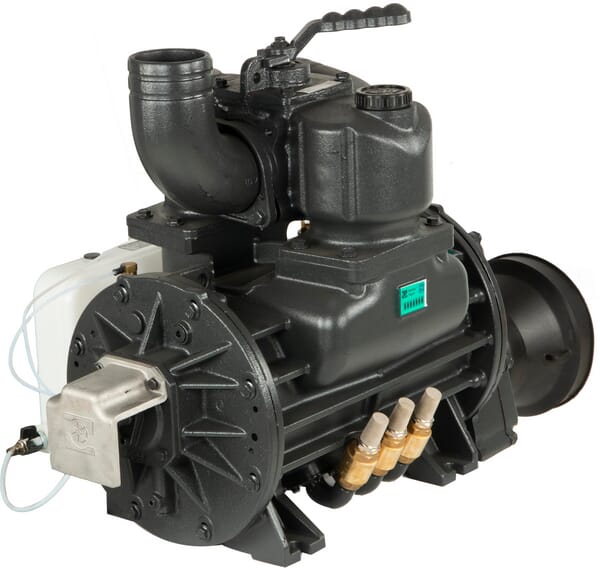

Product details
| Application range | These vacuum pumps with vanes are mainly used in agriculture for filling and emptying slurry tanks |
|---|---|
| Ballast air injection system | Yes |
| Benefits | Minimum repair costs thanks to the unique automatic protection system, As pumps from B.P. are tested, inspected and packaged with the utmost care, trouble-free start-up is 100% guaranteed |
| Consists of | Including PTO shaft cover, Without pressure relief valve (item 0250013) and vacuum valve (item 0155513), The pumps are delivered without lubrication oil (item BP5070) |
| Crash protection system | Yes |
| Depression valve connection diameter | 1-1/2 Inch |
| Details | BALLAST pumps have a crash protection system (for example, this can protect the rotor and the rotor housing if a disc breaks by pushing down the rotor, including flange mounting, so that it is out of the way), BALLAST pumps provide longer running times in vacuum operation, Supplied with heat-resistant "long-life" discs as standard, The pump temperature can be read on the temperature gauge strips, The inspection hole with maximum wear indicator allows the wear on the discs to be checked, Battioni Pagani performs vacuum, compression and lubrication tests on all pumps before they leave the factory, A test report is prepared for each pump by serial number |
| Diameter of hose connection | 100 mm |
| Drive type | PTO 540 rpm |
| Lubrication system type | Automatic |
| Max. relative pressure | 2.5 BAR |
| Max. shaft rotation | 540 r/min |
| Max vacuum | 0.95 BAR |
| Nominal volume flow rate | 16800 l/min |
| Power requirement for max. vacuum | 24 kW |
| Properties | These pumps can generate both positive pressure and vacuum |
| Rotation direction | Counter-clockwise (CCW) |
| Safety valve connection diameter | 2 Inch |
| Shaft diameter | 1-3/8 Inch |
| Technical info | Meaning of the composition of the number:, BALLAST = series, 16000 = type, M = indirect drive, 540 rpm, The BALLAST pumps have automatic lubrication installed as standard, The lubrication is applied by the manufacturer and can not be adjusted without the proper tool, Always check whether the lubrication is actually working when the pump is switched on, Oil to be used for lubricating the vanes: genuine oil from B.P. Oil item number: BP5070, Pumps with indirect drive (M) must be driven anti-clockwise, The direction of rotation is determined when the axle to be driven is aligned with the observer, If, for example, a pump is driven directly by a tractor unit, it must be driven anti-clockwise |
| Unit | Each |
| Vane type | Long life |
| Weight | 245 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 245000 g |

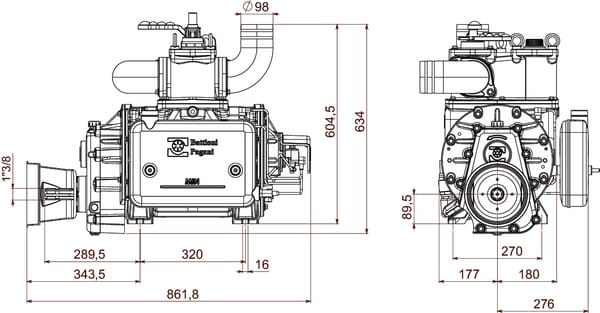

| Dimensions | 839 × 800 × 600 mm |
| Dangerous goods | No |
You might also like
BPA000234014
Battioni Pagani Self-locking nut BR-EVO 260 BREVO86
£7.39 excl.
£8.87 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000130358
Battioni Pagani Air filter - one way valve, 3/4" male thread 5080005004
£29.25 excl.
£35.10 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000152709

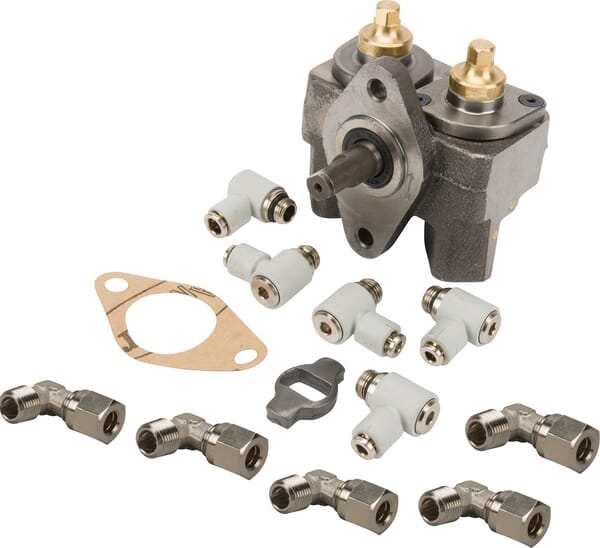

Battioni Pagani Oil pump left complete 6080200078
£696.33 excl.
£835.60 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000309830
Battioni Pagani Reducing fitting LB12
£6.57 excl.
£7.88 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000101393
Battioni Pagani Air pre-cleaner 40027
£186.87 excl.
£224.24 incl.
In stock
Expected to ship on Friday 18 September
BPA000235451

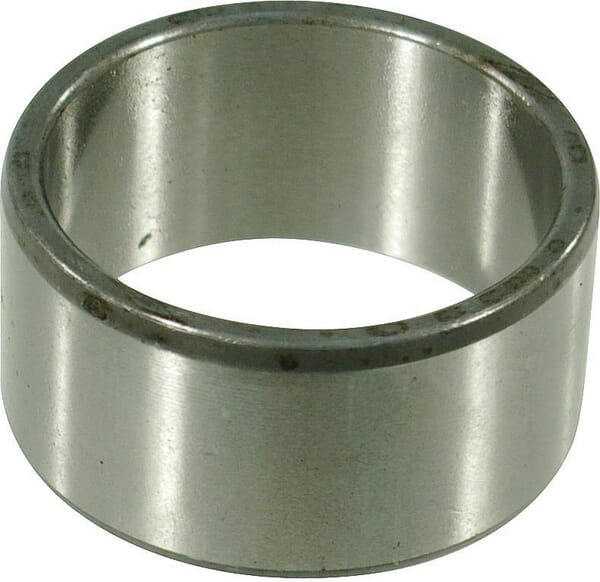

Battioni Pagani Bush 70x60x35 B.P B34DF
